7.6 Interface description
IFP Basic
66 Operating Instructions, 03/2019, A5E46178354 - AB
7.6.3

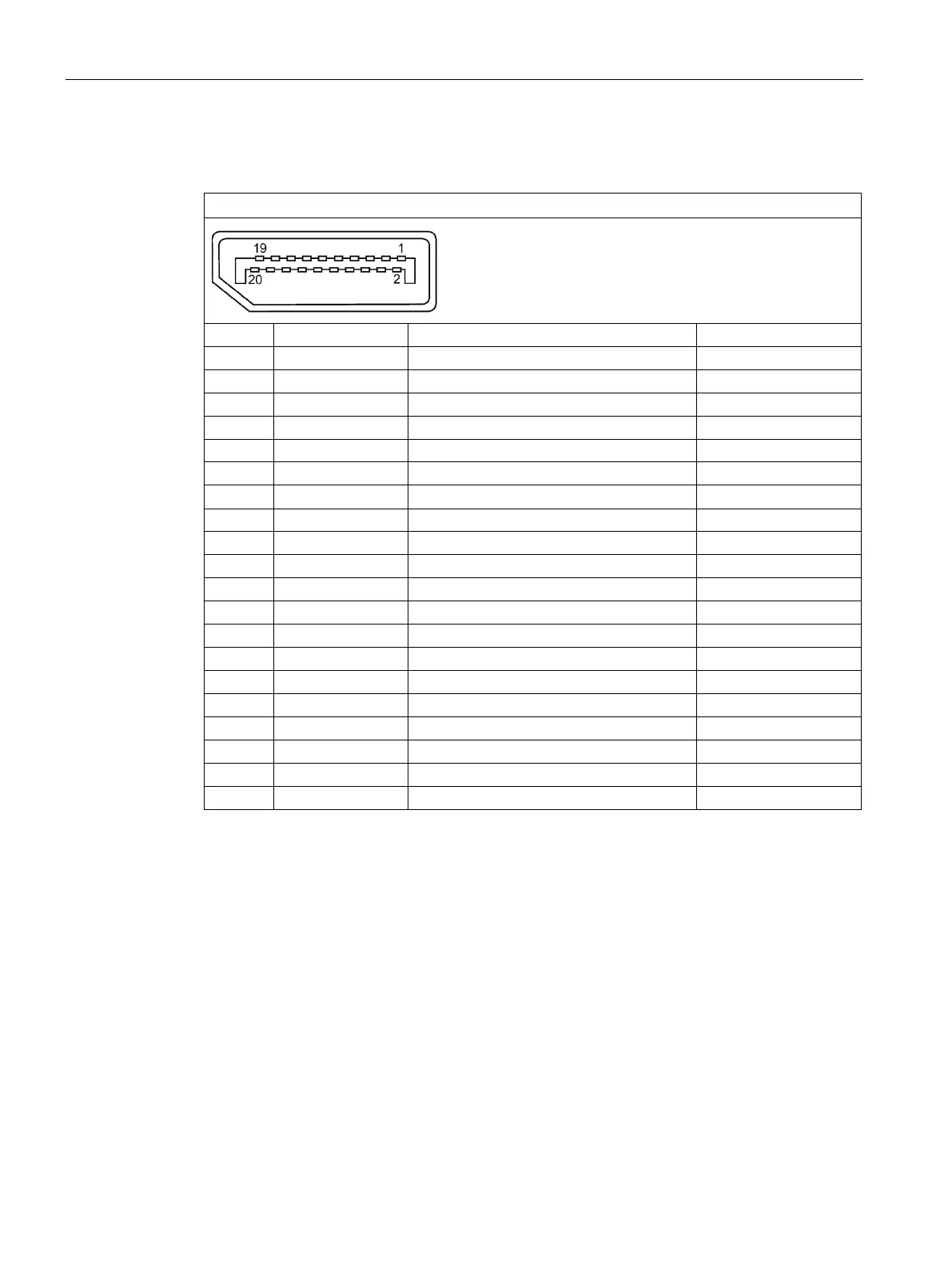

DisplayPort
DisplayPort interface
Pin no.
Abbreviation
Meaning
Input/output
1
ML_Lane3-
DP data 3-
Input
2
GND
Ground
-
3
ML_Lane3+
DP data 3+
Input
4
ML_Lane2-
DP data 2-
Input
5
GND
Ground
-
6
ML_Lane2+
DP data 2+
Input
7 ML_Lane1- DP data 1- Input
8
GND
Ground
-
9
ML_Lane1+
DP data 1+
Input
10
ML_Lane0-
DP data 0-
Input
11
GND
Ground
-
12
ML_Lane0+
DP data 0+
Input
13
CONFIG1
CONFIG1
-
14
CONFIG2
CONFIG2
-
15
AUX_CH+
Auxiliary channel+
Bidirectional
16
GND
Ground
-
17
AUX_CH-
Auxiliary channel-
Bidirectional
18
HPD
Hot Plug Detect
output
19
GND
Ground
-
20
DP_PWR
+3.3 V (fused)
power out
