Installing and connecting the device
3.2 Installing the IFP Basic
IFP Basic
26 Operating Instructions, 03/2019, A5E46178354 - AB
Secure with mounting clips
Positions of the mounting clips
To achieve the degree of protection for the device, the positions for the mounting clips
shown below must be adhered to.
The positions of the mounting clips are marked by stamps on the cutouts. Fit the mounting
clips in all the stamped cutouts.

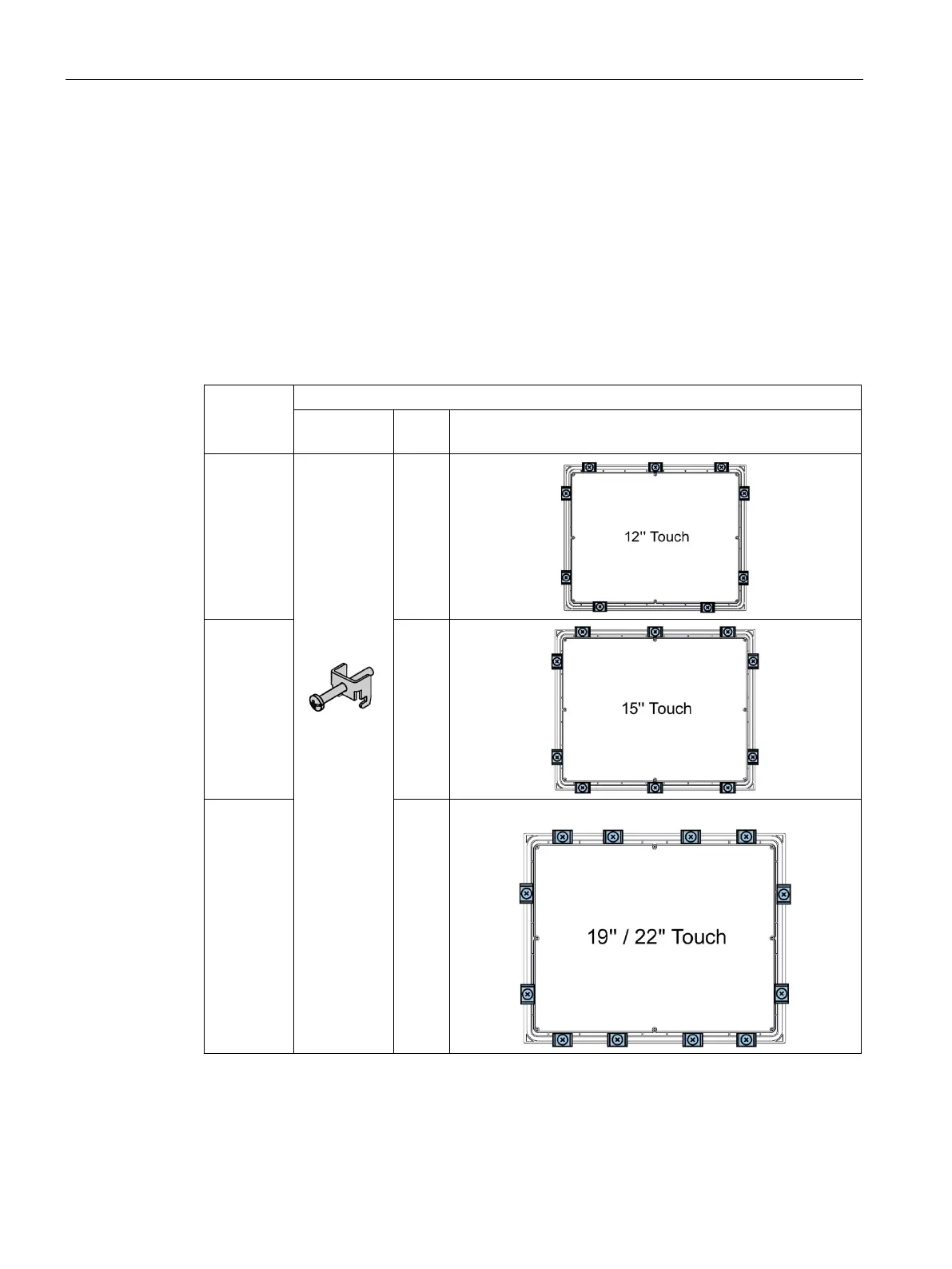

The following table shows the type, number, and position of the mounting clips needed for
the respective devices.
12" display
9
15" display 10
19" display
22" display
12
