Installing and connecting the device
3.2 Installing the IFP Basic
IFP Basic
Operating Instructions, 03/2019, A5E46178354 - AB
27
● All packaging components and protective films should be removed from the device.
● To install the panel, you need the mounting clips from the accessories kit.

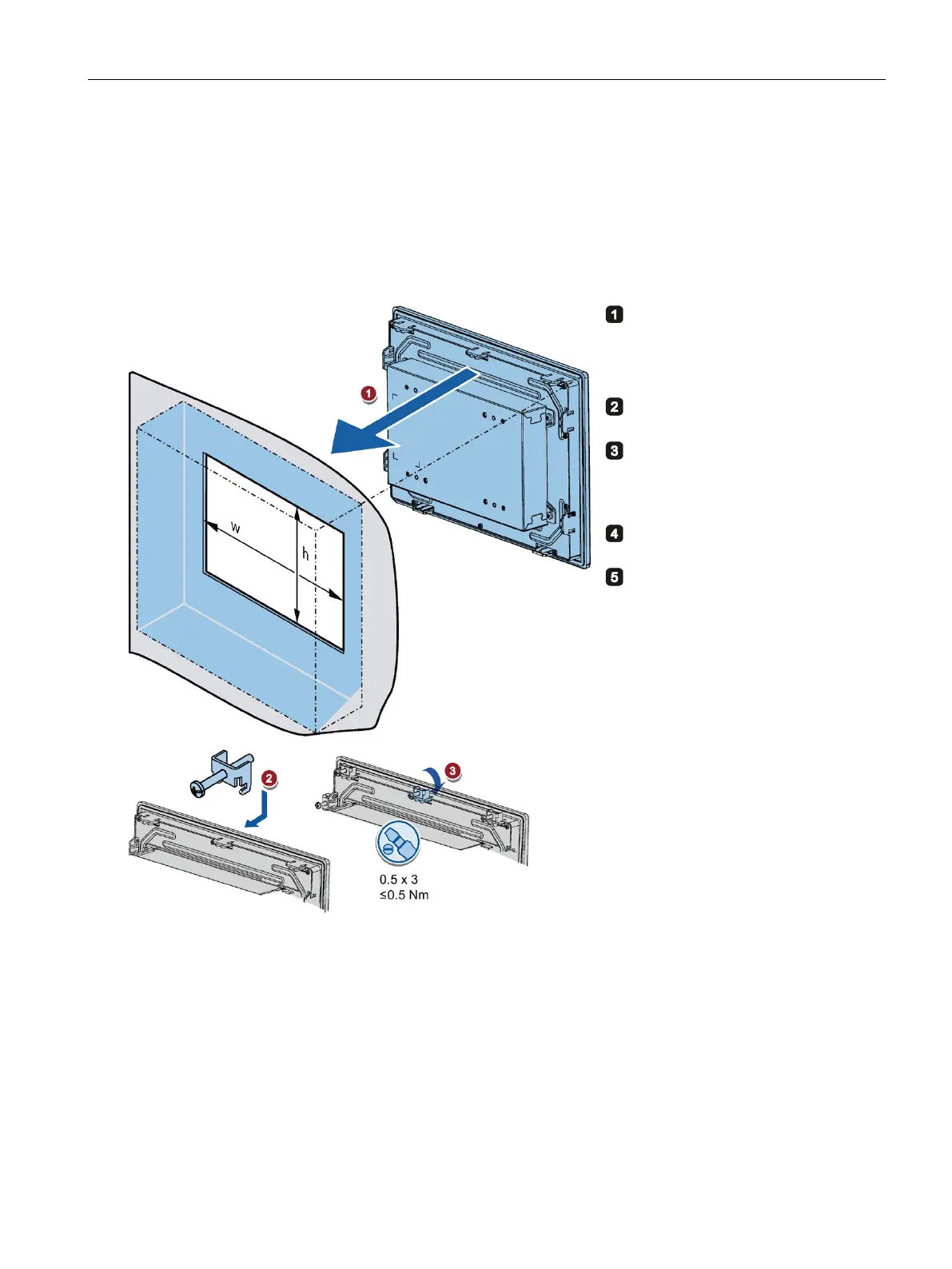

Insert the panel device into the
mounting cutout from the front.
Insert a mounting clip into the
cutout provided on the device.
Tighten the threaded pin to secure
the mounting clip. The threaded
pins have a maximum tightening
torque of 0.5 Nm.
Repeat steps 2 and 3 for all
mounting clips.
Check the fit of the mounting seal.
The device is mounted and the relevant degree of protection is ensured at the front.
