Installing and connecting the device
3.1 Preparing for installation
IFP Basic
24 Operating Instructions, 03/2019, A5E46178354 - AB
The following clearances are required around the device to ensure adequate self-ventilation:
● At least 50 mm to the right and left of the mounting cutout (in x direction) to allow for
insertion of the mounting clips during installation
● At least 50 mm above and below the mounting cutout (in y direction) for ventilation
● At least 10 mm behind the rear panel of the device (in z direction)

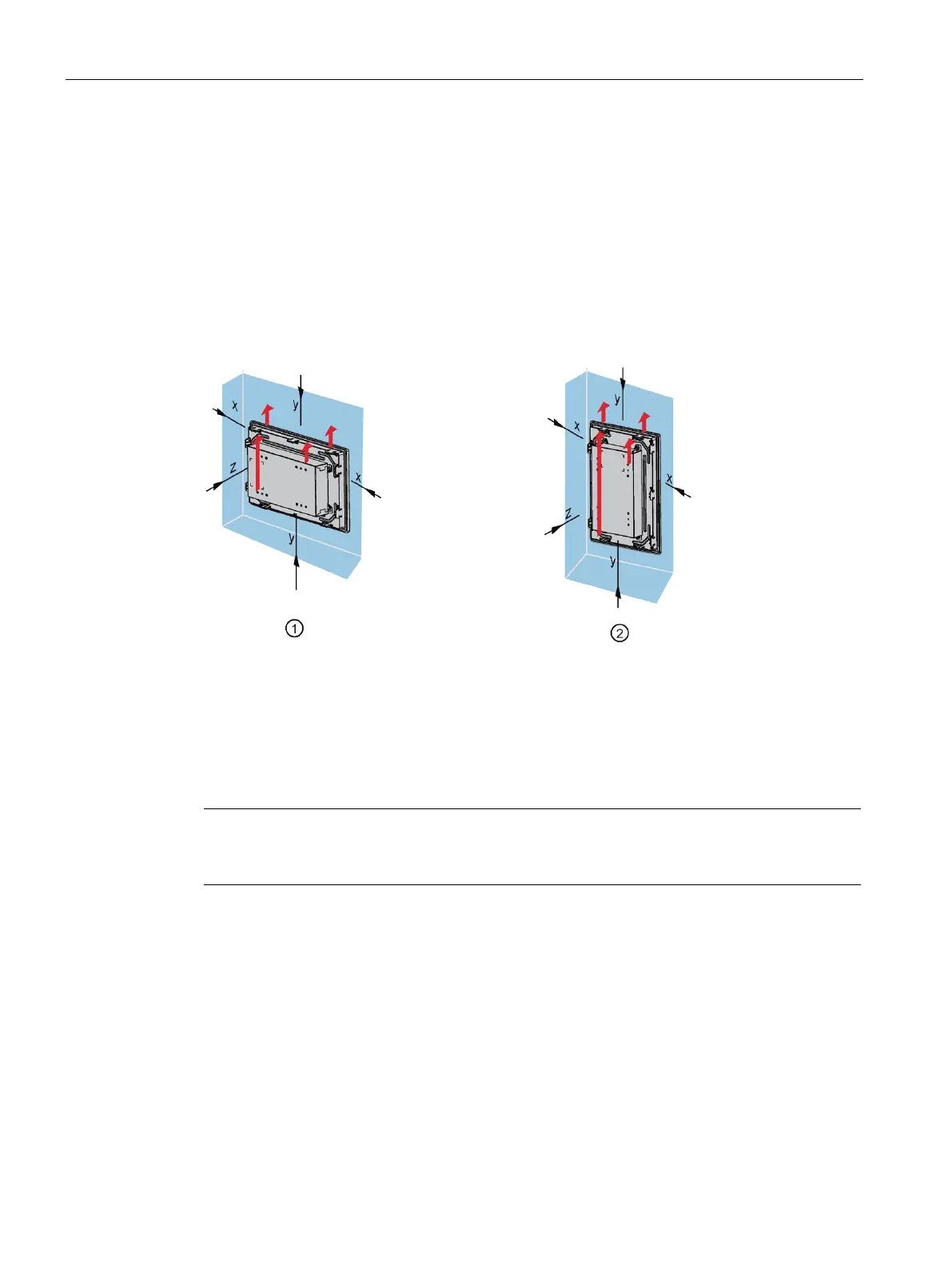

The figure below shows the clearances required with horizontal and vertical installation of the
device:
Clearance for horizontal installation (all devices)
Clearance for vertical installation (monitor and touch versions only)
Note
Ensure that the maximum ambient temperature is not exceeded when mounting the device
in a cabinet and especially in a closed enclosure.
