Siemens SIMATIC IFP Basic Series

Technical information
7.6 Interface description
IFP Basic
Operating Instructions, 03/2019, A5E46178354 - AB
67
7.6.4

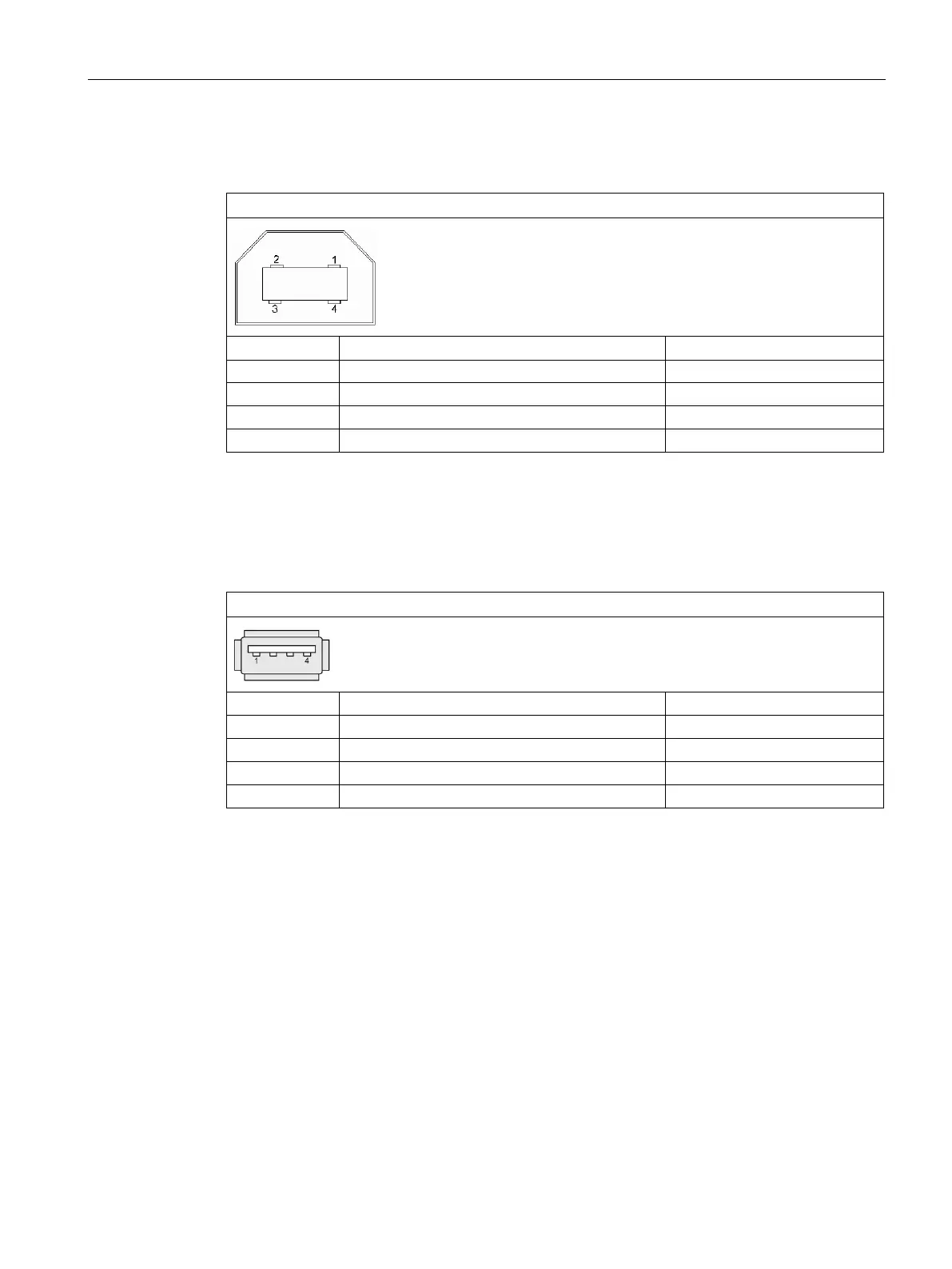

USB interface, Type B
USB port, Type B
Pin no.
Abbreviation
Signal
1
VCC
+ 5 V (fused)
2
- Data
Data channel
3
+ Data
Data channel
4
GND
Ground
7.6.5
USB interface, Type A
USB port
Pin No.
Abbreviation
Signal
1
VCC
+ 5 V (fused)
2
- Data
Data channel
3
+ Data
Data channel
4
GND
Ground
