Product description
1.4 External design of the device
SIMATIC IPC BX-39A
16 Operating Instructions, 07/2022, A5E50715883-AA

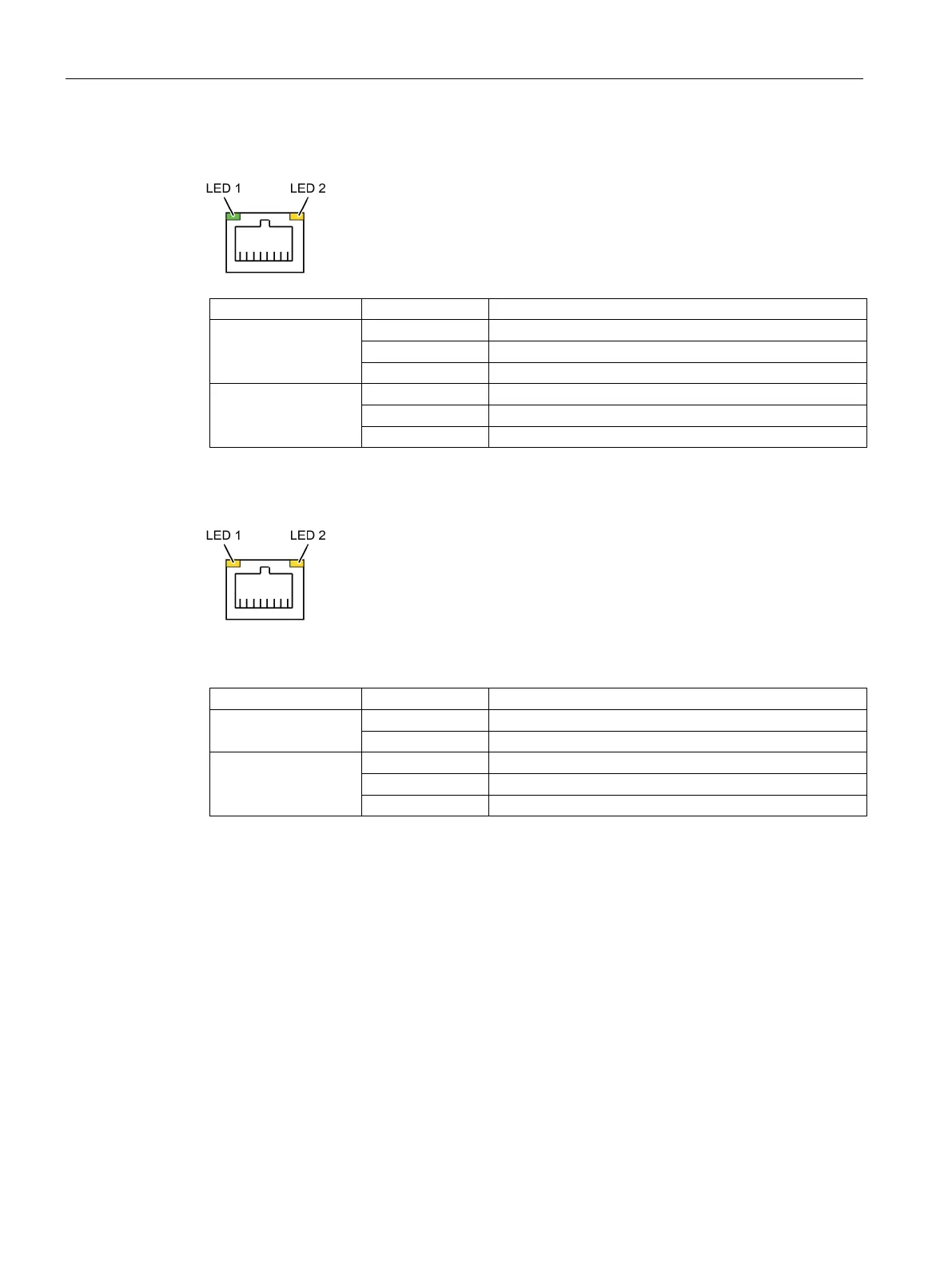

Status indicator Ethernet interfaces X1 P1 and X2 P1
Status display
Status
Meaning of the status
LED 1
Off
10 Mbps
Lit green
100 Mbps
Lit orange
1000 Mbps
LED 2
Off
No connection
Lit orange
Connection exists
Lit orange
Activity
Status indicator Ethernet interfaces X3 P1 and X4 P1
Figure 1-1 Interface_Ethernet_RJ45+LED displays2
Status display
Status
Meaning of the status
LED 1
Off
10 Mbps or 100 Mbps
Lit orange
1000 Mbps
LED 2
Off
No connection
Lit orange
Connection exists
Lit orange
Activity
