Siemens SIMATIC IPC BX-39A User Manual

Installing and connecting the device
3.2 Installing the device
SIMATIC IPC BX-39A
Operating Instructions, 07/2022, A5E50715883-AA
35
3.2.3.2 Mounting on DIN rails
Requirement
• DIN rail, 35 mm standard profile
The DIN rail is installed at the installation site.
Note
Ensure that the wall or ceiling can hold four times the total weight of the device including
DIN profile rail and additional expansion cards. See Securing device (Page 32).
Procedure

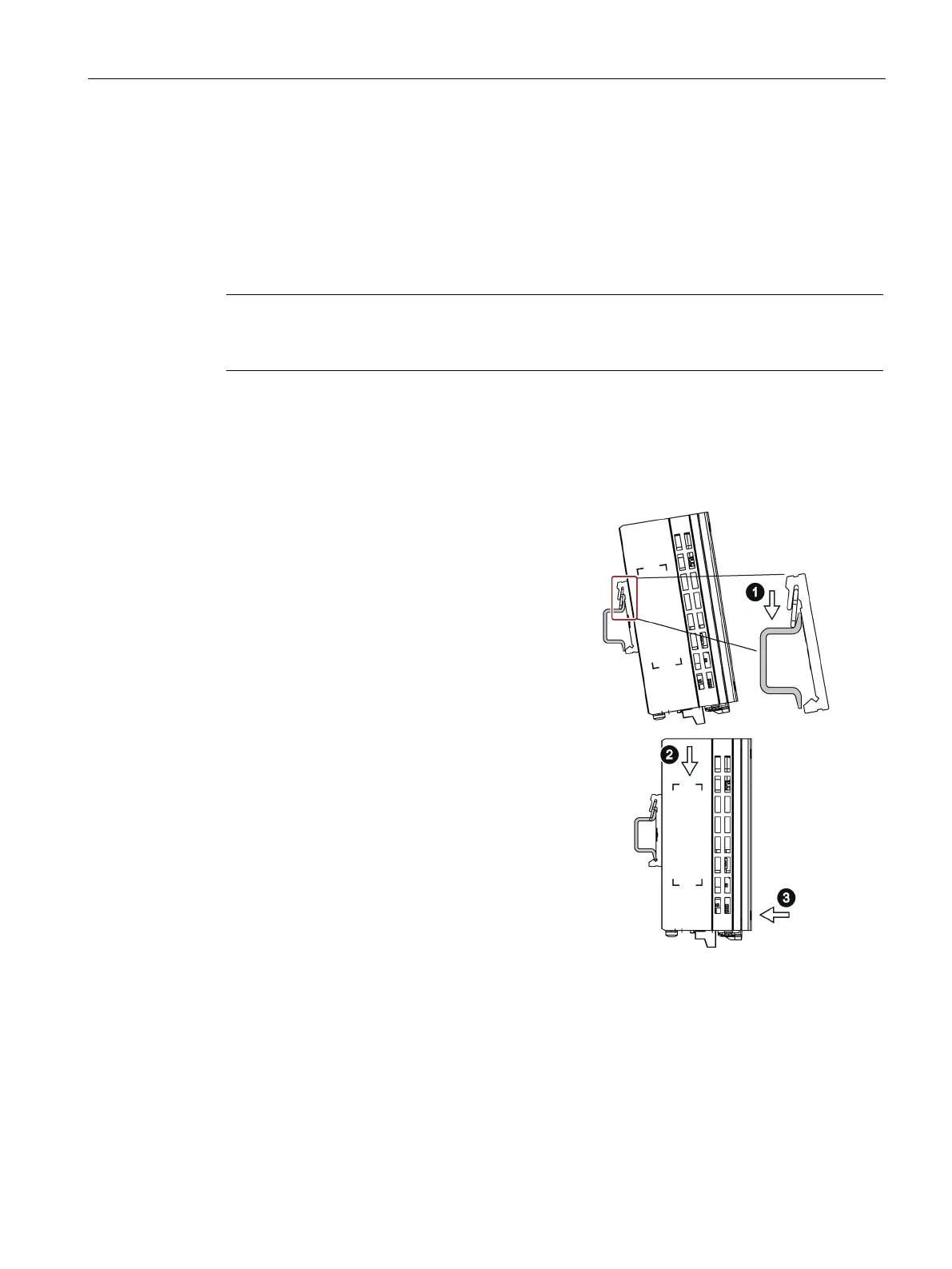

Installation
1.
Place the device with the DIN rail clip on
the upper edge of the DIN rail at the posi-
tion shown.
2.
Push down the device. Once the DIN rail
clip is over the bottom edge of the DIN
rail, push the device towards the DIN rail.
You will hear the device click into place.
Removal
1. Push down the device until it is released by the rail clips.
2. Swing the device out of the DIN rail.
3. Lift the device up and off.
