Siemens SIMATIC IPC BX-39A - Mounting onto DIN rail

Installing and connecting the device
3.2 Installing the device
SIMATIC IPC BX-39A
34 Operating Instructions, 07/2022, A5E50715883-AA
3.2.3 Mounting onto DIN rail
3.2.3.1 Attaching the DIN rail bracket
Before you install the device onto a DIN rail, attach the DIN rail clip to the device.
The fasteners and screws required are supplied with the device for the selected mounting
option (as specified in order number).
Requirements
• 1 DIN rail clip
• 4 screws
• 1 T20 screwdriver
Procedure
1.

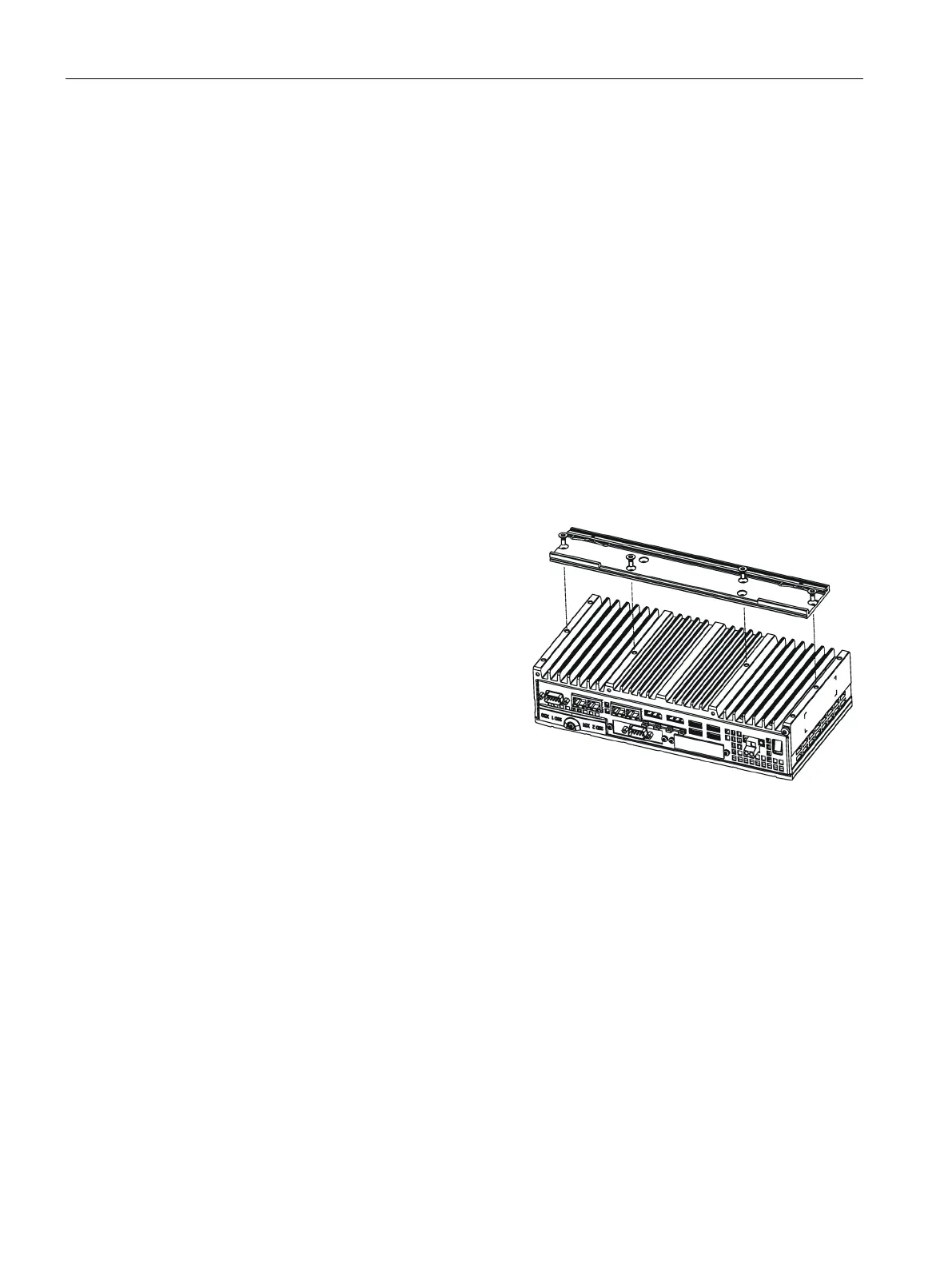

Secure the DIN rail bracket with four
screws with a tightening torque of
2.5
Nm.
