Expanding and assigning parameters to the device
6.2 Open device with expansion slots
SIMATIC IPC BX-39A
56 Operating Instructions, 07/2022, A5E50715883-AA

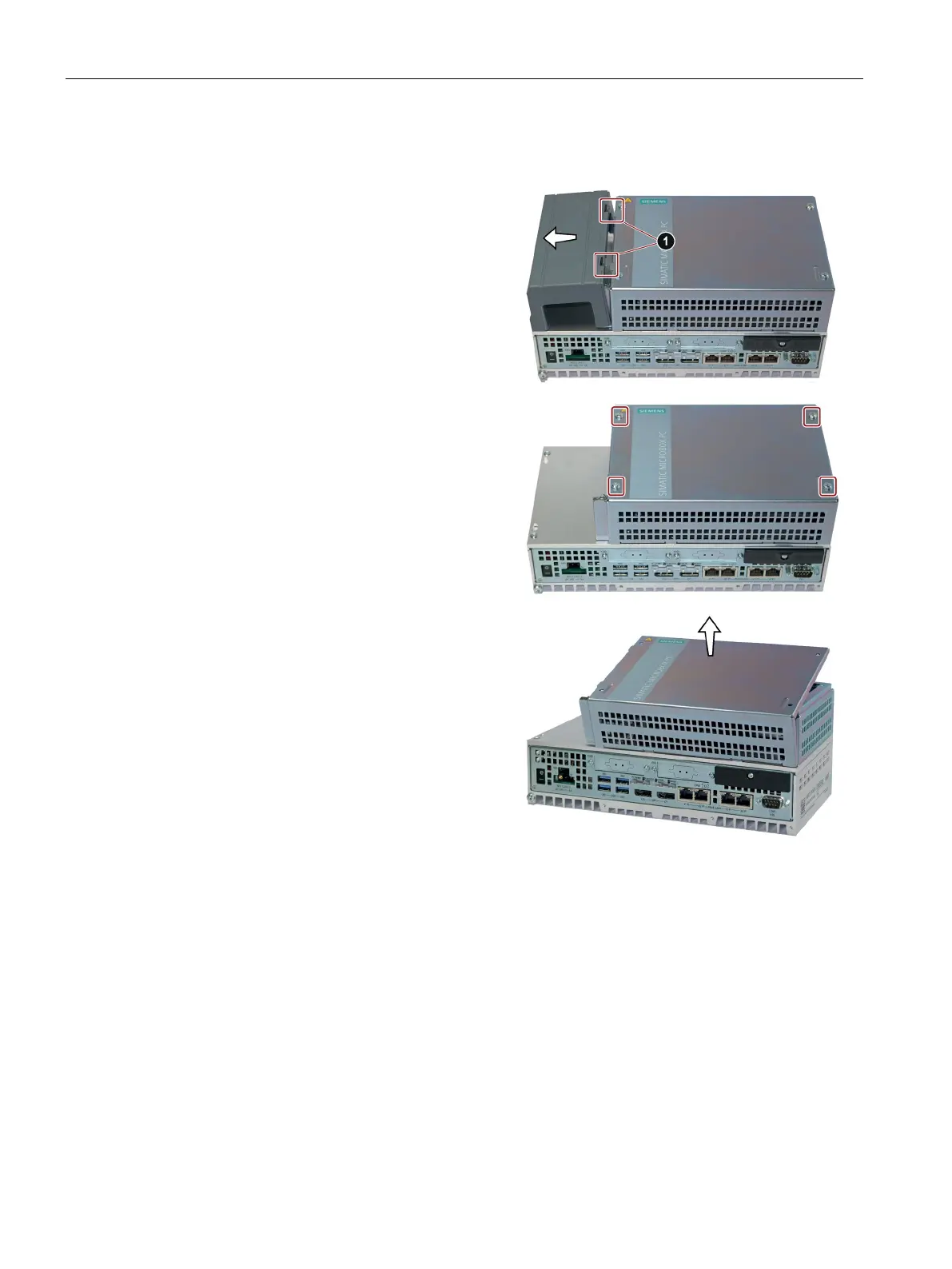

Procedure
1.
Open the cover by pushing the indicated
latching hooks in the direction of the ar-
row. Open the cover in the direction of
the arrow and lift it off.
1.
Remove the marked screws.
2.
Lift off the front panel in the direction of
the arrow.
3.
Put down the front panel.
Close the device in reverse order.
