Technical specifications
8.3 Dimension drawings
SIMATIC IPC627D/827D
Operating Instructions, 09/2014, A5E32990859-AB
109
8.3.2

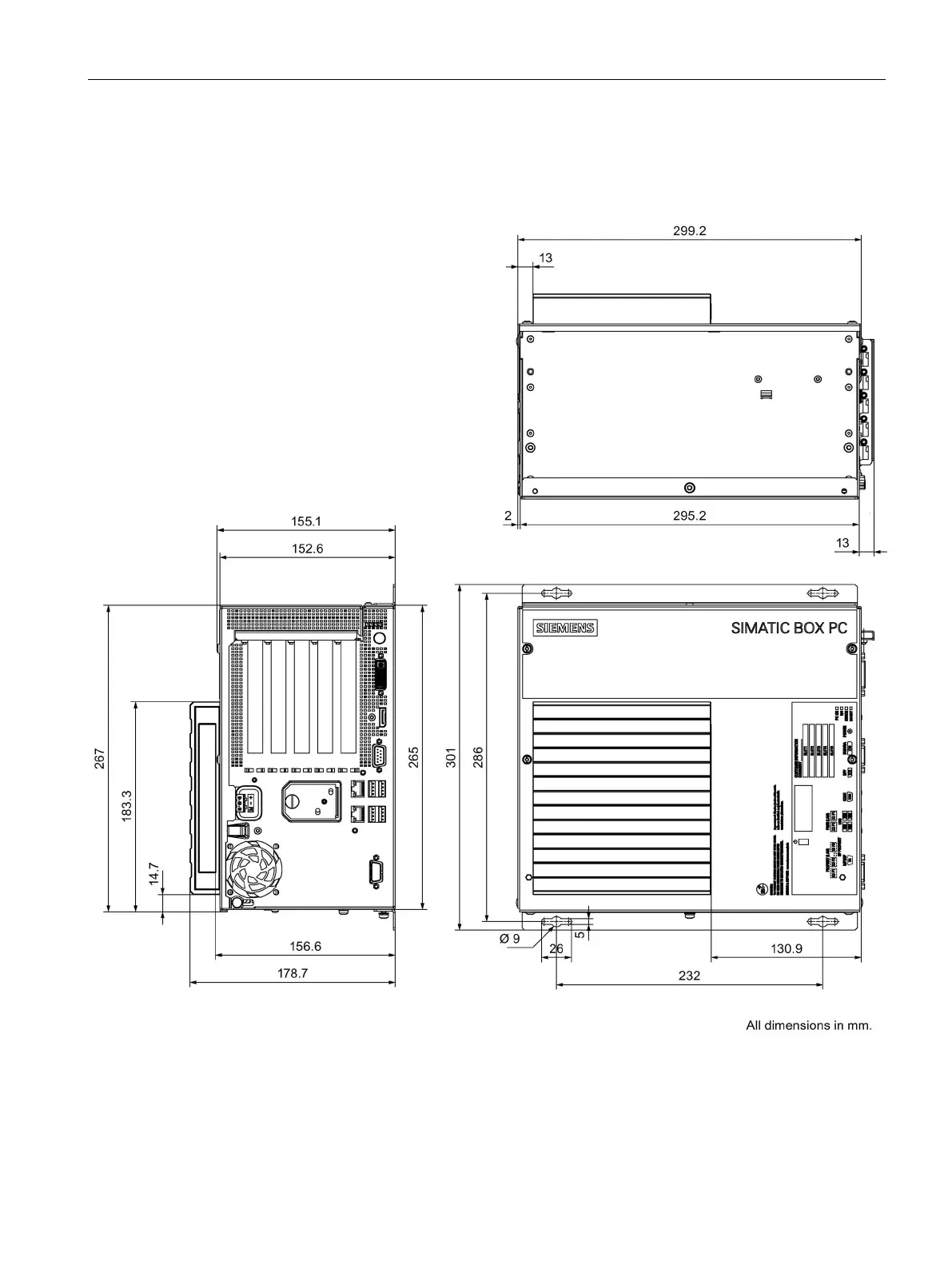

Dimension drawings of SIMATIC IPC827D
Dimension drawing for mounting with angle brackets
