Siemens SIMATIC IPC627D - Dimensional Drawing for the Installation of Expansion Modules

Technical specifications
8.3 Dimension drawings
SIMATIC IPC627D/827D
112 Operating Instructions, 09/2014, A5E32990859-AB
Dimension drawing for installation with the vertical mounting kit for PC port access from the
front
8.3.3

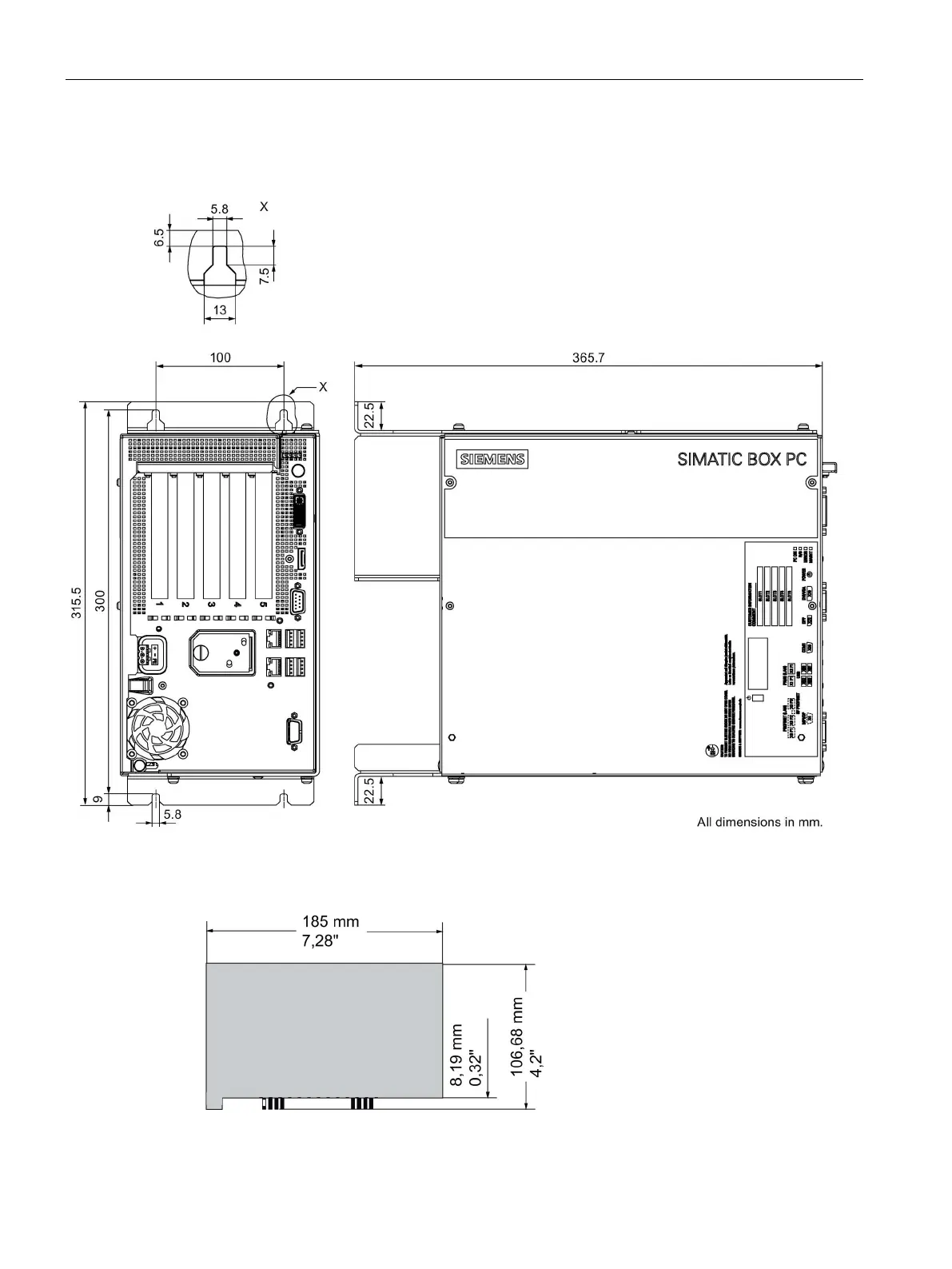

Dimensional drawing for the installation of expansion modules
Short PCI or PCIe expansion card
