Network and system integration
4.8 System configuration with WinCC flexible / HTML browser
SIMATIC MV500
Operating Instructions, 05/2019, C79000-G8976-C494-02
61
4.8 System configuration with WinCC flexible / HTML browser
Optical sensor or light barrier

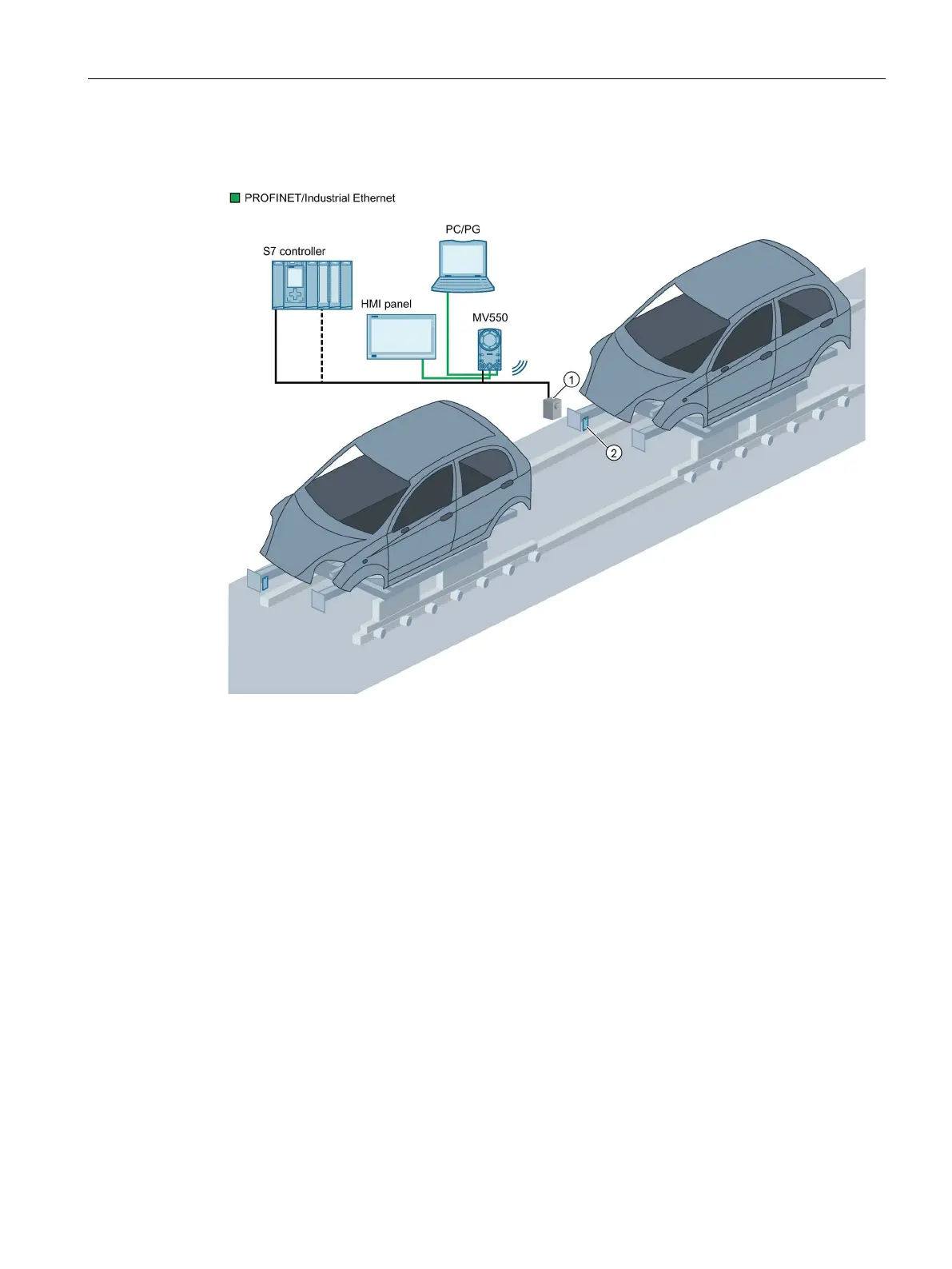

Figure 4-7 Example: System configuration with WinCC flexible or HTML browser
System properties - WinCC flexible
● Visualization takes place via the Web pages of the optical reader, for WinCC flexible on a
PC/PG with WinCC flexible or an HMI panel.
● The results of the optical reader are obtained and displayed by WinCC flexible via a
connection to the S7 controller.
● A PC/programming device is connected via Ethernet to allow adjustment of the device.
