Cellular Modem Modules
6.4RUGGEDCOM RX1500PN LM W22
6.4 RUGGEDCOM RX1500PN LM W22
The RUGGEDCOM RX1500PN LM W22 module offers EVDO Rev A capabilities for
wireless remote access to 3G (third generation) networks in North America (AT&T),
Europe and Australia. It supports dual primary antennas and optional diversity
antennas to improve radio signal strength.
Description
1
4
3
2
5
3
1
RX DIV 1 Port
2
RX DIV 2 Port
3
LINK/ACT LED
4
ANT1 Port
5
ANT2 Port

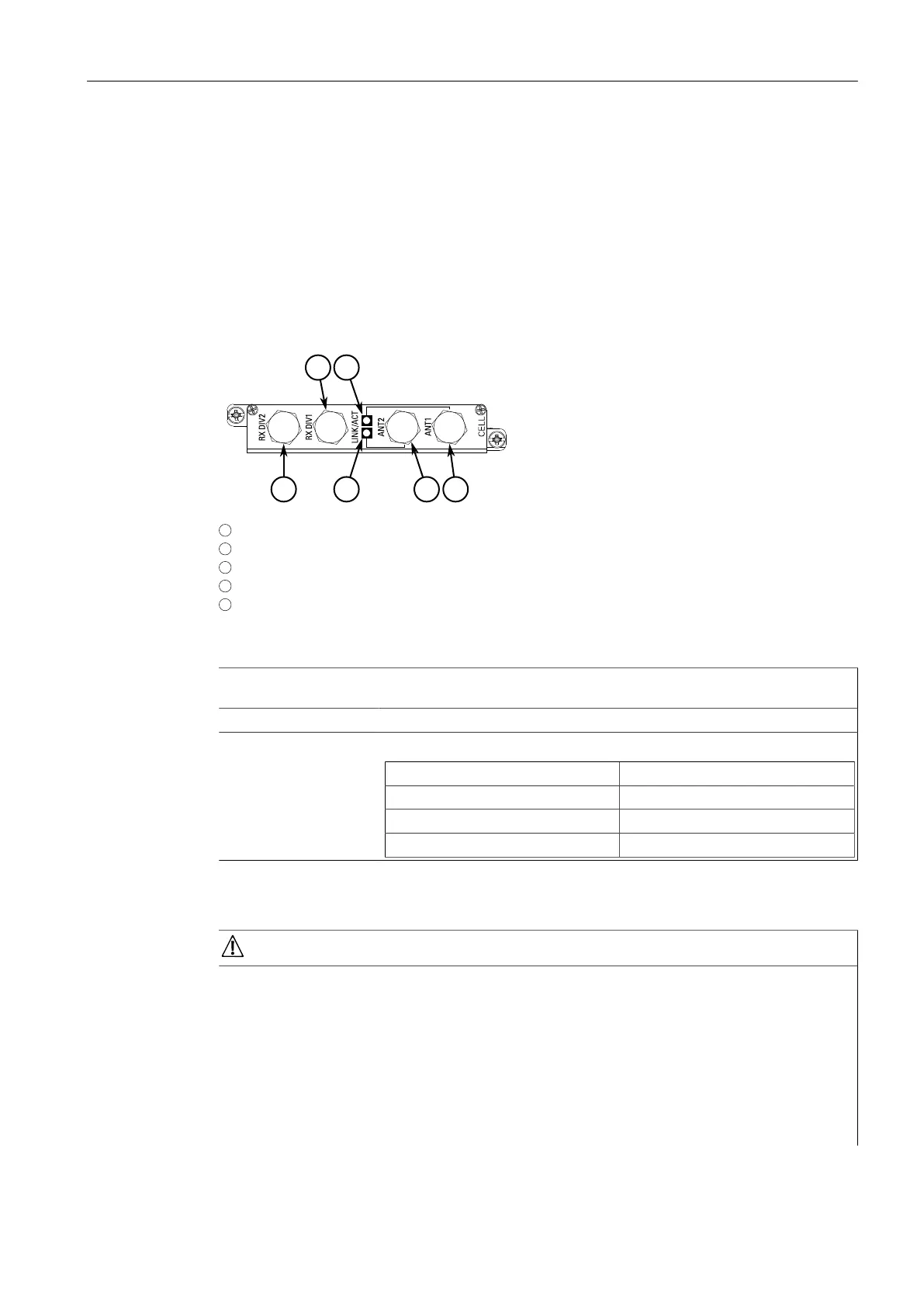

Figure6.10 RUGGEDCOM RX1500PN LM W22
RX DIV 1/RX DIV 2
Ports
Ports for the diversity (secondary) antennas.
ANT1/ANT2 Ports Ports for the primary antennas.
LINK/ACT LED Port ANT1 features a dedicated LED that indicates its link/activity state.
State Description
Green (Solid) Link established
Green (Blinking) Activity
Off No link detected
General Safety Notices
WARNING
Radio interference hazard – risk of death, serious personal injury or equipment
damage.
Do not operate the cellular modem in the following areas:
• Areas where explosives are actively used
• In explosive atmospheres, such as refueling stations, fuel depots, chemical
plants, underground mining operations, etc.
• Near medical or life support equipment or devices
