Cellular Modem Modules
6.5RUGGEDCOM RX1500PN LM W32
6.5 RUGGEDCOM RX1500PN LM W32
The RUGGEDCOM RX1500PN LM W32 module offers GSM/EDGE/HSPA+ and EVDO
Rev A capabilities for wireless remote access to the 3G (third generation) networks
in North America(AT&T and Verizon). It supports dual primary antennas and optional
diversity antennas to improve radio signal strength.
Description
1
4
3
2
5
3
1
RX DIV 1 Port (GSM/EDGE/HSPA+)
2
RX DIV 2 Port (EVDO Rev A)
3
LINK/ACT LED
4
ANT1 Port (GSM/EDGE/HSPA+)
5
ANT2 Port (EVDO Rev A)

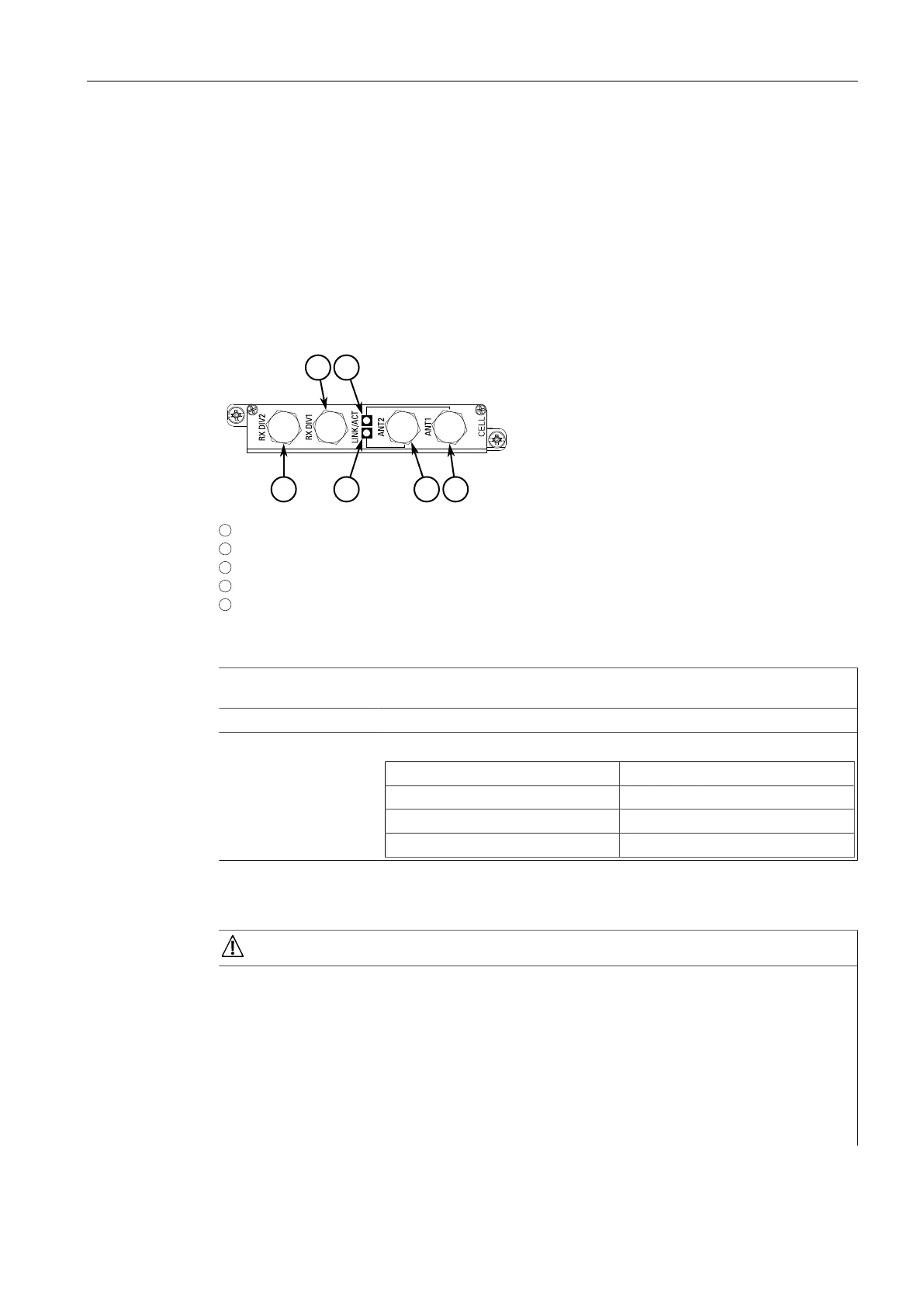

Figure6.13 RUGGEDCOM RX1500PN LM W32
RX DIV 1/RX DIV 2
Ports
Ports for the GSM/EDGE/HSPA+ and EVDO Rev A diversity (secondary)
antennas.
ANT1/ANT2 Ports Ports for the primary and diversity (secondary) antennas.
LINK/ACT LED Port ANT1 features a dedicated LED that indicates its link/activity state.
State Description
Green (Solid) Link established
Green (Blinking) Activity
Off No link detected
General Safety Notices
WARNING
Radio interference hazard – risk of death, serious personal injury or equipment
damage.
Do not operate the cellular modem in the following areas:
• Areas where explosives are actively used
• In explosive atmospheres, such as refueling stations, fuel depots, chemical
plants, underground mining operations, etc.
• Near medical or life support equipment or devices
