4.6RUGGEDCOM RX1500PN LM FX50
4.6 RUGGEDCOM RX1500PN LM FX50
The RUGGEDCOM RX1500PN LM FX50 module features sockets for up to four Small
Form-factor Pluggable (SFP) transceivers.
Description
1
2
1
SFP Transceiver Sockets
2
Port LED

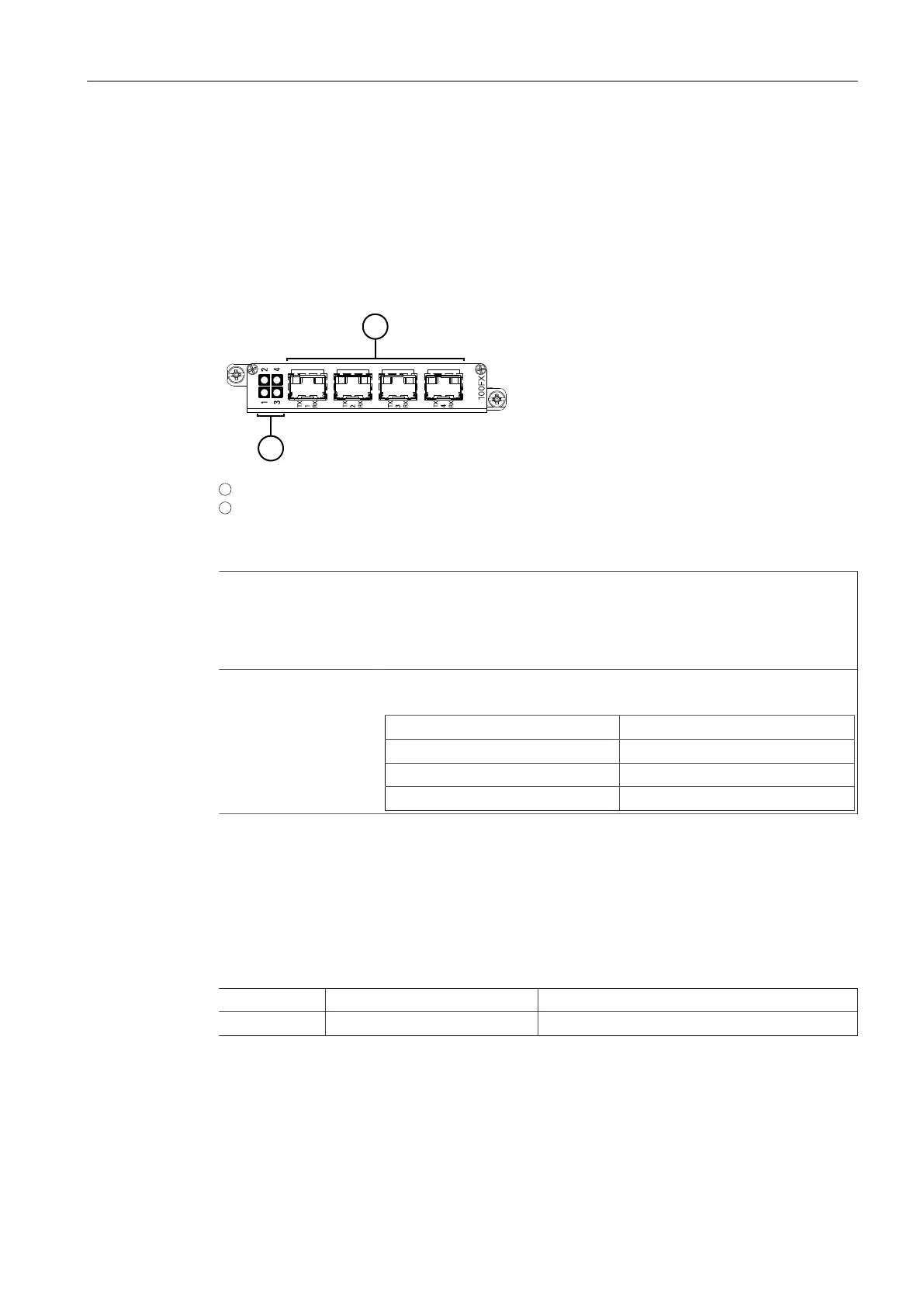

Figure4.6 RUGGEDCOM RX1500PN LM 6FX50
SFP Transceiver
Sockets
Sockets available for up to two SFP transceivers.
For information about which SFP transceivers are compatible with
this module, as well as instructions for ordering and installation/
removal, refer to the RUGGEDCOM SFP Transceiver Catalog [https://
support.industry.siemens.com/cs/ca/en/view/109482309].
Port LEDs Each transceiver socket features a dedicated LED that indicates the link/
activity state of the associated SFP transceiver.
State Description
Green (Solid) Link established
Green (Blinking) Activity
Off No link detected
Installing the Module
For information about installing this module, refer to the Installation Manual for the
host device.
Technical Specifications
General Power Consumption 5 W
Environment Operating Temperature Dependent on the installed SFP transceiver.
Certification
This module has been certified to comply with the requirements of the following
standards.
