3.10RUGGEDCOM RX1500PN LM 6TX01
3.10 RUGGEDCOM RX1500PN LM 6TX01
The RUGGEDCOM RX1500PN LM 6TX01 module features six 10/100Base-TX copper
RJ45 Ethernet ports.
Description
1
2
1
Ethernet Ports
2
Port LEDs

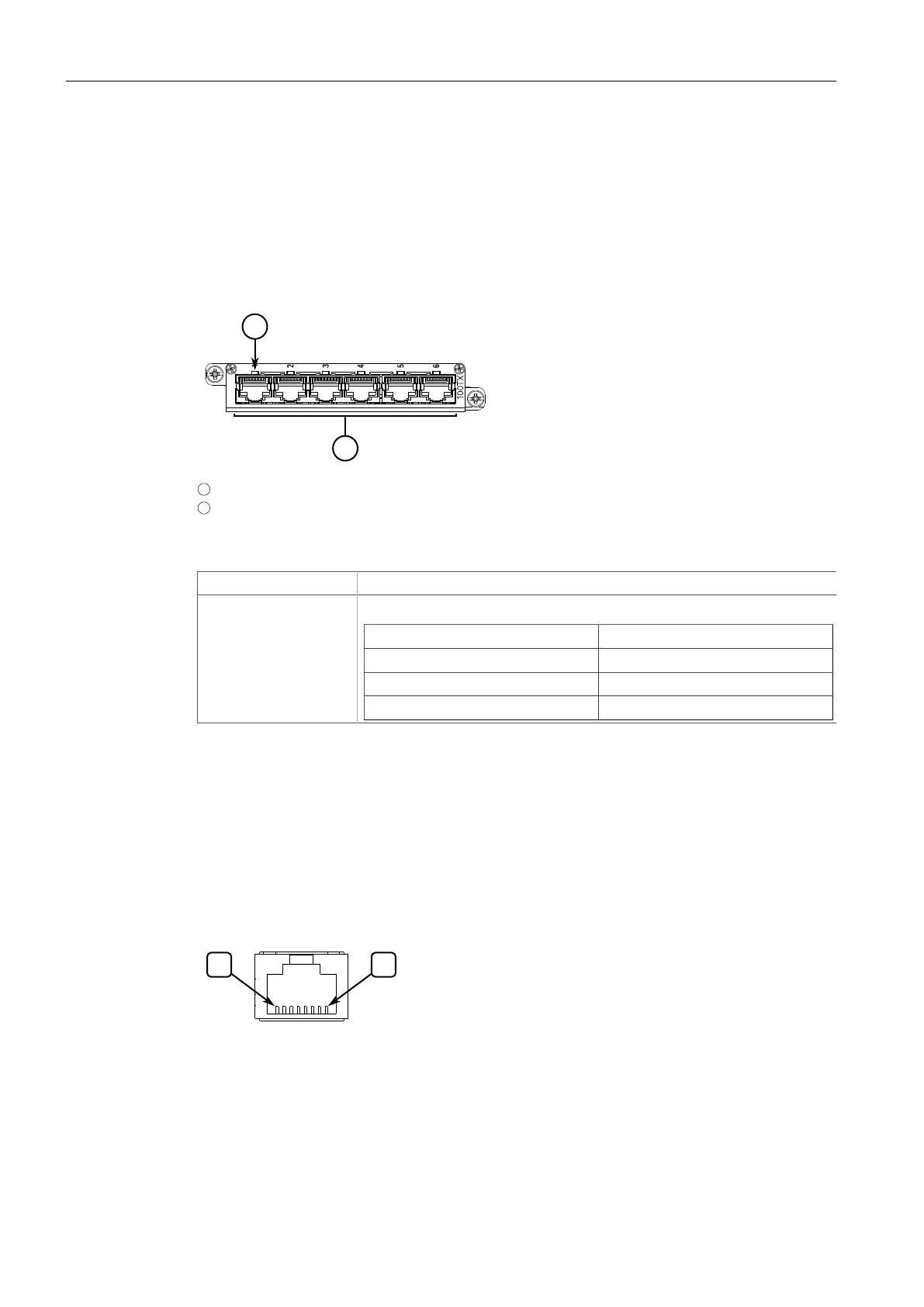

Figure3.19 RUGGEDCOM RX1500PN LM 6TX01
Ethernet Ports Fixed 10/100Base-TX copper RJ45 Ethernet ports.
Port LEDs Each port features a dedicated LED that indicates its link/activity state.
State Description
Green (Solid) Link established
Green (Blinking) Activity
Off No link detected
Installing the Module
For information about installing this module, refer to the Installation Manual for the
host device.
Pin-Out Description
The following are the pin-out descriptions for the RJ45 ports:
1
8
Figure3.20 RJ45 Ethernet Port Pin Configuration
RUGGEDCOM Modules
Catalog, 07/2021, C79000-G8976-1320-16
65
