3.9RUGGEDCOM RX1500PN M12 4TX04B
3.9 RUGGEDCOM RX1500PN M12 4TX04B
The RUGGEDCOM RX1500PN M12 4TX04B module features four 10/100Base-TX
copper M12 (4-pin, D-coded) Ethernet ports. Two of the available ports can be
utilized as bypass ports to protect the network from power disruptions.
Description
1
1 1
1
2
2
2 2
1
M12 Port
2
M12 Port with Controlled Bypass
3
Port LED

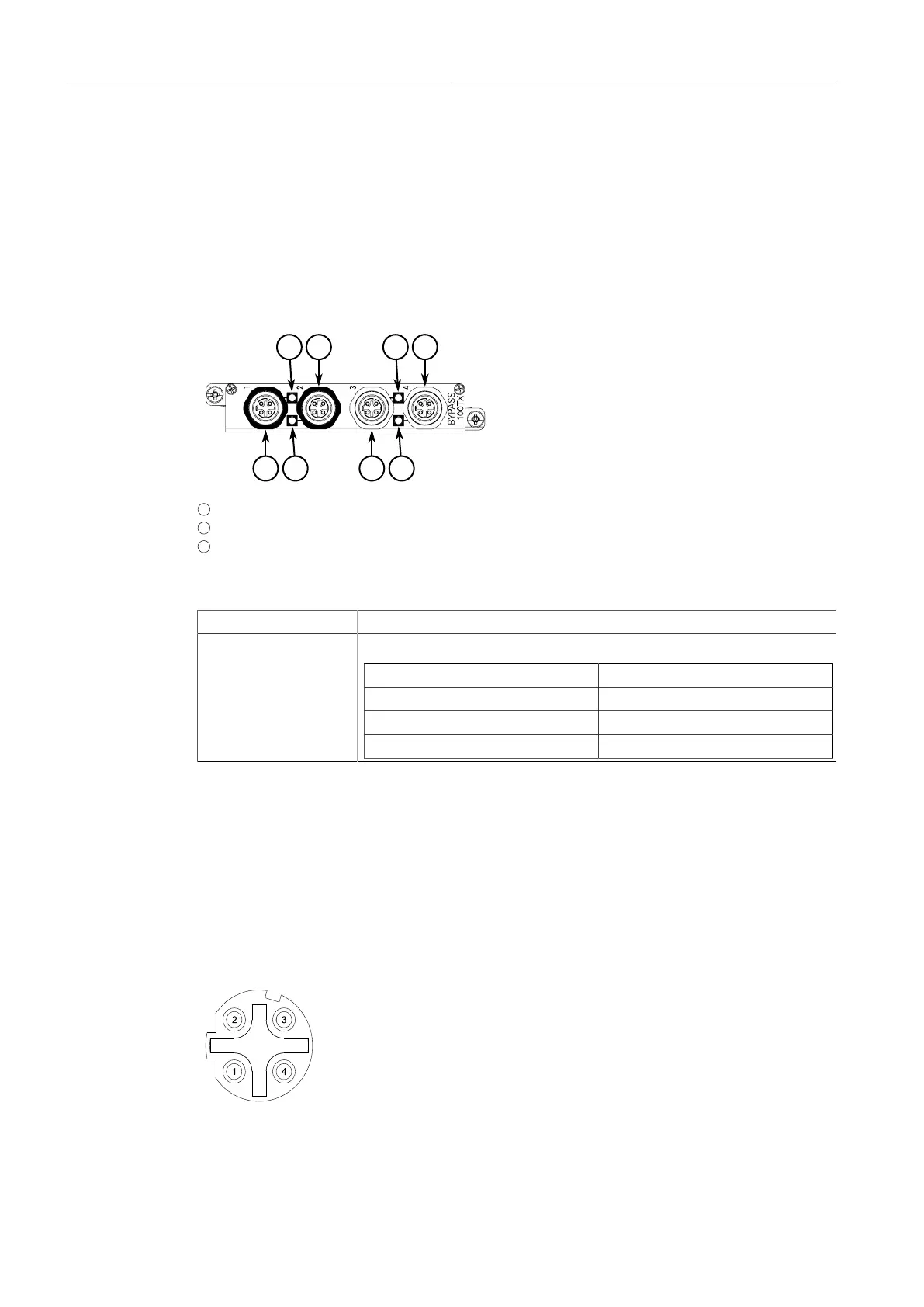

Figure3.17 RUGGEDCOM RX1500PN M12 4TX04B
Ethernet Ports Fixed 10/100Base-TX copper M12 Ethernet ports.
Port LEDs Each port features a dedicated LED that indicates its link/activity state.
State Description
Green (Solid) Link established
Green (Blinking) Activity
Off No link detected
Installing the Module
For information about installing this module, refer to the Installation Manual for the
host device.
Pin-Out Description
The following are the pin-out descriptions for the M12 ports:
Figure3.18 4-Pin M12 D-Coded Ethernet Port Pin Configuration
RUGGEDCOM Modules
Catalog, 07/2021, C79000-G8976-1320-16
