4.5RUGGEDCOM RX1500PN LM FG51
4.5 RUGGEDCOM RX1500PN LM FG51
The RUGGEDCOM RX1500PN LM FG51 module features two 10/100/1000Base-SX
fiber optic Ethernet ports.
Note
When connecting cables, make sure the Transmit (Tx) and Receive (Rx) connections
of each port are properly connected and matched to establish a proper link.
Description
1
2
1
Ethernet Ports
2
Port LED

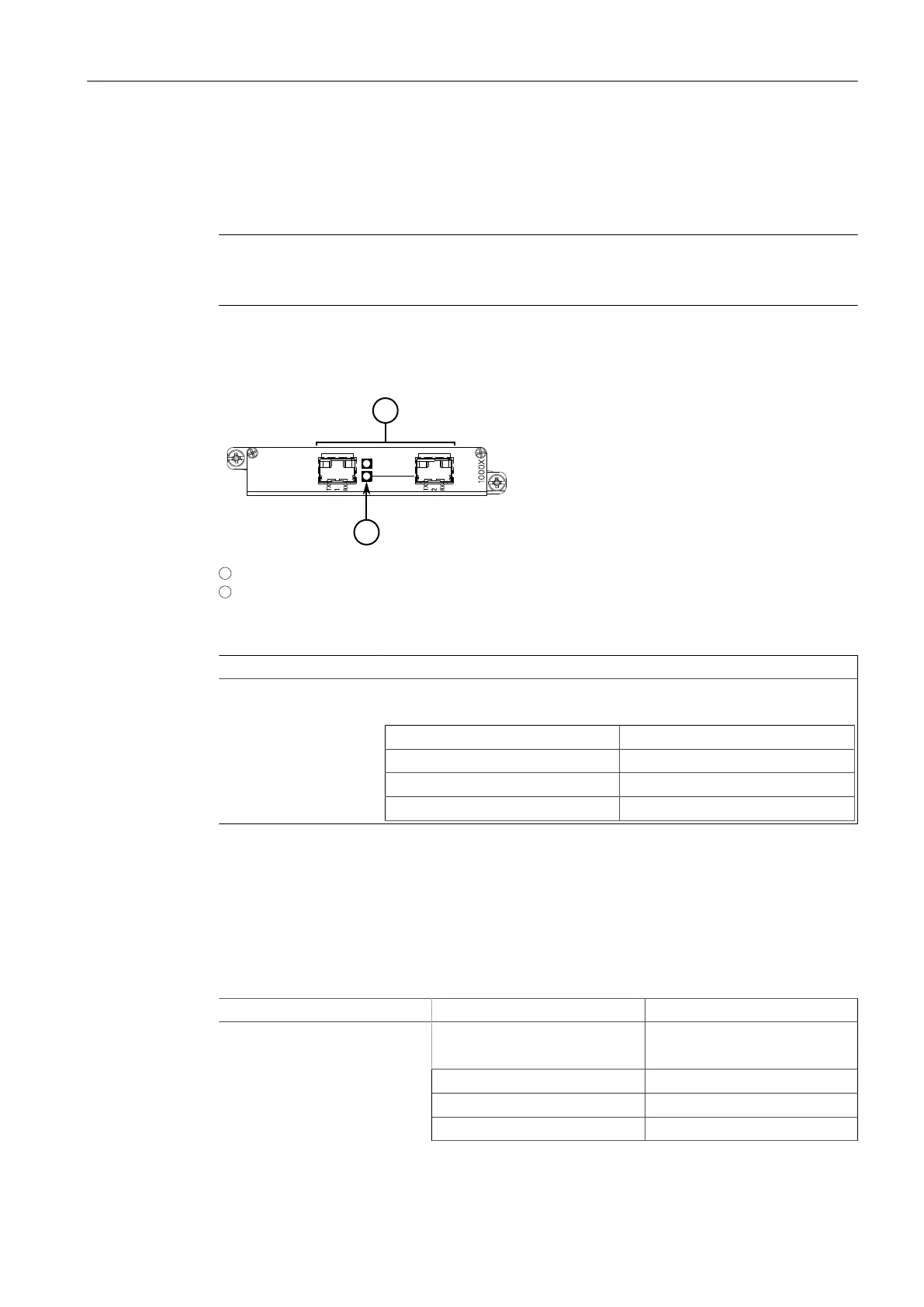

Figure4.5 RUGGEDCOM RX1500PN LM FG51
Ethernet Ports Fixed 10/100/1000Base-SX fiber optic Ethernet ports.
Port LEDs Each port set (transmit/receive) features a dedicated LED that indicates its
link/activity state.
State Description
Green (Solid) Link established
Green (Blinking) Activity
Off No link detected
Installing the Module
For information about installing this module, refer to the Installation Manual for the
host device.
Technical Specifications
General Power Consumption 4 W
Cable Type 50/125 μm
62.5/125 μm
Speed 1000 Mbps
Mode MM (Multi-Mode)
Interface/Cable
Interface SX
78
