Fiber Optic Ethernet Modules
4.3RUGGEDCOM RX1500PN LM FG03
4.3 RUGGEDCOM RX1500PN LM FG03
The RUGGEDCOM RX1500PN LM FG03 module features two 1000Base-LX fiber optic
Ethernet ports.
Note
When connecting cables, make sure the Transmit (Tx) and Receive (Rx) connections
of each port are properly connected and matched to establish a proper link.
Description
1
2
1
Ethernet Ports
2
Port LEDs

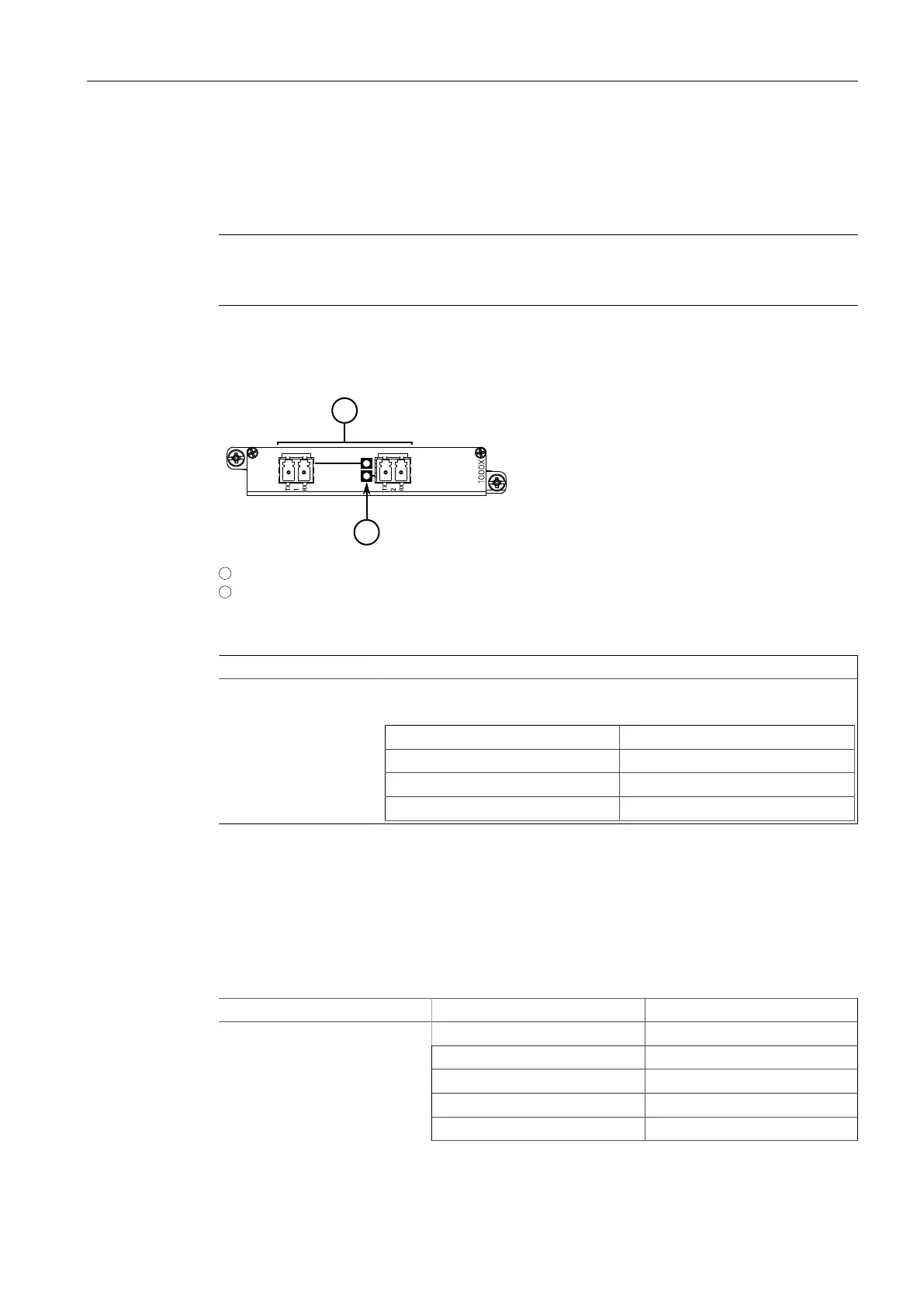

Figure4.3 RUGGEDCOM RX1500PN LM FG03
Ethernet Ports Fixed 1000Base-LX fiber optic Ethernet ports.
Port LEDs Each port set (transmit/receive) features a dedicated LED that indicates its
link/activity state.
State Description
Green (Solid) Link established
Green (Blinking) Activity
Off No link detected
Installing the Module
For information about installing this module, refer to the Installation Manual for the
host device.
Technical Specifications
General Power Consumption 5 W
Cable Type 9/125 μm
Speed 1000 Mbps
Interface LX
Mode SM (Single-Mode)
Interface/Cable
Connector LC
