Power Supply Modules
2.8RUGGEDCOM RX1500PN PS HIP
2.8 RUGGEDCOM RX1500PN PS HIP
The RUGGEDCOM RX1500PN PS HIP power supply module provides high VDC or VAC
power to the host device and features a failsafe relay to protect against critical error
conditions. It is equipped with a 3-position European-style (Euroblock) terminal block
and a failsafe relay terminal block. The module accepts either AC or DC power inputs
from an external power supply.
Description
43
2
1
1
O LED
2
I LED
3
Failsafe Alarm Relay
4
Terminal Block

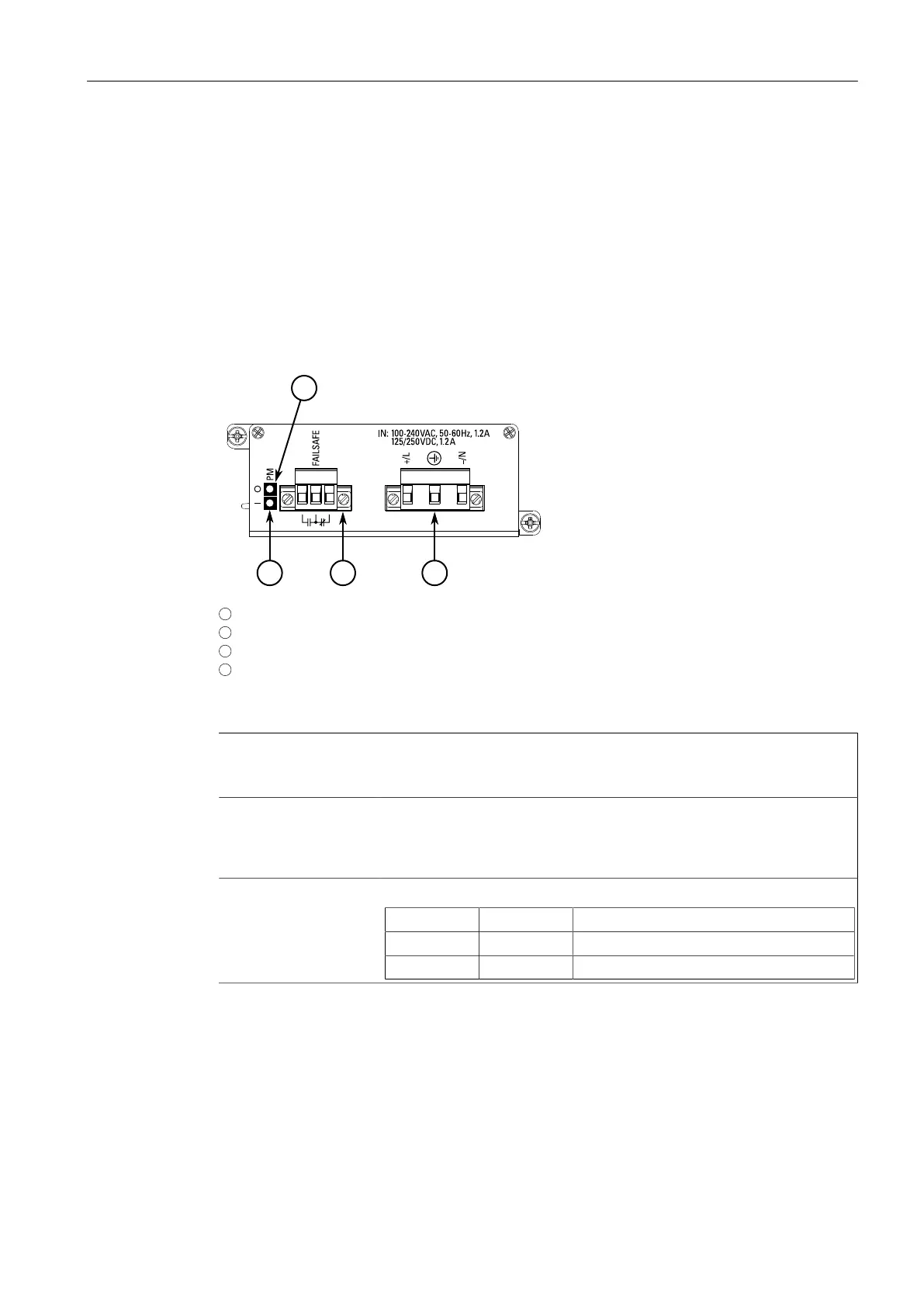

Figure2.11 RUGGEDCOM RX1500PN PS HIP
Terminal Block A 3-position European-style (Euroblock) terminal block.
For information about connecting power to the module, refer to the
Installation Manual for the RUGGEDCOM RX1500.
Failsafe Alarm Relay The failsafe alarm relay can be configured to latch based on alarm
conditions.
For more information, refer to the Installation Manual for the RUGGEDCOM
RX1500.
O/I LEDs LEDs indicate when the module is receiving and supplying power.
LED State Description
O Green The module is supplying power
I Green The module is receiving power
Installing the Module
For information about installing this module, refer to the Installation Manual for the
host device.
