Power Supply Modules
2.3RUGGEDCOM RX1500PN PS 24
2.3 RUGGEDCOM RX1500PN PS 24
The RUGGEDCOM RX1500PN PS 24 power supply module provides 24 VDC power
to the host device and features a failsafe relay to protect against critical error
conditions. It is equipped with a removable screw terminal block and a failsafe relay
terminal block. The module accepts DC power inputs from an external power supply.
NOTICE
The RUGGEDCOM RX1500PN PS 24 comes with a safety cover that must be removed
to connect power to the module, and then reinstalled once the wiring is complete.
Description
4
3
2
1
1
O LED
2
I LED
3
Failsafe Alarm Relay
4
Terminal Block (Non-removable Screw)

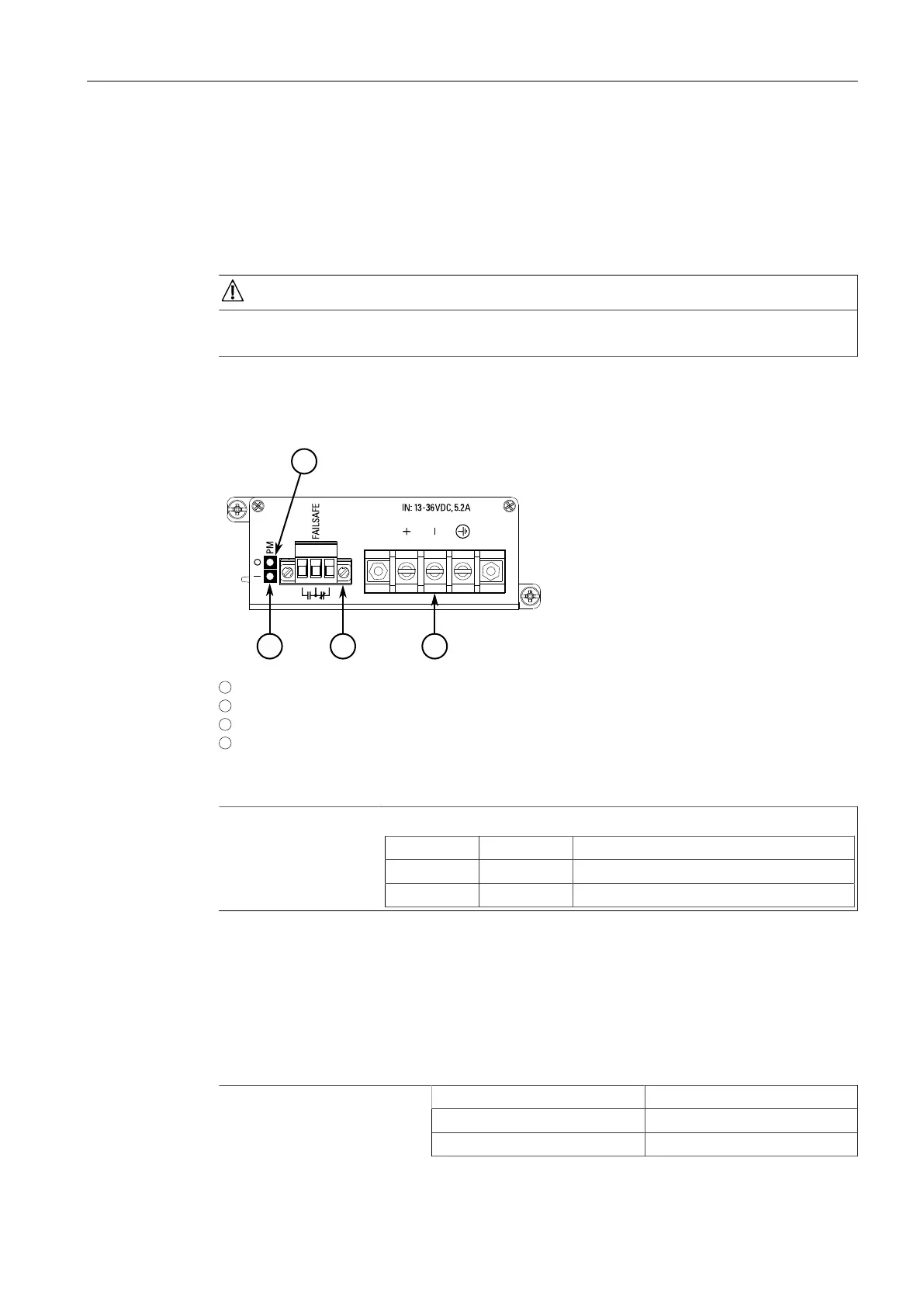

Figure2.4 RUGGEDCOM RX1500PN PS 24 with (shipped until 2019)
Port LEDs LEDs indicate when the module is receiving and supplying power.
LED State Description
O Green The module is supplying power
I Green The module is receiving power
Installing the Module
For information about installing this module, refer to the Installation Manual for the
host device.
Technical Specifications
Input Range 13 to 36 VDC
Internal Fuse Rating 10 A(T)
a
Power
Maximum Power Consumption
b
63.5 W
26
RUGGEDCOM Modules
Catalog, 07/2021, C79000-G8976-1320-16
