Power Supply Modules
2.1RUGGEDCOM RX1500PN PS 12
2.1 RUGGEDCOM RX1500PN PS 12
The RUGGEDCOM RX1500PN PS 12 power supply module provides 12 VDC power
to the host device and features a failsafe relay to protect against critical error
conditions. It is equipped with a removable screw terminal block and a failsafe relay
terminal block. The module accepts DC power inputs from an external power supply.
NOTICE
The RUGGEDCOM RX1500PN PS 12 comes with a safety cover that must be removed
to connect power to the module, and then reinstalled once the wiring is complete.

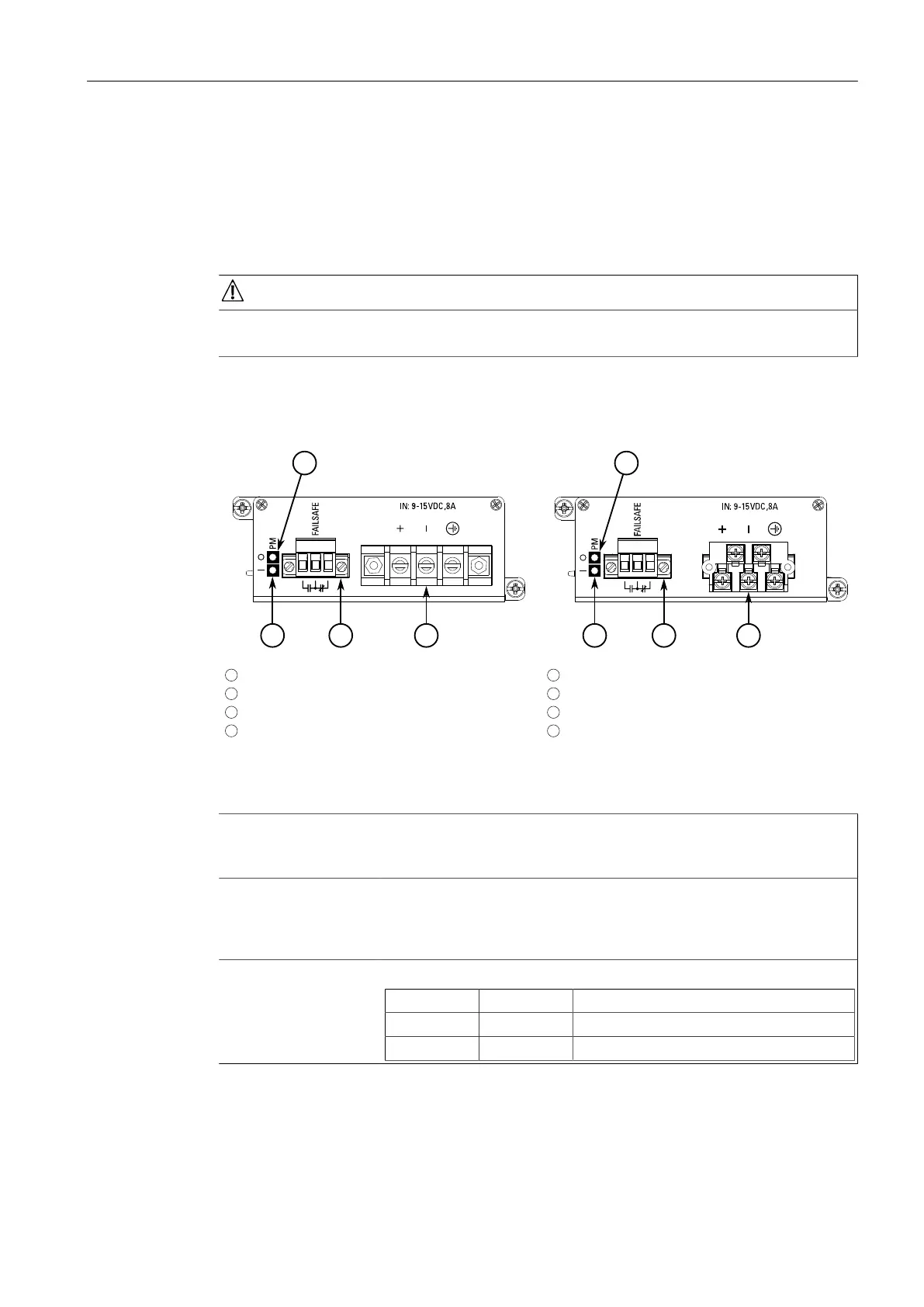

Description
43
2
1
1
O LED
2
I LED
3
Failsafe Alarm Relay
4
Terminal Block (Non-removable Screw)
Figure2.1 RUGGEDCOM RX1500PN PS
12 (shipped until 2019)

4
32
1
1
O LED
2
I LED
3
Failsafe Alarm Relay
4
Terminal Block (Removable Screw)
Figure2.2 RUGGEDCOM RX1500PN PS
12 (shipped from 2019 on)
Terminal Block A removable screw terminal block.
For information about connecting power to the module, refer to the
Installation Manual for the RUGGEDCOM RX1500.
Failsafe Alarm Relay The failsafe alarm relay can be configured to latch based on alarm
conditions.
For more information, refer to the Installation Manual for the RUGGEDCOM
RX1500.
O/I LEDs LEDs indicate when the module is receiving and supplying power.
LED State Description
O Green The module is supplying power
I Green The module is receiving power
