Power Supply Modules
2.2RUGGEDCOM RX1500PN PS 12P
2.2 RUGGEDCOM RX1500PN PS 12P
The RUGGEDCOM RX1500PN PS 12P power supply module provides 12 VDC power
to the host device and features a failsafe relay to protect against critical error
conditions. It is equipped with a 3-position European-style (Euroblock) terminal block
and a failsafe relay terminal block. The module accepts DC power inputs from an
external power supply.
Description
43
2
1
4
1
O LED
2
I LED
3
Failsafe Alarm Relay
4
Terminal Block

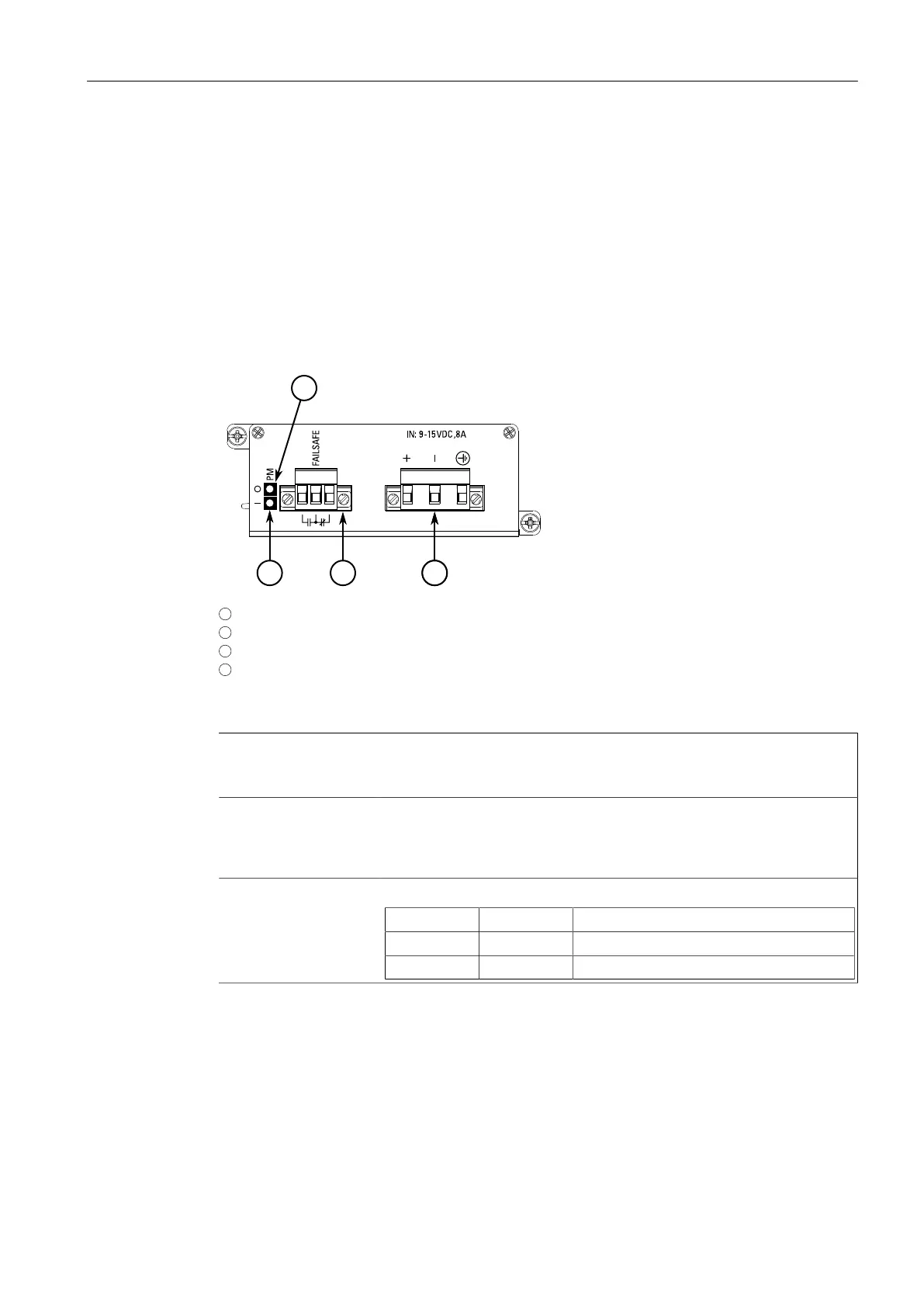

Figure2.3 RUGGEDCOM RX1500PN PS 12P
Terminal Block A 3-position European-style (Euroblock) terminal block.
For information about connecting power to the module, refer to the
Installation Manual for the RUGGEDCOM RX1500.
Failsafe Alarm Relay The failsafe alarm relay can be configured to latch based on alarm
conditions.
For more information, refer to the Installation Manual for the RUGGEDCOM
RX1500.
O/I LEDs LEDs indicate when the module is receiving and supplying power.
LED State Description
O Green The module is supplying power
I Green The module is receiving power
Installing the Module
For information about installing this module, refer to the Installation Manual for the
host device.
