3.5RUGGEDCOM RX1500PN M12 X CG04B
3.5 RUGGEDCOM RX1500PN M12 X CG04B
The RUGGEDCOM RX1500PN M12 X CG04B module features two 10/100/1000Base-
TX copper M12 (8-pin, X-coded) Ethernet ports. Both ports can be utilized as bypass
ports to protect the network from power disruptions.
Description
2
1 1
2
1
M12 Port
2
Port LED

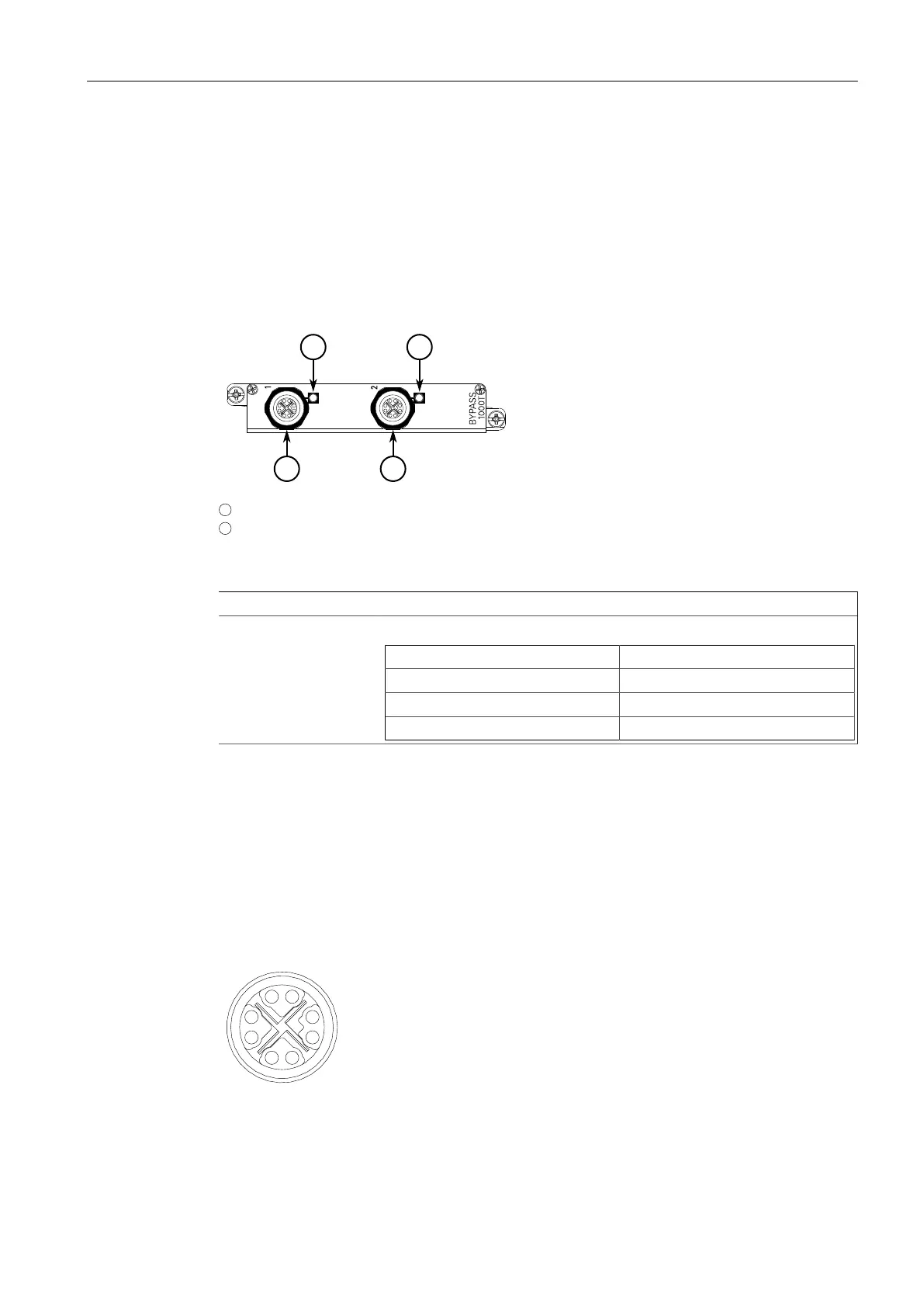

Figure3.9 RUGGEDCOM RX1500PN M12 X CG04B
Ethernet Ports Fixed 10/100/1000Base-TX copper M12 Ethernet ports.
Port LEDs Each port features a dedicated LED that indicates its link/activity state.
State Description
Green (Solid) Link established
Green (Blinking) Activity
Off No link detected
Installing the Module
For information about installing this module, refer to the Installation Manual for the
host device.
Pin-Out Description
The following are the pin-out descriptions for the M12 ports:
1 2
3
4
8
7
6 5
Figure3.10 8-Pin M12 X-Coded Ethernet Port Pin Configuration
52
RUGGEDCOM Modules
Catalog, 07/2021, C79000-G8976-1320-16
