Default TSAPs
When configuring the local and remote TSAPs, there is a default value “ISO-1” for
the first connection between the two partners (can be changed). For a new
connection between the two partners, the default value “ISO-2” is proposed. With a
new connection to a new partner, the value ISO-1 is used again.
Addresses Tab - Unspecified ISO transport connection
If you select the partner type as “unspecified”, depending on your task, you can
enter address information about the communication partner here. The options
available to you are explained in detail in Section 5.3.1.
The Addresses tab shown here illustrates the situation in which the MAC address
and the remote TSAP were not specified. If you do not make any further settings,
this means that you are willing to accept a connection establishment request from
any communication partner.

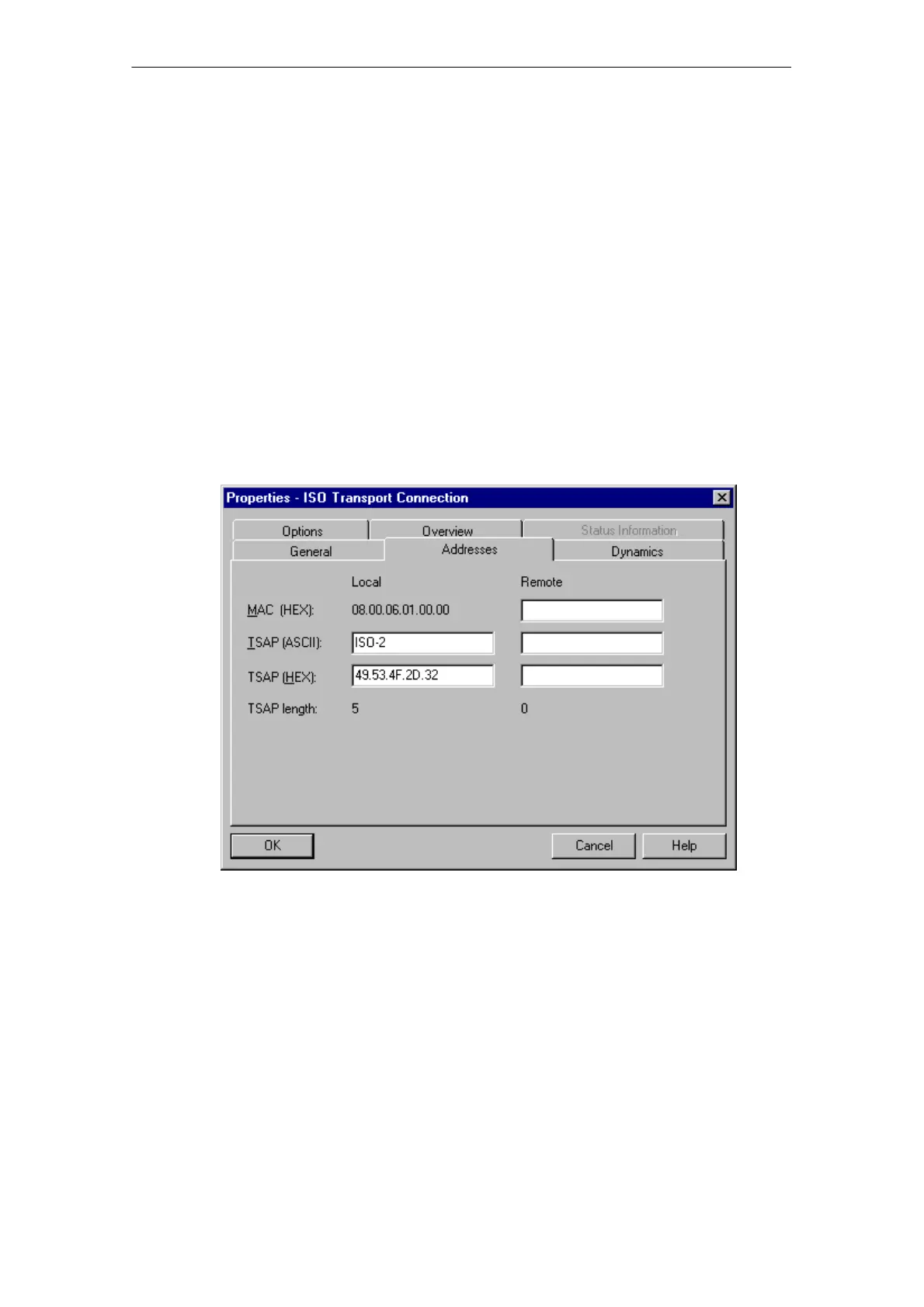

Figure 5-8 Layout of the “Addresses” Tab of the Properties Dialog for an Unspecified Connection
