5.9 Routing to Distribute Load
Routing to Distribute Load
If more than one CP of the same type exists in a station and is connected to the
same subnet, the route can be selected
.

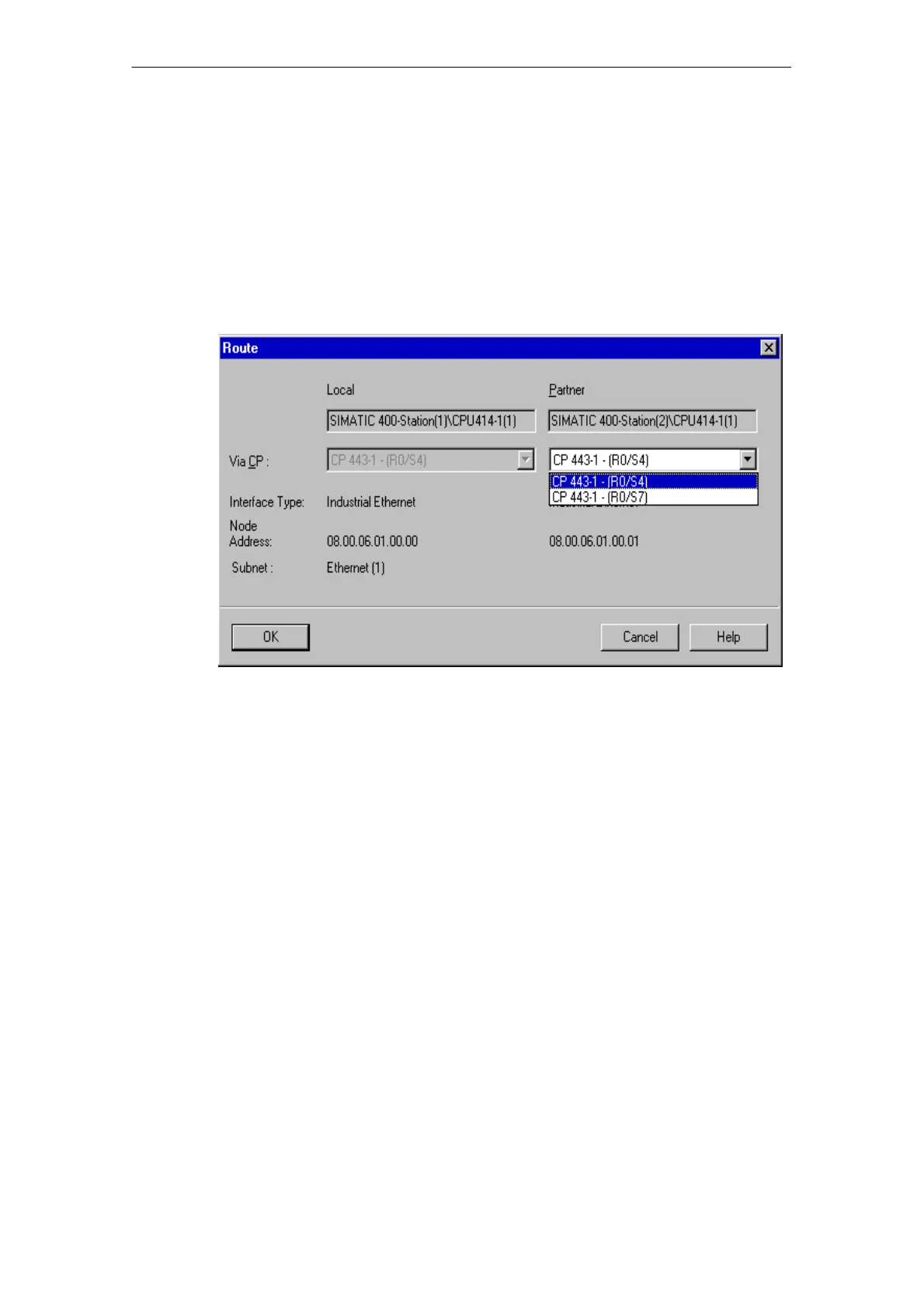

Click the “Route” button in the “General” tab to display the route dialog:
If you have configured a load distribution on two or more Ethernet CPs at the local
or remote end, you can assign the connection to the required route via the CP.

Siemens SIMATIC NET S7-300 Specifications

General

Product Type Designation	SIMATIC NET S7-300
Mounting	DIN rail mounting
Protection Class	IP20
CPU Models	Various models available (e.g., CPU 312, CPU 314)
Communication Interfaces	MPI, PROFIBUS DP
Power Supply	24 V DC power supply required. Different power supply modules available.
I/O Modules	Digital input modules, digital output modules, analog input modules, analog output modules
Programming	STEP 7 software
Supply Voltage	24V DC or 120/230V AC (depending on model)
Digital Inputs	Available via digital input modules
Digital Outputs	Available via digital output modules
Analog Inputs	Available via analog input modules
Analog Outputs	Available via analog output modules
Communication Functions	MPI, PROFIBUS DP, Ethernet (depending on model)
Protocols	MPI, PROFIBUS DP, TCP/IP (depending on model)
Operating Temperature	0°C to 60°C
Storage Temperature	70 °C
Memory	Depends on CPU model (e.g., 32 KB to 1.5 MB)
