7.8.1 FC11 PNIO_SEND
The PNIO_SEND FC is used to transfer data in the PROFINET IO controller or
PROFINET IO device modes of the CP.
 Operation as PROFINET IO controller
The block transfers the process data (outputs) of a specified output area to the
CP to be forwarded to PROFINET IO devices and as status display returns the
IO consumer status (IOCS) of the outputs of the PROFINET IO devices.
 Operation as PROFINET IO device
The block reads the preprocessed process inputs of the CPU on the
PROFINET IO device and transfers them to the PROFINET IO controller
(configured I addresses); the block also returns the IO Consumer Status (IOCS)
of the PROFINET IO controller as a status display.
The preprocessed process data is available in a DB or bit memory area.
Call Interface

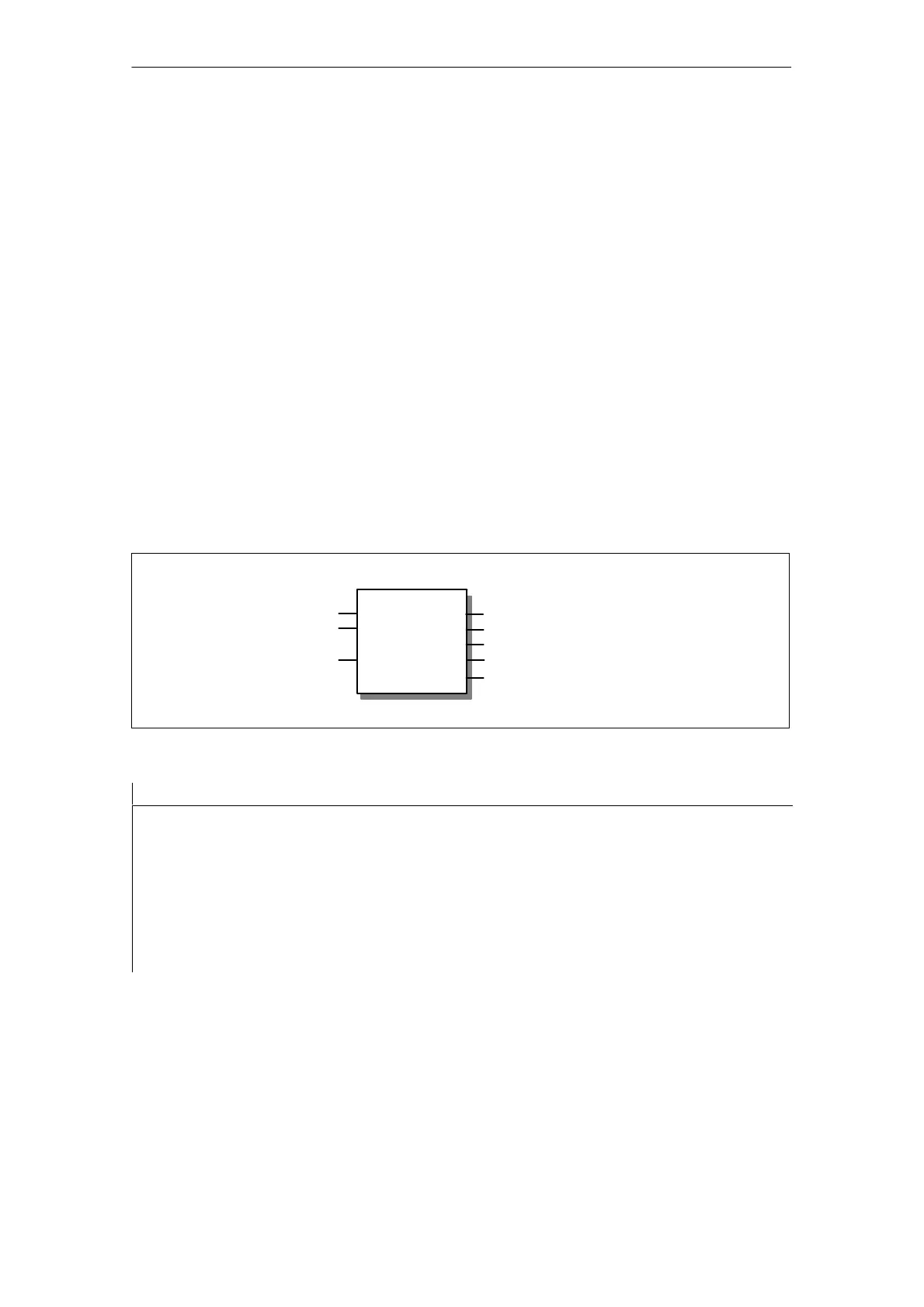

Call interface in FBD representation
CPLADDR
DONE
PNIO_SEND
LEN
ERROR
STATUS
WORD
INT
WORD
BOOL
BOOL
IOCS ANYSENDANY
CHECK_IOCS BOOL
Example in STL representation
STL Explanation
call fc 11
CPLADDR :=W#16#0100
LEN :=20
IOCS :=P#DB10.DBX20.0 BYTE 3
DONE :=M 70.0
ERROR :=M 70.1
STATUS :=MW 72
CHECK_IOCS :=M 70.2
SEND :=P#DB10.DBX0.0 BYTE 20
//PNIO_SEND block call
//Module address from hardware configuration
//Length of the data area
//Per send data byte one bit status in DB10
//Address for return parameter DONE
//Address for return parameter ERROR
//Address for return parameter STATUS
//Address for return parameter CHECK_IOCS
//Data area to be transferred from DB10
//(20 bytes)
Explanation of the Formal Parameters
The following table explains all the formal parameters for FC11:
