Siemens SIMATIC NET S7-300 User Manual

8 NCM S7 Diagnostics
A-273
S7-CPs for Industrial Ethernet Configuring and Commissioning
Release 01/2007
C79000-G8976-C182-07
Case b: Several Gateways
If the CP requiring diagnostics can only be reached over several gateways, you
only specify the first gateway.
Routing over the other gateways is done automatically.
Node address:
PROFIBUS address 9
Rack / slot : 0/5
S7 - 300
CP
U
C
P
PG/PC
C
P
Attachment of gateway:
Industrial Ethernet
S7 - 300
CP
U
C
P
Node address (gateway) (MAC):
08-00-06-01-02-03
Attachment of target
station: MPI/PROFIBUS/AUTO
S7 subnet ID of target network:
0001 0001
Routing over other
gateways is done
automatically !

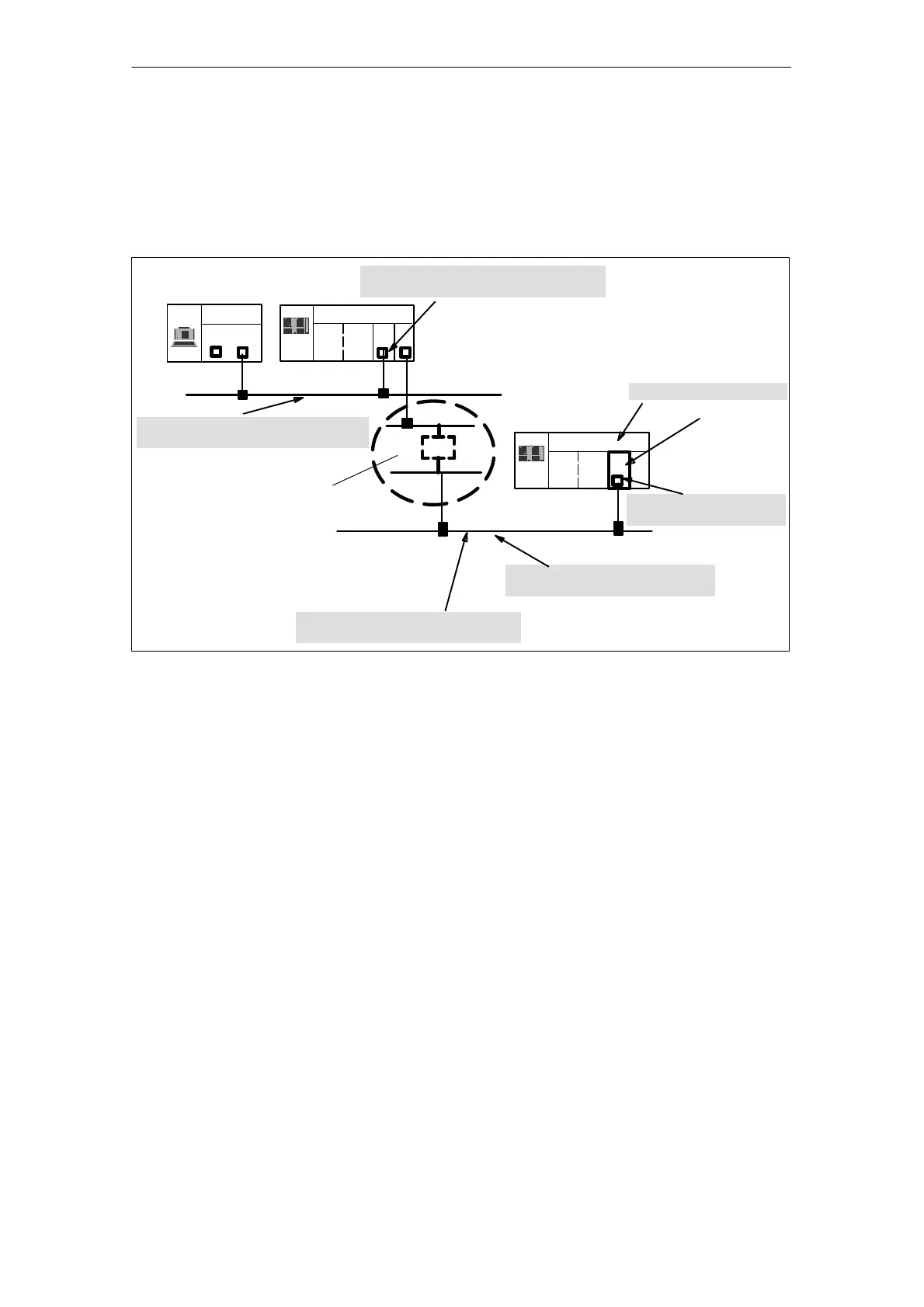

Figure 8-4 Example of the Parameter Settings for the Online Path with Several Gateways

Siemens SIMATIC NET S7-300 Specifications

General

Product Type Designation	SIMATIC NET S7-300
Mounting	DIN rail mounting
Protection Class	IP20
CPU Models	Various models available (e.g., CPU 312, CPU 314)
Communication Interfaces	MPI, PROFIBUS DP
Power Supply	24 V DC power supply required. Different power supply modules available.
I/O Modules	Digital input modules, digital output modules, analog input modules, analog output modules
Programming	STEP 7 software
Supply Voltage	24V DC or 120/230V AC (depending on model)
Digital Inputs	Available via digital input modules
Digital Outputs	Available via digital output modules
Analog Inputs	Available via analog input modules
Analog Outputs	Available via analog output modules
Communication Functions	MPI, PROFIBUS DP, Ethernet (depending on model)
Protocols	MPI, PROFIBUS DP, TCP/IP (depending on model)
Operating Temperature	0°C to 60°C
Storage Temperature	70 °C
Memory	Depends on CPU model (e.g., 32 KB to 1.5 MB)
