1 Communication via Ethernet CPs in S7 Stations
A-37
S7-CPs for Industrial Ethernet Configuring and Commissioning
Release 01/2007
C79000-G8976-C182-07

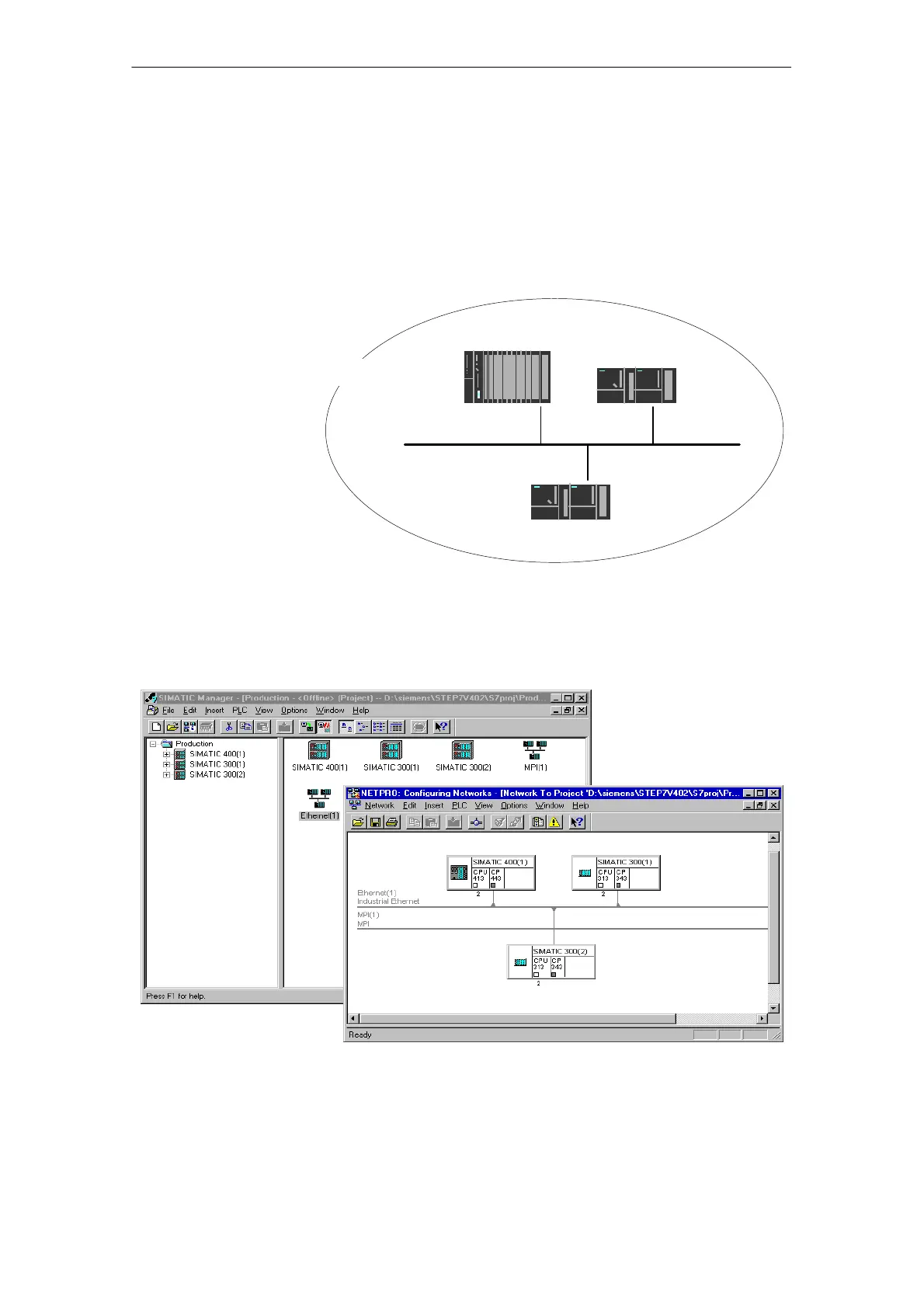

1.7.1 Network/Project Variant: One Subnet - One Project
Configuration of the System
In the simplest case, your system consists of SIMATIC S7 stations connected by
one subnet, for example of the type Industrial Ethernet.
Ethernet (1)
System
“Production”
View in a STEP 7 Project
You create an Industrial Ethernet object in the STEP 7 project. Stations created
in the same project refer to this object as soon as they are configured as
network nodes.
S7-400/1
S7-300/1
S7-300/2

Siemens SIMATIC NET S7-300 Specifications

General

Product Type Designation	SIMATIC NET S7-300
Mounting	DIN rail mounting
Protection Class	IP20
CPU Models	Various models available (e.g., CPU 312, CPU 314)
Communication Interfaces	MPI, PROFIBUS DP
Power Supply	24 V DC power supply required. Different power supply modules available.
I/O Modules	Digital input modules, digital output modules, analog input modules, analog output modules
Programming	STEP 7 software
Supply Voltage	24V DC or 120/230V AC (depending on model)
Digital Inputs	Available via digital input modules
Digital Outputs	Available via digital output modules
Analog Inputs	Available via analog input modules
Analog Outputs	Available via analog output modules
Communication Functions	MPI, PROFIBUS DP, Ethernet (depending on model)
Protocols	MPI, PROFIBUS DP, TCP/IP (depending on model)
Operating Temperature	0°C to 60°C
Storage Temperature	70 °C
Memory	Depends on CPU model (e.g., 32 KB to 1.5 MB)
