1 Communication via Ethernet CPs in S7 Stations
A-43
S7-CPs for Industrial Ethernet Configuring and Commissioning
Release 01/2007
C79000-G8976-C182-07
1.7.5 Network/Project Variant: Several Subnets in Several (Sub)
Projects
Configuration of the System
If several network types need to be used and if these need to be managed in
different projects due to the different tasks of the stations or due to the large span
of the plant, stations can be created as follows:
 Using (sub) projects in the “multiproject”
 by configuring “Other stations / SIMATIC S5” in the other project.

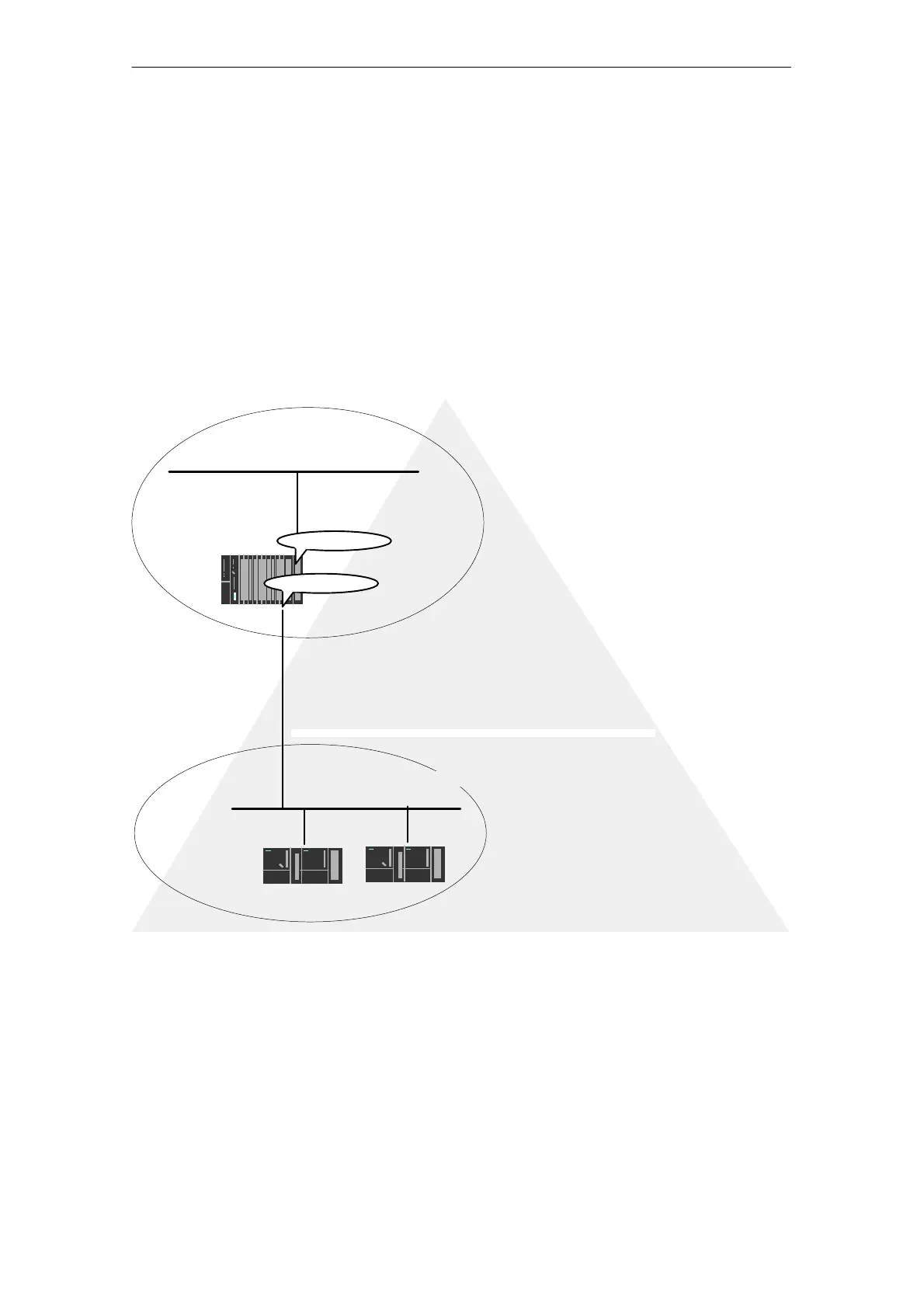

S7 - 300/1
S7 - 300/2
S7 - 400/1
Cell level = (sub)project 1
Cell level = (sub)project 2
PROFIBUS CP
Ethernet (1)
PROFIBUS (1)
Ethernet CP

Siemens SIMATIC NET S7-300 Specifications

General

Product Type Designation	SIMATIC NET S7-300
Mounting	DIN rail mounting
Protection Class	IP20
CPU Models	Various models available (e.g., CPU 312, CPU 314)
Communication Interfaces	MPI, PROFIBUS DP
Power Supply	24 V DC power supply required. Different power supply modules available.
I/O Modules	Digital input modules, digital output modules, analog input modules, analog output modules
Programming	STEP 7 software
Supply Voltage	24V DC or 120/230V AC (depending on model)
Digital Inputs	Available via digital input modules
Digital Outputs	Available via digital output modules
Analog Inputs	Available via analog input modules
Analog Outputs	Available via analog output modules
Communication Functions	MPI, PROFIBUS DP, Ethernet (depending on model)
Protocols	MPI, PROFIBUS DP, TCP/IP (depending on model)
Operating Temperature	0°C to 60°C
Storage Temperature	70 °C
Memory	Depends on CPU model (e.g., 32 KB to 1.5 MB)
