Detailed descriptions
17.1 Motherboard
SIMATIC Panel PC 877
Operating instructions, Release 07/2006, A5E00877780-01
17-11

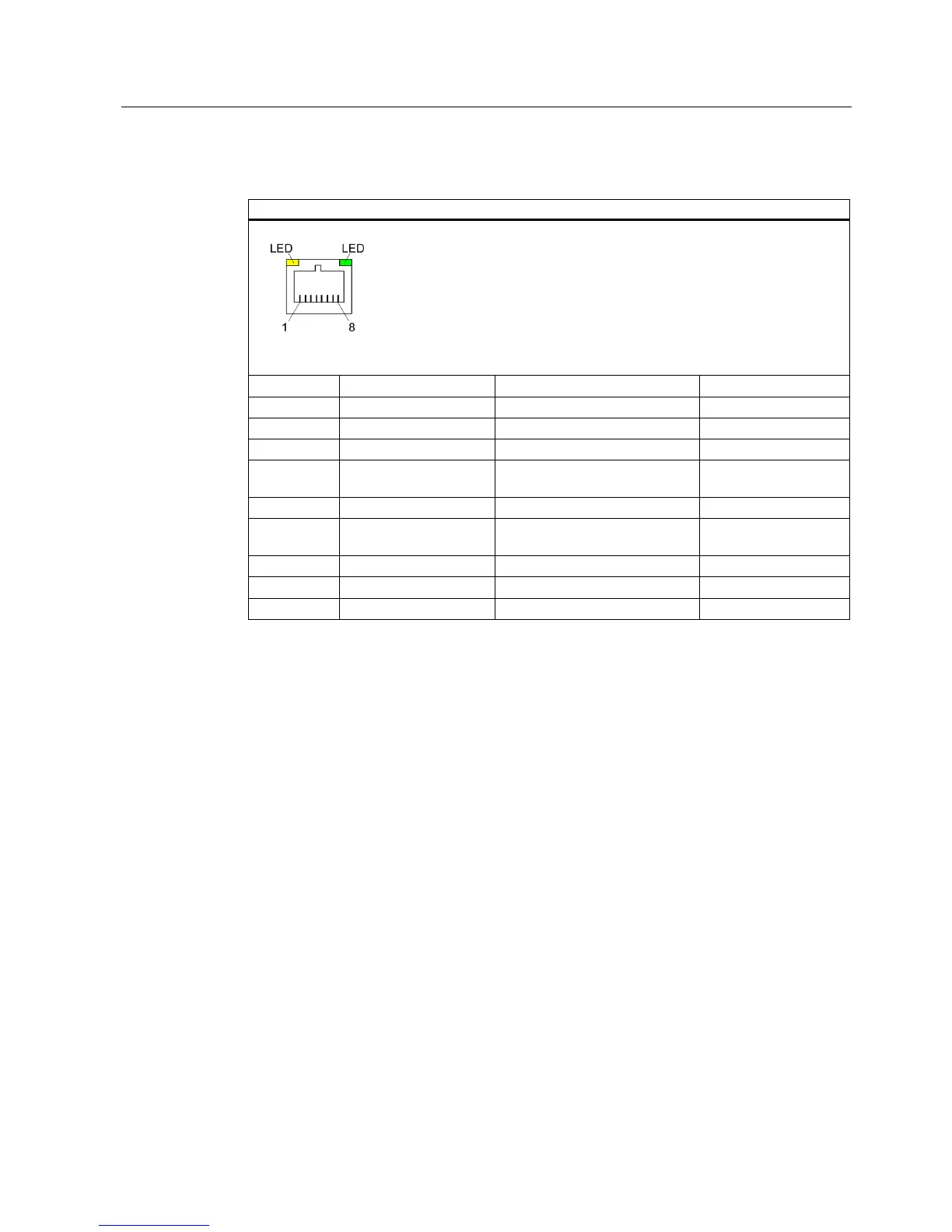

Ethernet RJ45 connection, X700
Ethernet RJ45 connection
PinNo. Abbreviation Meaning Input/Output
1 TD+ Transmitted data Output
2 TD- Transmitted data Output
3 RD+ Received data Input
4, 5
1)
SYMR Internal 75 Ohm terminating
resistor
–
6 RD- Received data Input
7, 8
1)
SYMT Internal 75 Ohm terminating
resistor
–
S Shielding –
Yellow LED Connection –
Green LED Activity –
1)
is not necessary for data transfer
