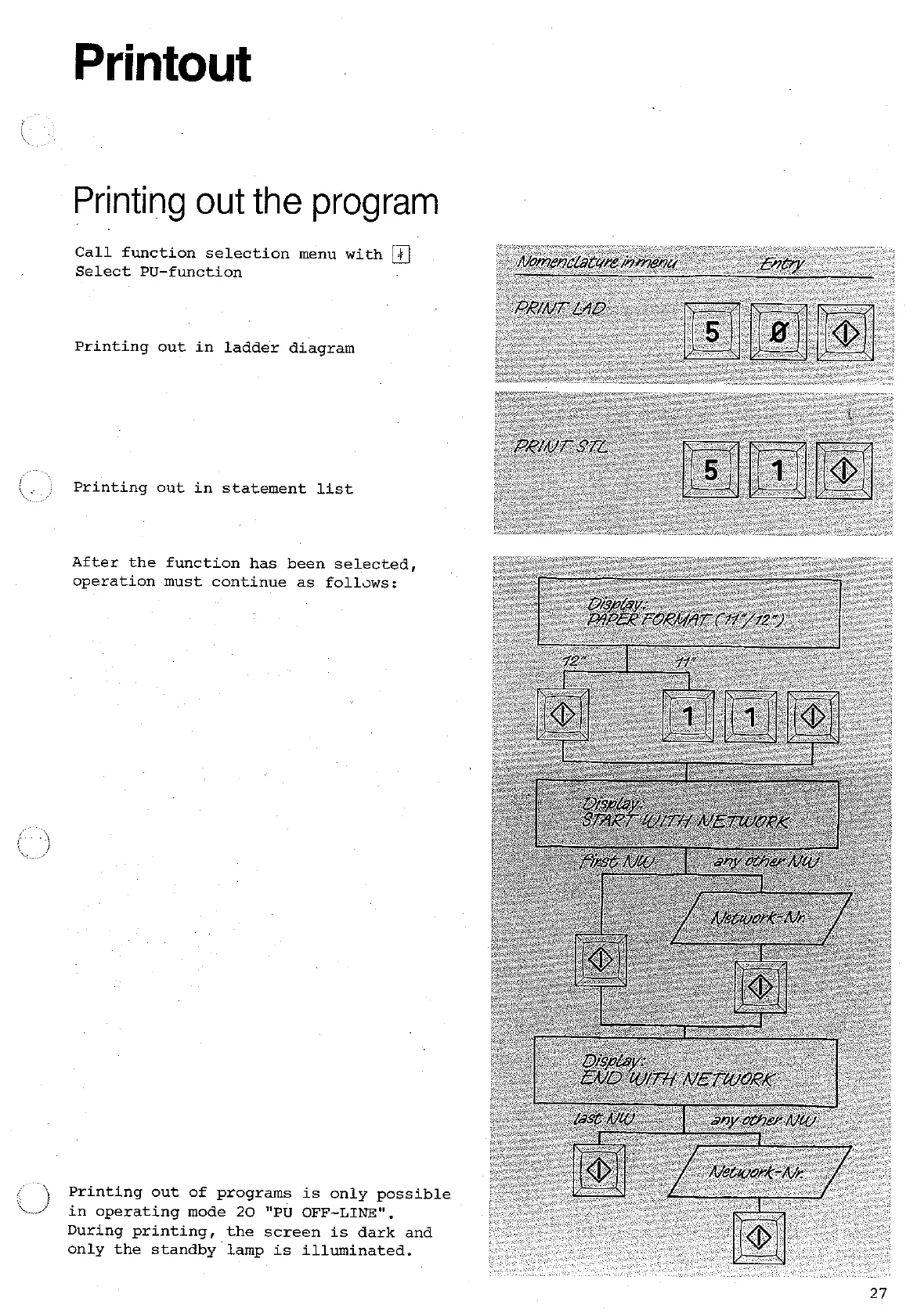

Printout
Printing out the program
Call function selection menu with
Select PU-function
Printing out in ladder diagram
\
Printing out in statement
list
After the function has been selected,
operation must continue as
follaws:
Printing out of programs
is
only possible
iJ
in operating mode
20
"PU
OFF-LINE".
During printing, the screen
is
dark and
only the
standby lamp
is
illuminated.
