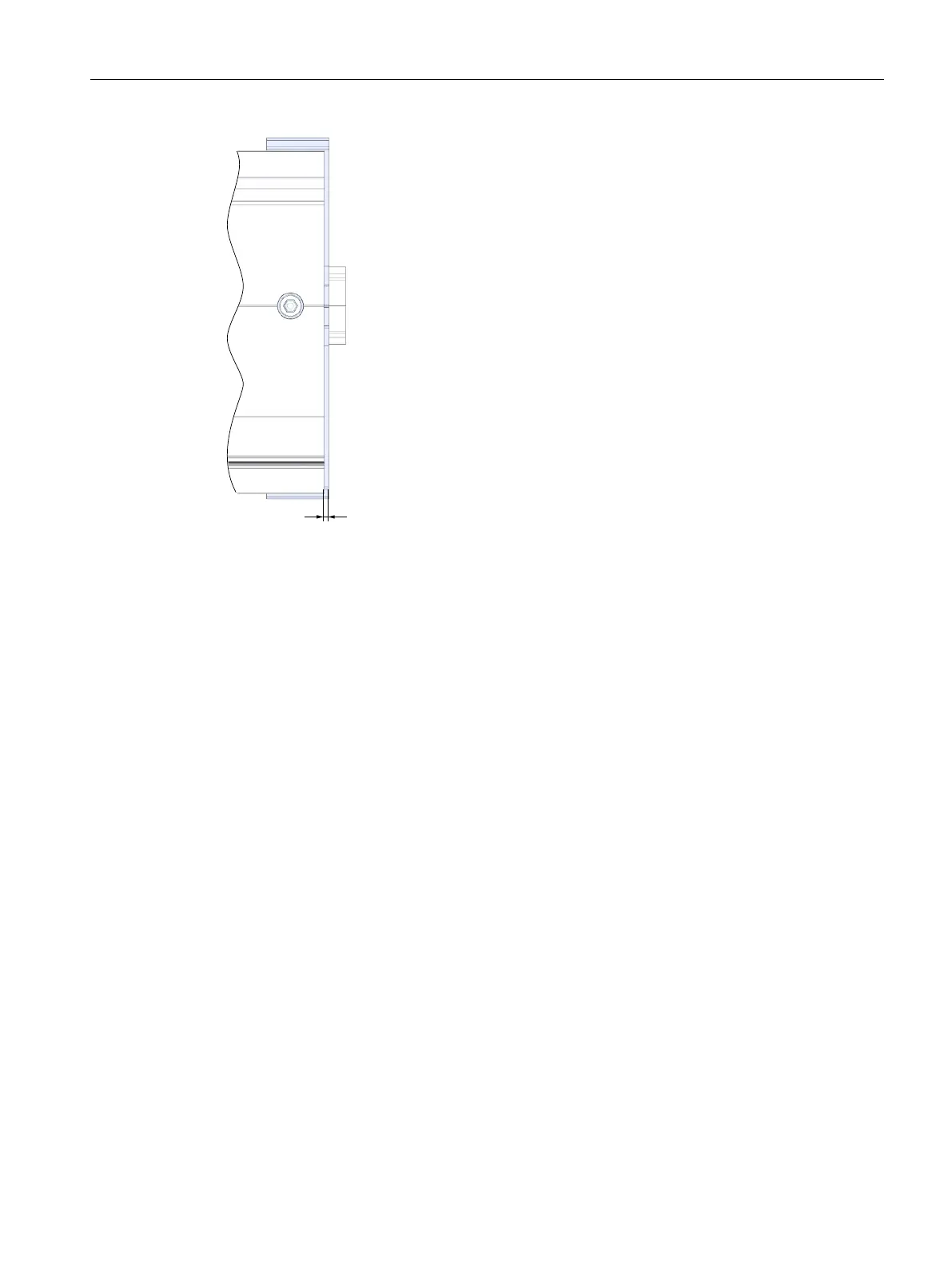

Figure 6-7DIN rail adapter protrusion
Procedure
Mounting on the standard DIN rail 35mmx7.5mm
To install DIN rail adapter on the standard DIN rail 35mmx7.5mm, follow these steps:
1.
Set the clamp onto the standard DIN rail.
2.
The shorter transverse edge of the adapter frame points towards the cabinet or box wall
(2).
3.
Place the S7-1500R/H mounting rail on the adapter frame so that the groove in the
S7-1500R/H mounting rail covers the groove in the adapter frame.
Place the S7-1500R/H mounting rail with the adapter frame onto the clamp (4).
4.
Use screws to fasten the S7-1500R/H mounting rail to the standard rail adapter and the
standard mounting rail (tightening torque 5Nm to 6Nm).
163
Installation
6.3 Installing the standard rail adapter
S7-1500R/H redundant system
System Manual, 11/2022, A5E41814787-AD
