Product Overview
1-4
S5 UniLink Adapter Installation and Operation
1.2 TIWAY I System Characteristics
TIWAY I is a bus structure Local Area Network (LAN) designed for
industrial environments. The TIWAY I network connects a series of PLCs
and other devices to one or more host computers.
SIMATIC
TI500
/SIMATIC
TI505
controllers are connected to a TIWAY
I network through Network Interface Modules (NIMs). The PM550
PLC
can be connected with a Computer Interface Module (CIM), but it limits the
configuration choices. The UniLink Adapter is a TIWAY I interface device
that allows other devices, such as the following, to be connected to a TIWAY
I network.
• Robots
• Computer numerical controlled machines
• Non-TI500/TI505 programmable controllers
• Intelligent instruments
• Computer equipment
The S5 UniLink Adapter provides a communication link between the
TIWAY I network and the S5 family of PLCs. Figure 1-4 shows an example
of a TIWAY I network which includes the S5 Adapter.
I003638
S5
Adapter
NIM
5TI
NIM
SIMATIC
TI545
NIM
SIMATIC
TI545
NIM
SIMATIC
TI565
CP525
135U
CP525
115U
S5
Adapter
TIWAY I
Host
Computer

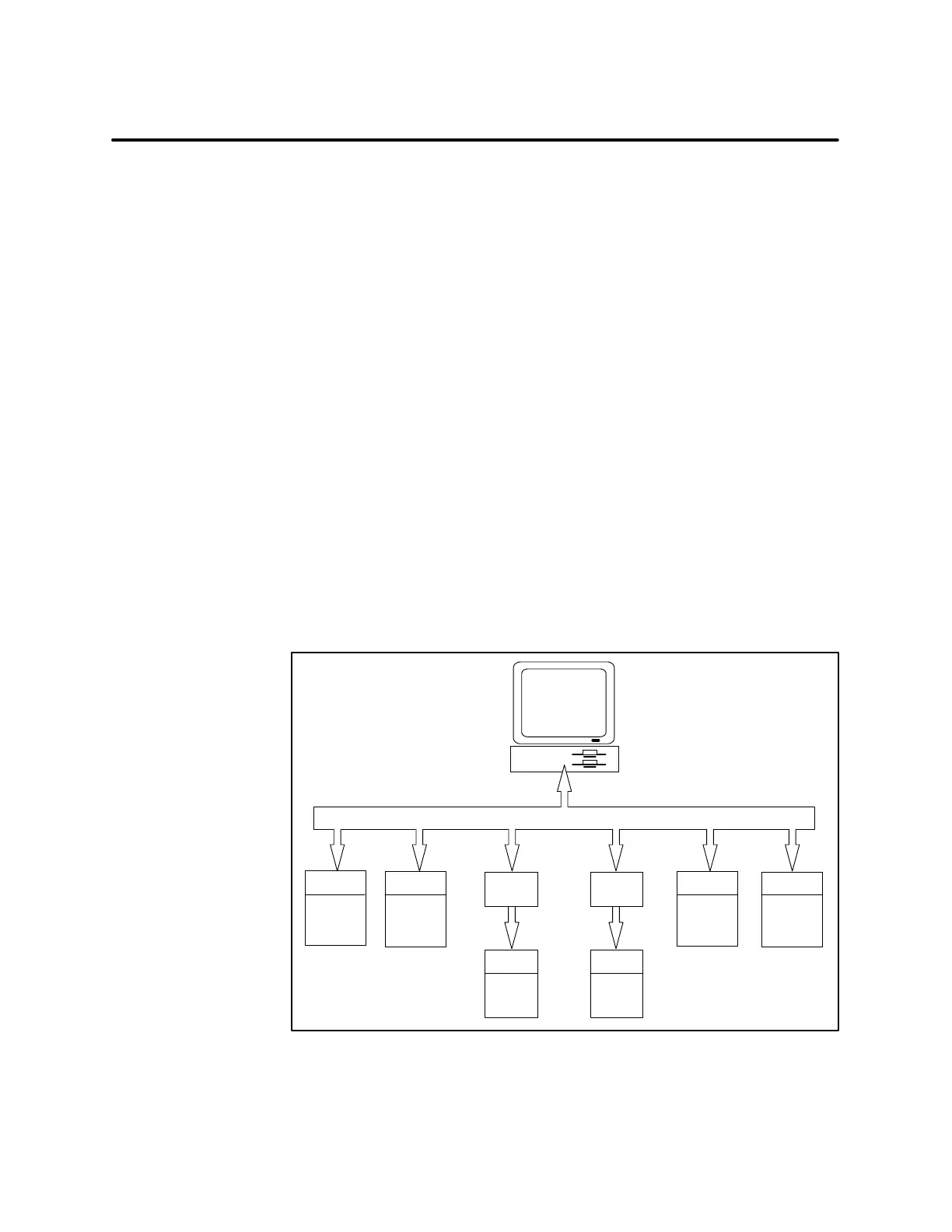

Figure 1-4 S5 UniLink Adapter in a TIWAY I Network
TIWAY Network
Adding the S5
UniLink Adapter to
the TIWAY Network
