Installation and Set-up
2-7
S5 UniLink Adapter Installation and Operation

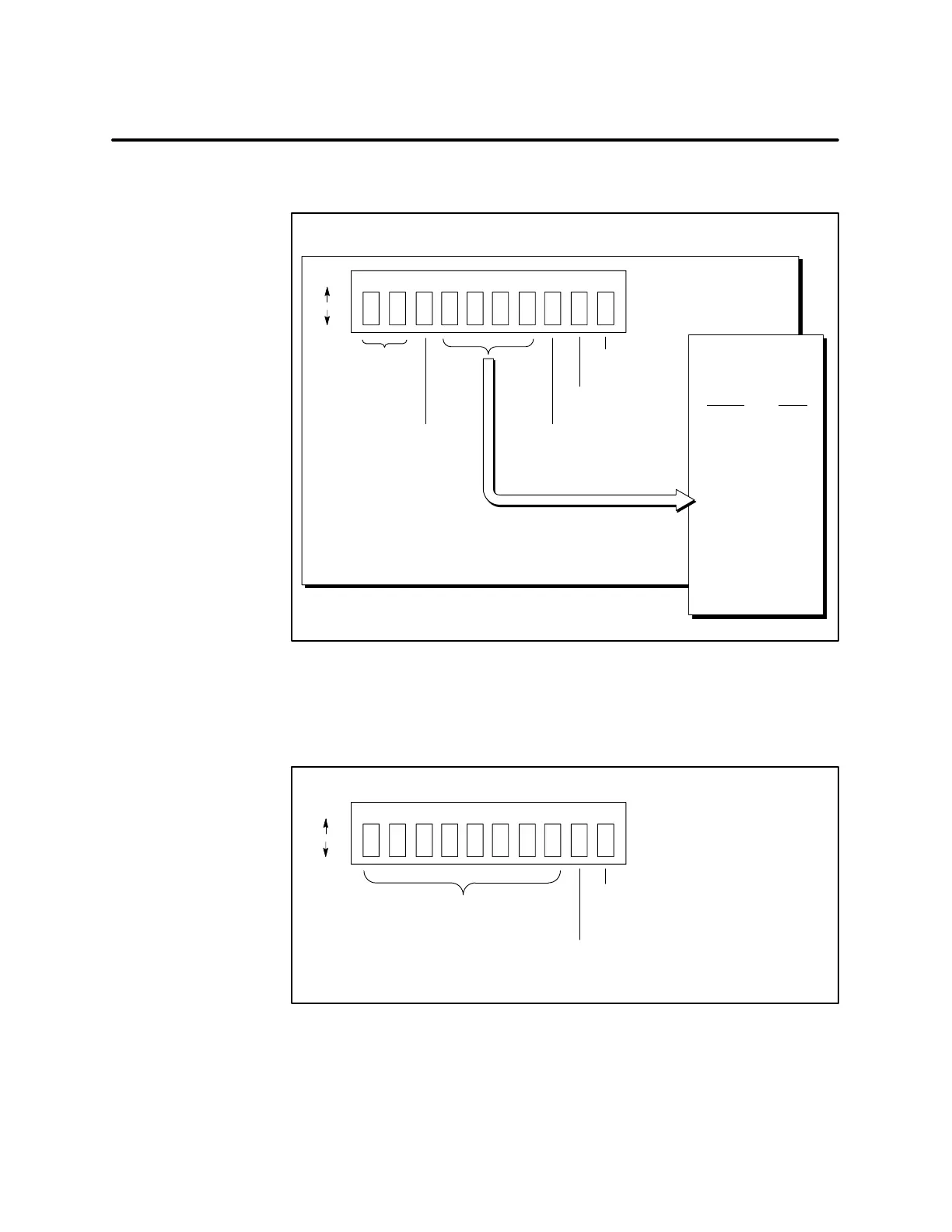

Figure 2-5 shows the settings for Dipswitch 1.
I003644
TIWAY Network
Data Rates
Up = 1
Down = 0
Dipswitch 1 Network Parameters
TIWAY Network
Data Rate Settings
0 0 0 0 – 110
0 0 0 1 – 110
0 0 1 0 – 110
0 0 1 1 – 110
0 1 0 0 – 110
0 1 0 1 – 150
0 1 1 0 – 300
0 1 1 1 – 600
1 0 0 0 – 1200
1 0 0 1 – 2400
1 0 1 0 – 4800
1 0 1 1 – 9600
1 1 0 0 – 19200
1 1 0 1 – 38400
1 1 1 0 – 57600
1 1 1 1 – 115200
Switches
4 5 6 7
Baud
12345678910
0 0 – CPU 1
0 1 – CPU 2
1 0 – CPU 3
1 1 – CPU 4
NRZI = Up
NRZ = Down
Full Duplex = Up
Half Duplex = Down
Synchronous = Up
Asynchronous = Down
19200 = Up
9600 = Down
S5 Interface Port
Baud Rate
1
0
Figure 2-5 S5 UniLink Dipswitch 1 Settings
Figure 2-6 shows the settings for Dipswitch 2.
I003645
Up = 1
Down = 0
12345678910
Diagnostic Tests:
Up = User Self Test
Down = Reset (normal operation)
1
0
TIWAY Network Address
Selection (1 – 254)
Normal Operation: KEYDELAY
Up =
1
@
2
second delay
Down = No delay
MSB LSB
Figure 2-6 S5 UniLink Dipswitch 2 Settings
