2.4 Installing the S5 Personality Interface Module
The S5 Personality Interface Module contains the software required to
establish an interface with the S5 series of PLCs.
Although the faceplate of the S5 UniLink Adapter contains an opening that
shows the label on the S5 PIM, it is not large enough to allow you to insert
or remove the PIM while the faceplate is closed.
The door and case are designed to ground you when you touch
them, discharging static electricity before you handle any of the
Adapter’s internal components. As with any static-sensitive devices,
use proper handling procedures to avoid exposing the module to
sources of electrostatic discharges. Keep the Adapter door closed
securely when access to the PIM and dipswitches is not required.
Open the hinged faceplate by unscrewing the knob and lifting up; you now
have access to the module socket for installing or removing the PIM, as well
as the dipswitches, a reset switch, and six LEDs (see Figure 2-7).
To avoid possible damage to the PIM, disconnect AC power to the
S5 UniLink Adapter before you install or remove the PIM.
The S5 PIM fits in the socket in one direction only—label side up. Insert the
module and press firmly to ensure that the contacts are securely connected.
Refer to your UNILINK Adapter Installation and Operation Manual for
proper power-up and diagnostic testing procedures.
A000653a
I003646
S5 PIM

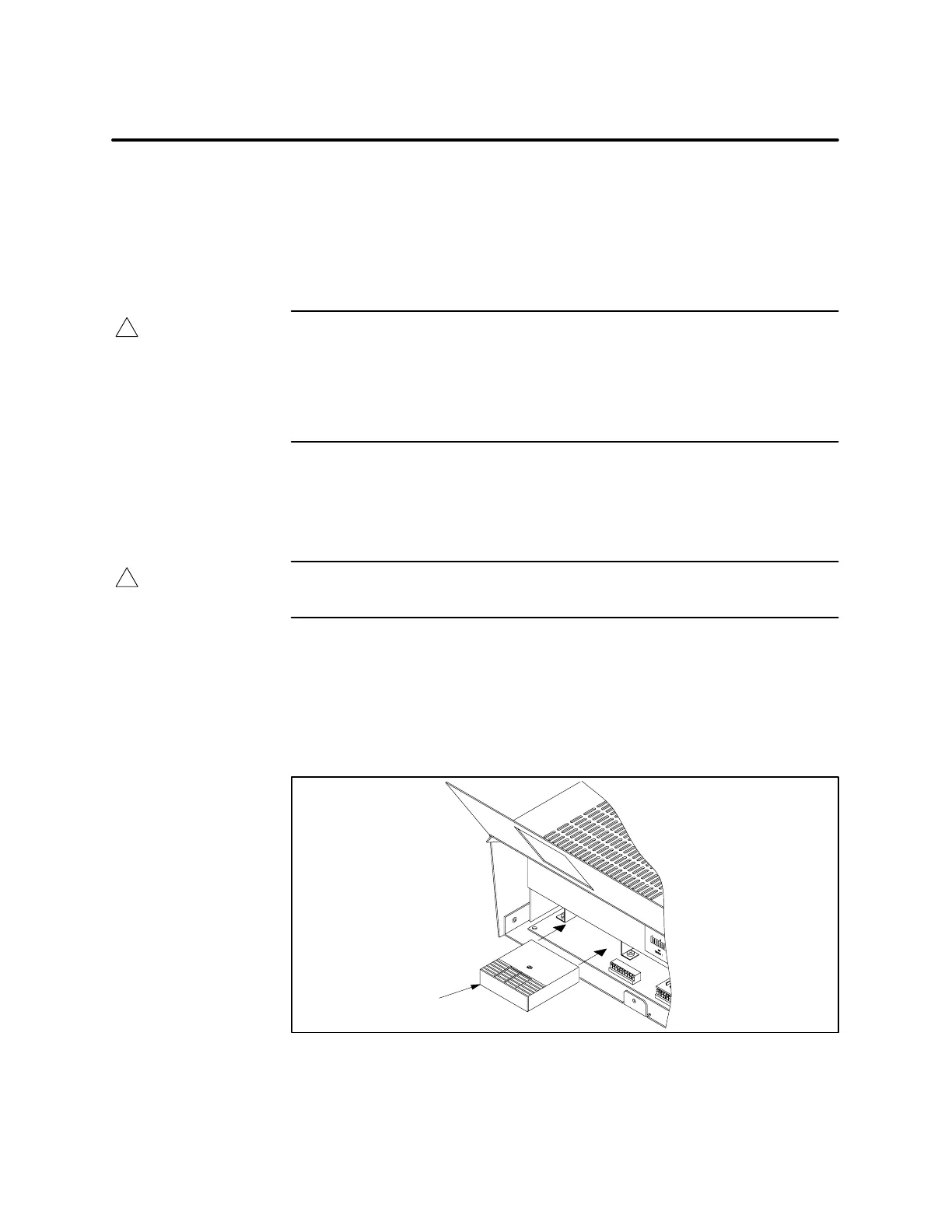

Figure 2-7 Installing the S5 PIM
