TIWAY I Network Communication
3-2
S5 UniLink Adapter Installation and Operation
3.1 Local Line Interface Ports
The S5 UniLink Adapter is available in four models, offering a choice of two
physical interfaces for network communications: Local Line or RS-232-C
interfaces, in different voltage versions. Table 3-1 lists the model numbers,
the type of interface, and the supply voltage for each model.
Table 3-1 S5 UniLink Adapter Models
Model Number Network Port Supply Voltage
PTI:505–7115 Dual Local Line 120 VAC
PTI:505–7116 Dual RS-232C/423 120 VAC
PTI:505–7117 Dual Local Line 240 VAC
PTI:505–7118 Dual RS-232C/423 240 VAC
More information on the media types can be found in the TIWAY I Systems
Manual and in the UNILINK Adapter Installation and Operation Manual.
The Local Line interface to TIWAY I is a female 9-pin D connector. Two
ports are provided (see Figure 3-1) for the following purposes.
• Port 1 is the primary network port.
• Port 2 provides support for redundant media transmission when Ports
1 and 2 are connected to a redundant twisted-pair cable network.
A000654
Port
1
Port
2
Port
3
Port
4
AC
NEUT
AC
LINE
GND
1 2 3 4 5
I/O
RS-232 S5 Interface Port Power Connections
Dual Local Line media ports

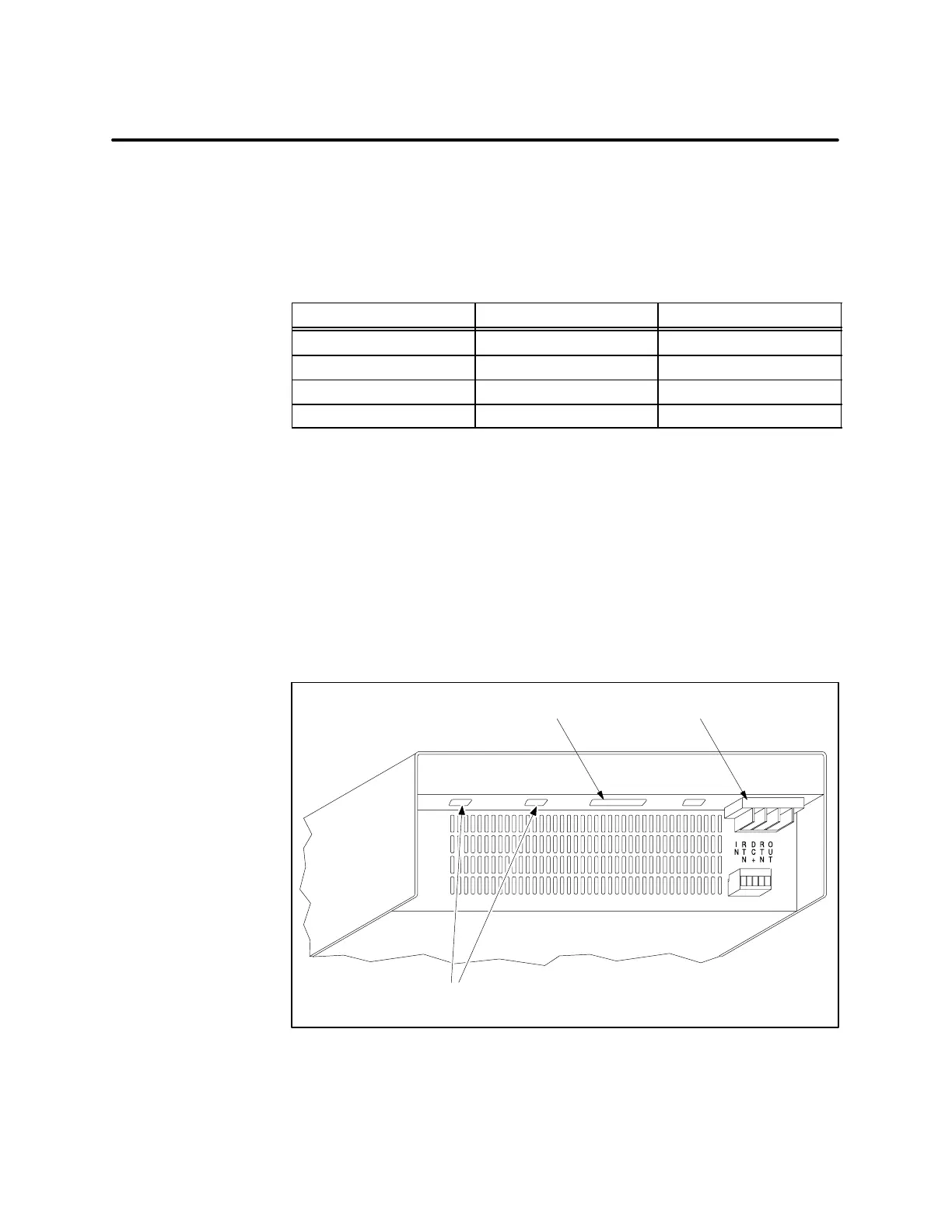

Figure 3-1 Local Line Interface Ports
