5.5 SIMODRIVE POSMO A functions
5-189
 Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
When the brake control is activated, when the status changes from
”ready” to ”operation enabled”, the brake is opened. At the same time,
the pulses are enabled and the axis goes into closed–loop controlled
operation without a traversing task. In the “Positioning” mode (P700 =
2), the “holding controller” (P57) is switched-in with the factory default
setting of P56.2 = 0 (from SW 1.3). In the “speed setpoint” mode
(P700 = 1), it is switched-over to “P gain n-controller standstill” (P54).
In order to give the brake the necessary time to mechanically open, the
drive starts after the brake opening time (P58).
The drive goes into the ”operation enabled” status after the time in P58
has expired.
The brake opening time should be selected, so that after the ”controller
enable” is issued, the speed controller becomes active when the motor
holding brake opens. For all other settings, the control acts against the
brake.
The following applies:
Brake opening time (P58) w Time required to open the holding brake
Speed setpoint
Holding brake
”Controller enable”
t
ÄÄÄÄÄ
ÄÄÄÄÄ
t
t
t
t
P58 (holding brake, brake opening time)
Time
to open the holding brake
Speed controller active
1
0
1
0
1
0
1
0
Output signal
”control external
holding brake”
t
1
0
Holding controller
Ready Transition Operation enabled

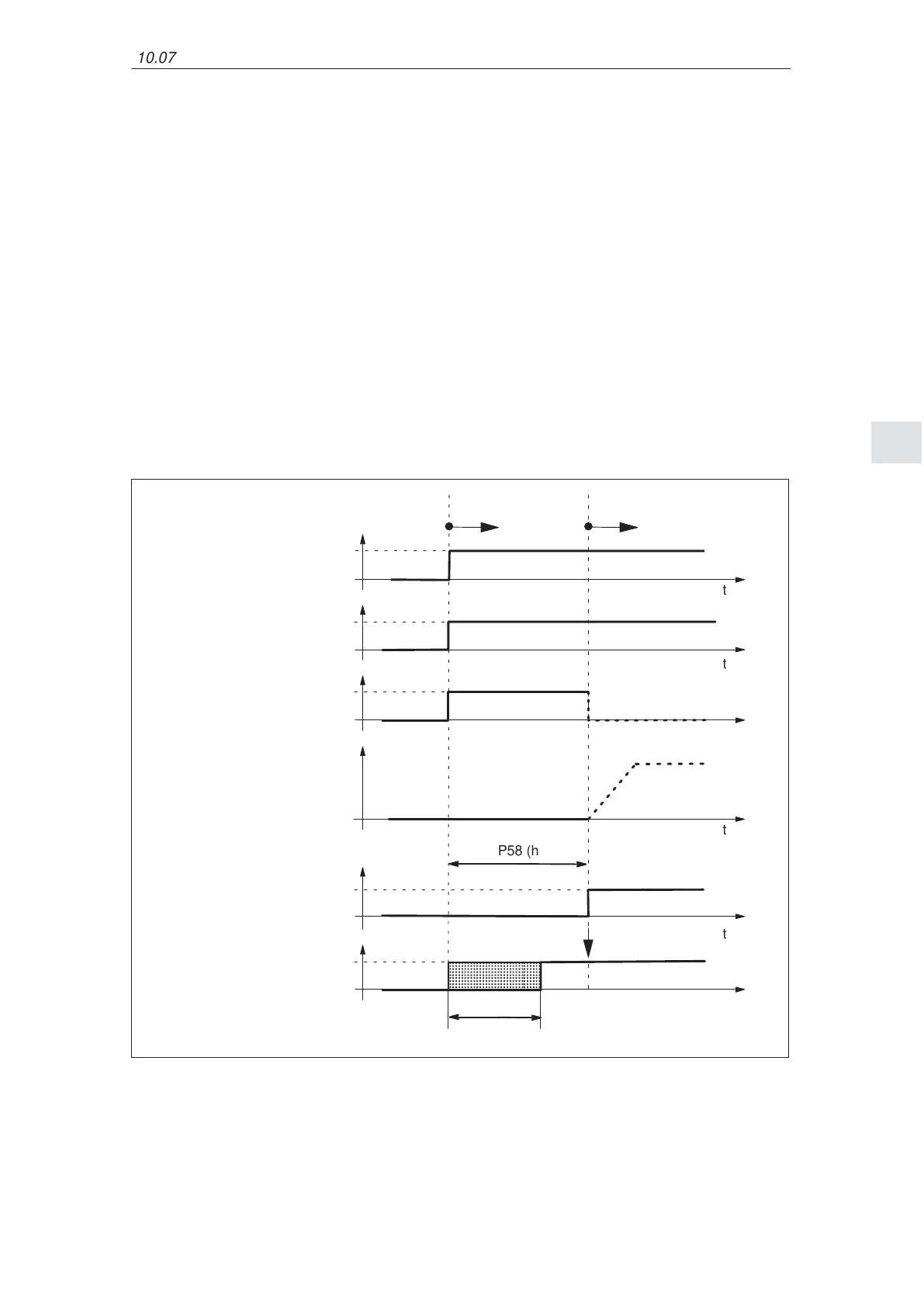

Fig. 5-17 Opening the brake: Behavior when the status changes from ”ready” to ”operation enabled”
Open brake
Objective when
setting the brake
opening time
5 Description of the Functions
02.9904.0110.07
