Siemens SIMODRIVE POSMO A User Manual

5
5.5 SIMODRIVE POSMO A functions
5-193
 Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
ÄÄ
Ä
Motor with integrated
holding brake (optional)
Brake
procedural
control
24 V
0 V
Open/close the holding brake
External holding
brake
Parameter
P31 Function, terminal 1
P32 Function, terminal 2
P56.4 Open holding brake
P56.5 Monitoring, holding brake undervoltage
P56.6 Open the holding brake, also for an external holding brake
P58 Holding brake, brake opening time
P59 Speed, close holding brake
P60 Holding brake, brake delay time
P61 Holding brake, controller inhibit time
Inputs/outputs
P31 = 26 Terminal 1 as input with ”open holding brake” function
P32 = 95 Terminal 2 as output with the ”control external holding brake” function
ÍÍÍÍÍÍÍÍÍÍ
Ä
ÄÄ
Terminal 1
Terminal 2

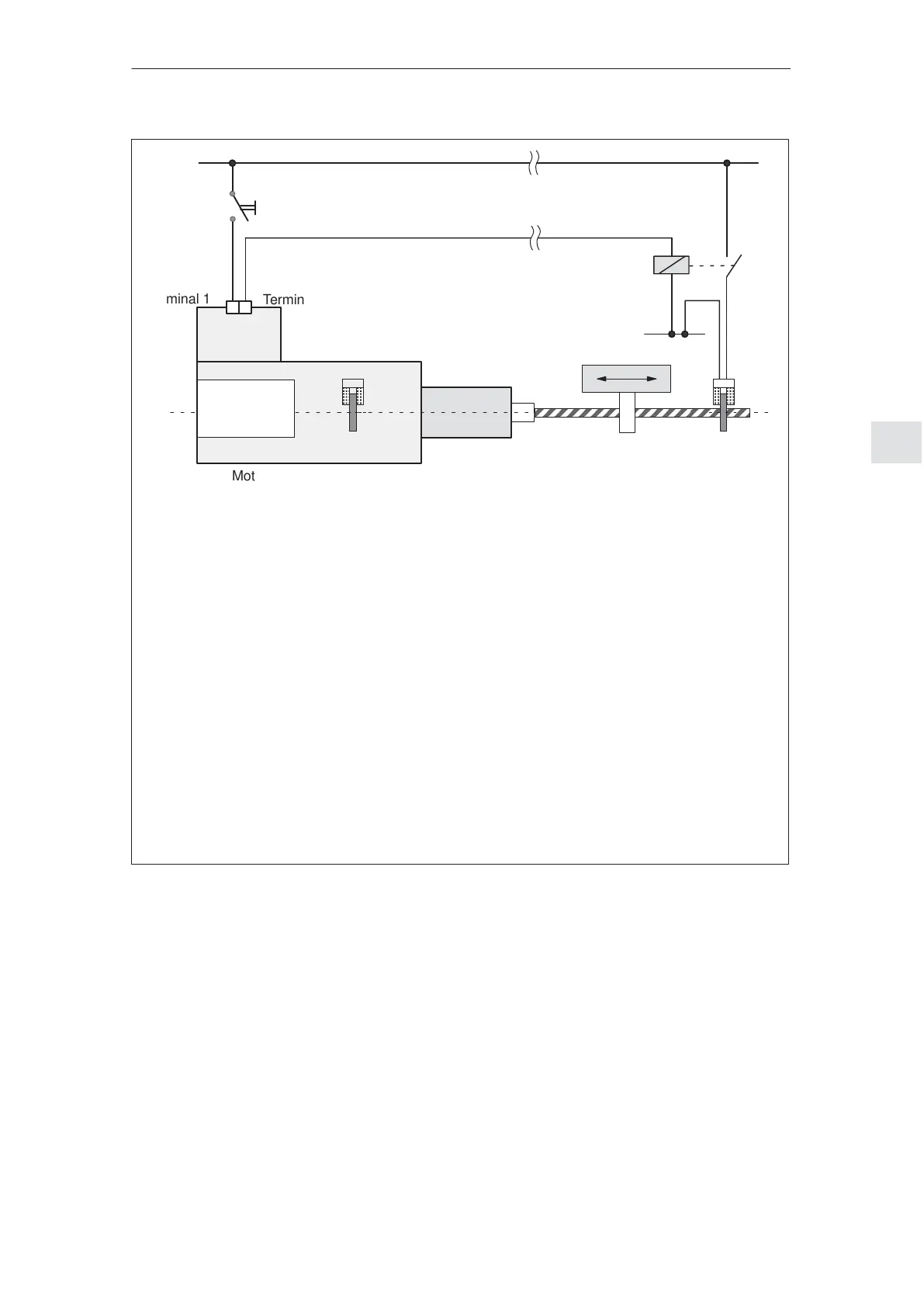

Fig. 5-20 Example: Integrated holding brake – external holding brake
5 Description of the Functions
02.9904.01
