Siemens SIMODRIVE POSMO A User Manual

2
2.4 Mounting SIMODRIVE POSMO A
2-53
E Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
Recommendation for 2–core reeled cable:
S Not of trailing type 6XV1830–0EH10
S Trailing type 6XV1830–3BH10
S 3 x 0.75 mm
2
, with or without shield
––> for the electronics power supply
+
2 x 0.35 mm
2
, with shield ––> for PROFIBUS
not to scale
PROFIBUS
cable
(with
electronics
power supply)
1) Remove cores which are not used
1)
5100
8
6 – 12
Shield
10120
PROFIBUS

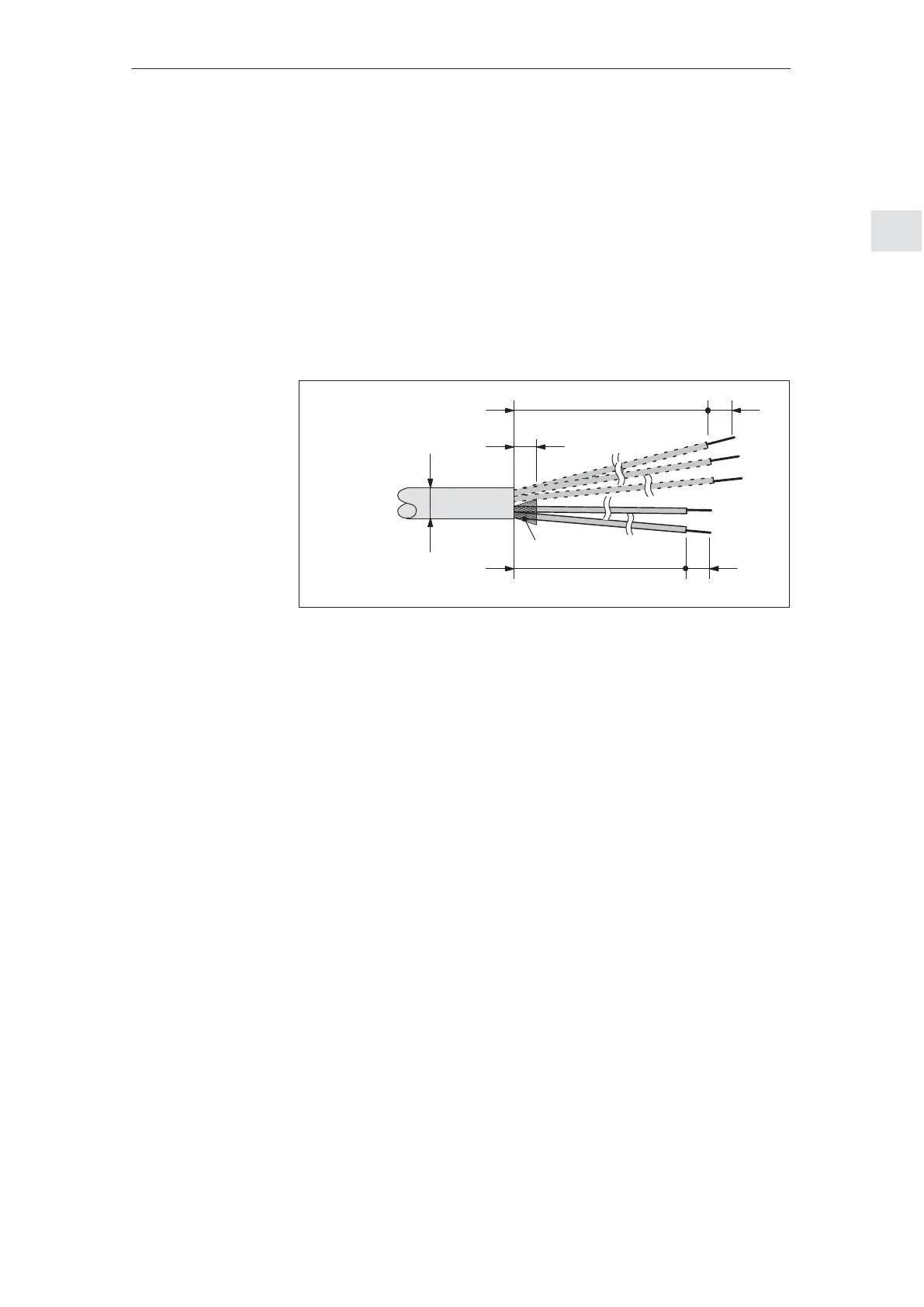

Fig. 2-20 Preparing The PROFIBUS cable with electronics power supply
Recommendation for 5–core reeled cable: 6ES7194–1LY00–0AA0
S 2 x 3 x max. 0.75 mm
2
, with shield, flexible conductor (finely–
stranded)
S Gland:
The dummy plug provided should be replaced by a suitable PG11
gland (e.g.: Pflitsch Company, type PG15152m2x6 – gland assem-
bly PG11/13.5 mounted using a multi–sealing insert for 2 cables
with 6 mm diameter).
Cable for
PROFIBUS
(with electronics
power supply)
Cable for
inputs/outputs
2 Installing and Connecting–Up
02.9908.0408.02
