3.2 Commissioning the DP master
3-82
E Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
For ”SimoCom A”, communications should be set as follows via
PROFIBUS–DP:
S Options – Settings – Communications ––> ”Interface” dialog”
S With ”For ”Go online” connect via” set the following:
––> ”direct connection”, if the coupling is directly established
or
––> ”routed via S7”, if coupled via the MPI interface
Online operation can be directly established to the drive directly via the
fieldbus using the ”Go online” function.
SIMATIC S7–300 (CPU: S7–315–2–DP)
ÄÄ
ÄÄ
”SimoCom A”
parameterizing
and start–up tool
PG/PC
MPI
or
CP 5511
or
CP 5611
or
CP 5613
PROFIBUS–DP
S At the last node (in this case at the left) ––> switch in the terminating resistor (refer to Chapter 2.3.1)
S Set the PROFIBUS node address for the slaves (refer to Chapter 2.3.1)
First
node
(in this case,
the master)
––>
Switch–in
terminating
resistor
or
Setup.exe

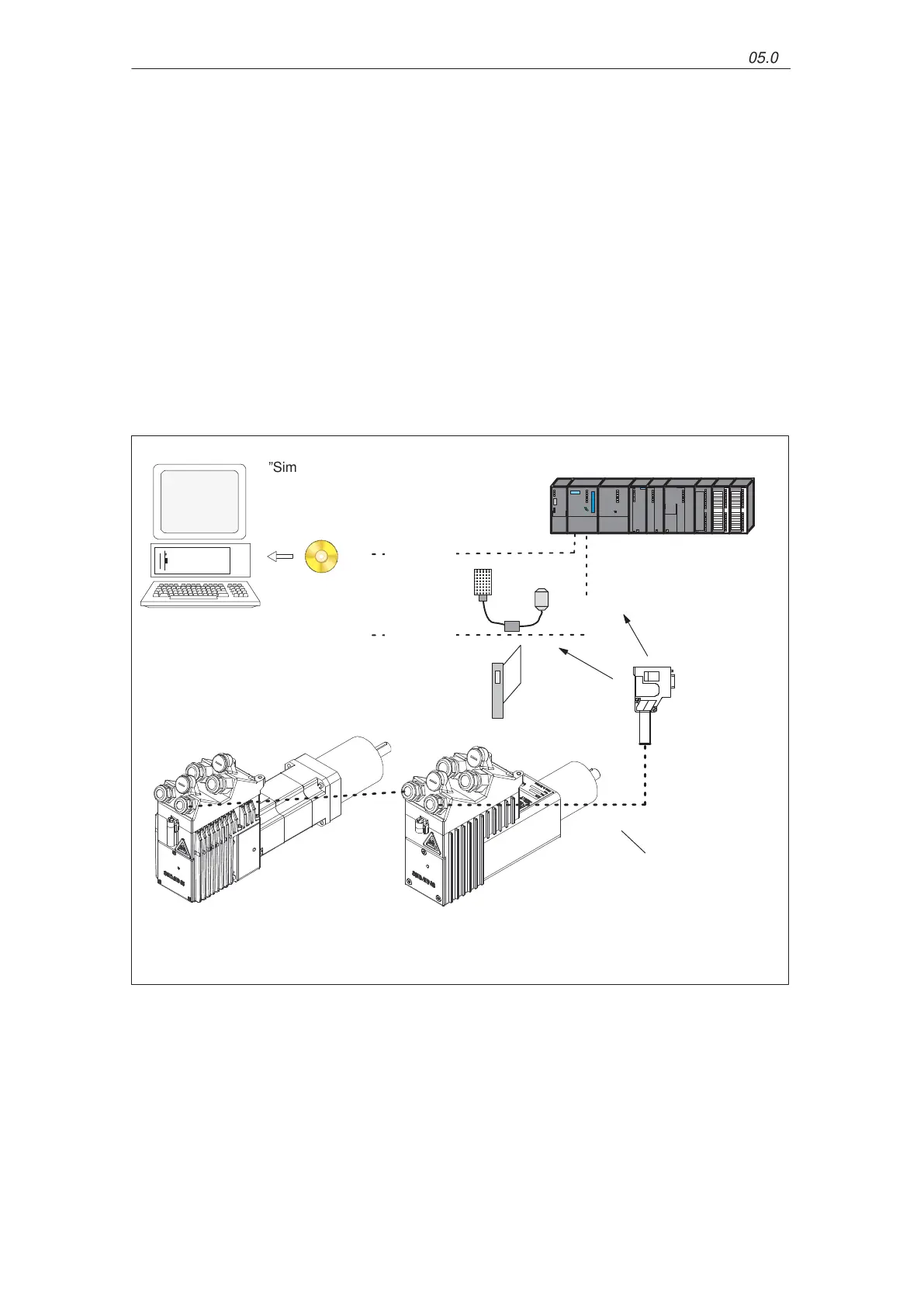

Fig. 3-5 Example for online operation via PROFIBUS: ”SimoCom A” <––> 2 drives
Settings for
”SimoCom A”
Example:
Online operation
via PROFIBUS
