3.3 Commissioning an axis
3-90
E Siemens AG 2013 All Rights Reserved
SIMODRIVE POSMO A User Manual (POS1) – 08/2013 Edition
How are the assumed values represented in Fig. 3-8 in the appropriate
parameters?
POSMO A
Gearboxes
1 : 4.5
Motor
3000 rpm
Gearboxes
1 : 4
Traversing range
0 to 360 degrees
(Modulo 360 degrees)

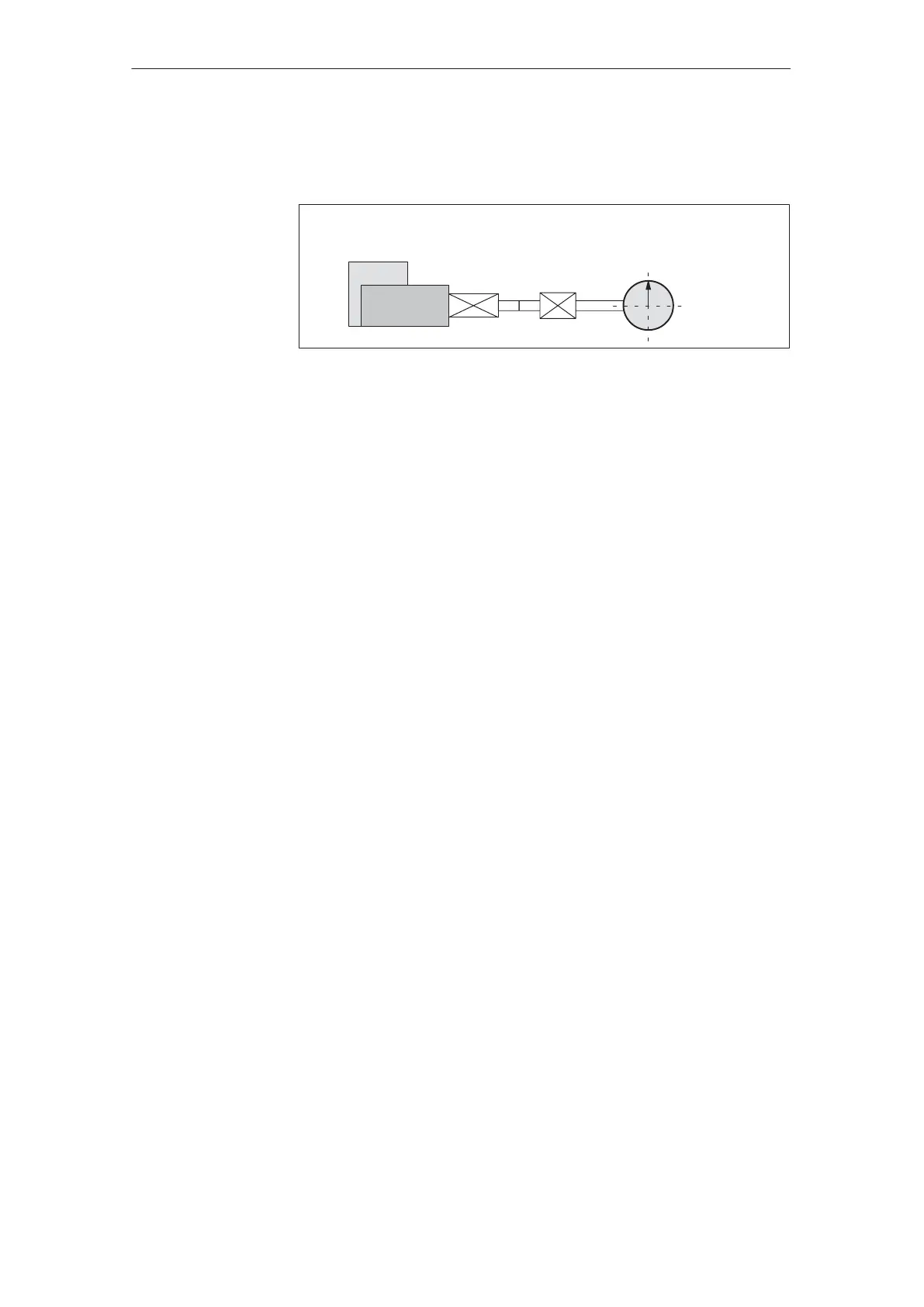

Fig. 3-8 Example: Parameterizing a rotary axis
S P1 = 360 :Axis type, rotary axis, modulo 360 degrees
S P2 = 360 :Travel per gearbox revolution
S P3 = 18 (4.5 S 4) :Gearbox ratio
S P4 = 1 :Dimension units, degrees
S P6 = P7 = 0 :For a rotary axes, deactivate the software
limit switch
S P8 = 3000 :Maximum speed
S P10 = 60000 :Maximum velocity
:v
max
= 3000/min @ 360 degrees/18 = 60,000 degr./min
For a rotary axis, the internal position actual value calculation limits the
maximum modulo value with which a drive can be parameterized.
The following inter–relationship exists:
F in the following is a conversion factor which depends on the dimen-
sion system:
Dimension system inch: F = 25.4
Dimension system mm/degrees: F = 1
S POSMO A 75 W:
– P1 < 2147483647 S P2 / (F S 816 S |P3|)
– P2 > P1 S F S 816 S |P3| / 2147483647
– |P3| < 2147483647 S P2 / (F S 816 S P1)
S POSMO A 300 W:
– P1 < 2147483647 S P2 / (F S 4096 S |P3|)
– P2 > P1 S F S 4096 S |P3| / 2147483647
– |P3| < 2147483647 S P2 / (F S 4096 S P1)
From SW 1.6, the following applies:
When changing P1, P2 or P3, a check is automatically made in the
drive as to whether these three parameter values fulfill the appropriate
formula. If the modified value lies outside the valid range, then the drive
rejects it and the old value is kept.
Example:
Rotary axis,
parameterization
3 Commissioning
02.9904.01
