• Pipe routing
• Regulation of the 󹪞ow rate
Example for interconnecting cooling circuits
The following diagram shows an example of the cooling circuits of 2stators with main and
precision cooler connected in parallel. Due to the chosen positions for the water intake (IN) and
the water outlet (OUT), all cooling circuits contain an even 󹪞ow. As far as cooling is concerned,
it does not make any di󹪜erence in which direction the coolant 󹪞ows through the cooling circuit.


① Main cooler connection
② Precision cooler connection

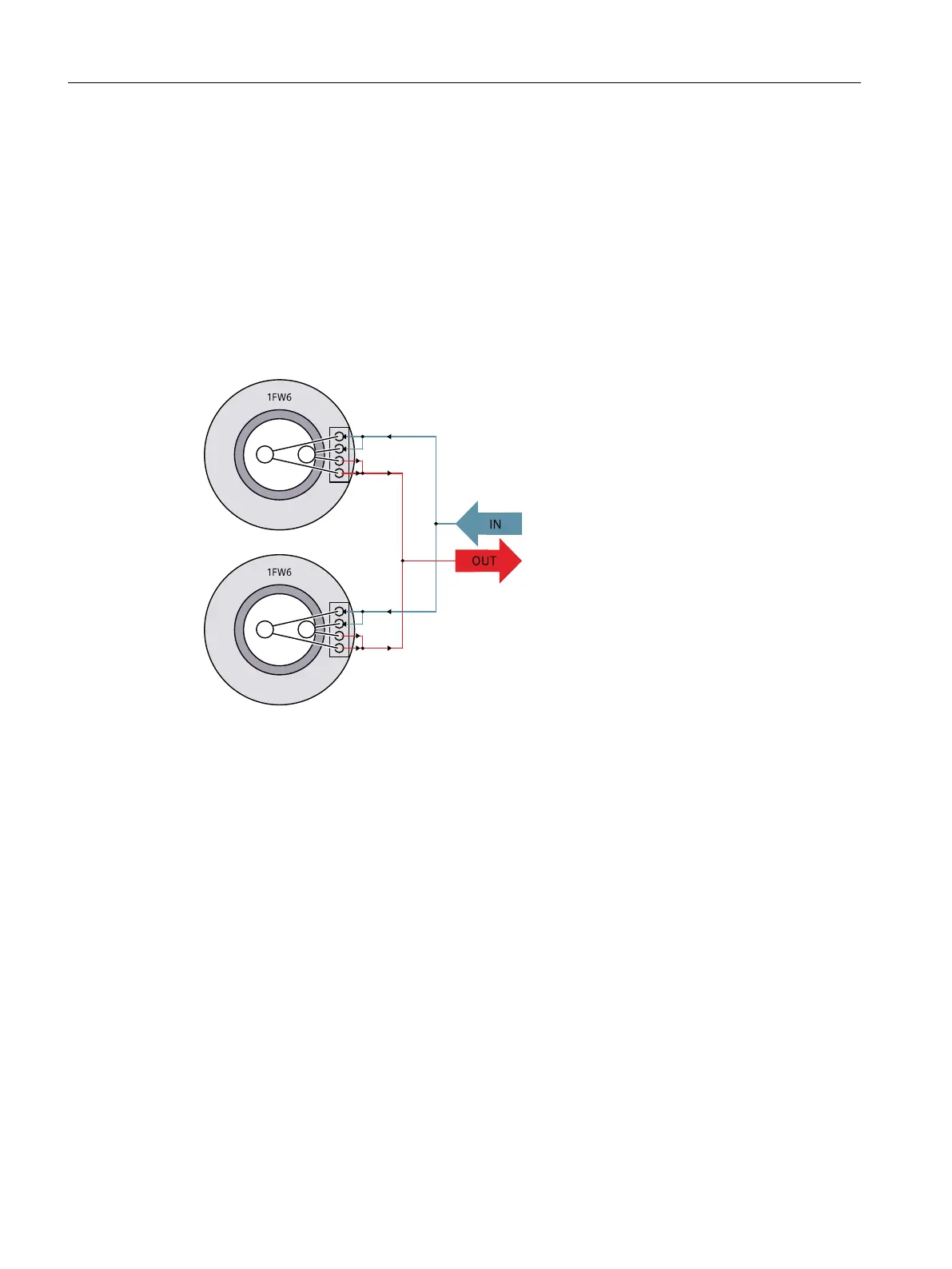

Figure3-8 Parallel connection of cooling circuits (example, schematic diagram)
Description
3.4Design
1FW6 built-in torque motors
46 Operating Instructions, 09/2022, A5E52220812B AA
