Example of a single-axis application
3RZHU
'5,9(&/L4



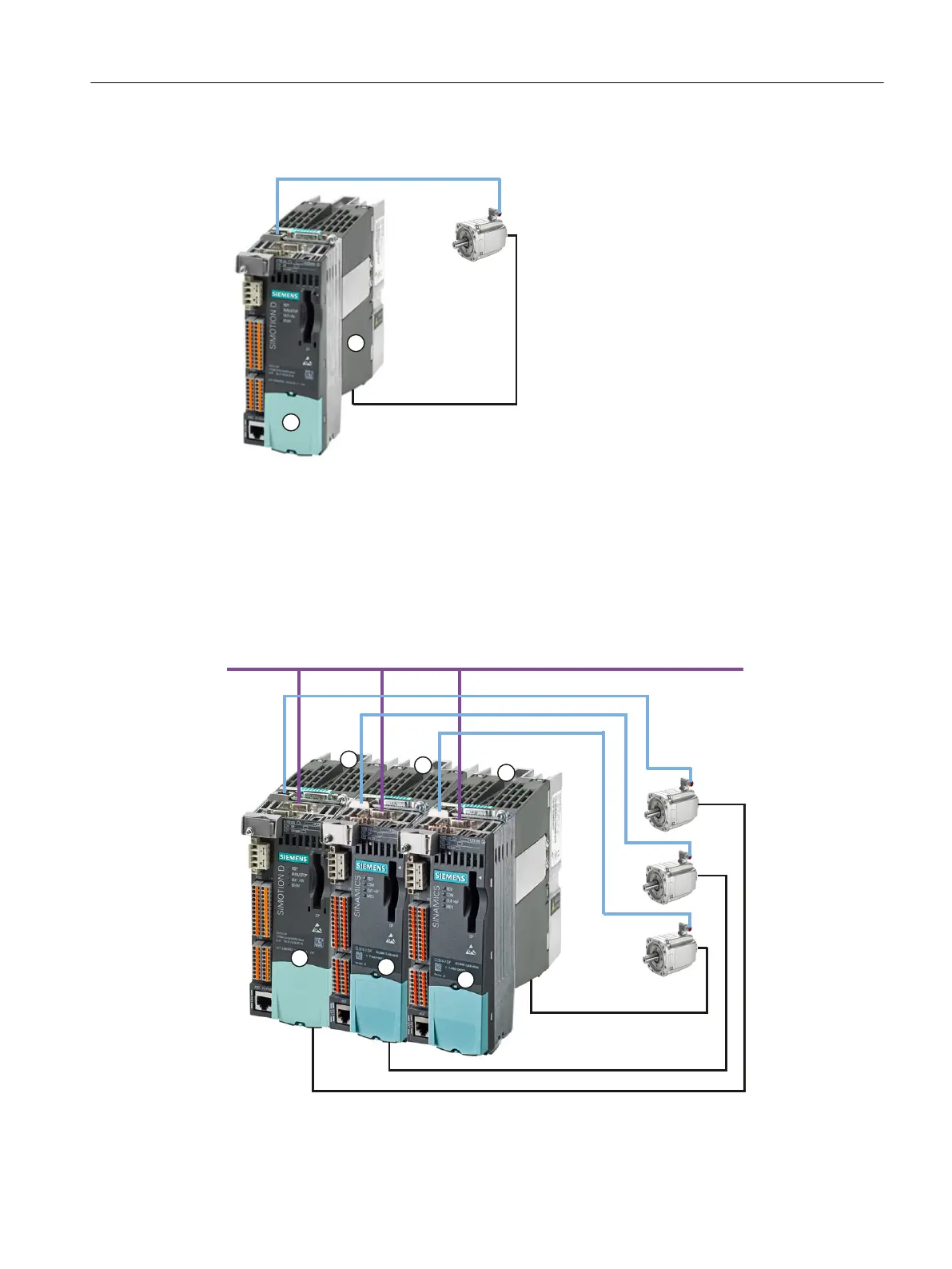

Figure 2-2 Application example with one axis
The example shows a single-axis application, consisting of a SIMOTION D410-2 (Control Unit) ①
that is snapped directly on to the SINAMICS Power Module in blocksize format ②. The motors
are supplied with power via the Power Module. The encoder is connected by means of DRIVE-
CLiQ.
Example of a multi-axis application






3RZHU
352),%86'3
'5,9(&/L4
Figure 2-3 Application example with 3 axes
Description
2.1 System overview
SIMOTION D410-2
Equipment Manual, 07/2021, A5E33446720B 21

Siemens SIMOTION Specifications

General

Power Supply	24 V DC
Interfaces	PROFIBUS, PROFINET, Ethernet
Product type	Control Unit
Series	SIMOTION D
Display Output	VGA
