Position Service mode Meaning
B Downgrade
(Device Update Tool)
SIMOTION D410‑2 Control Units and projects can be upgraded using upgrade data cre‐
ated previously. These upgrade data is generated with the Device Update Tool ("Project
> Start Device Update Tool" menu in SIMOTION SCOUT).
If the upgrade process fails to bring about the desired result, the upgrade can be rejected
by means of the switch position. This will roll the system back to the previous congu‐
ration.
D Backup of diagnostic da‐
ta and non-volatile SI‐
MOTION data
The diagnostic data and non-volatile SIMOTION data can be backed up in STOP, STOPU,
and RUN state. The advantage of backing up in RUN state is the availability of enhanced
diagnostic information (via HTML pages) and TO alarm information.
Note
Alternatively, diagnostic data and non-volatile SIMOTION data can also be backed up via the
DIAG button. See Section DIAG button (Page 43).
3.2.2 Mode selector switch
Layout
SIMOTION D410-2 provides a mode switch (PLC) behind the blanking cover in the lower area of
the front panel.

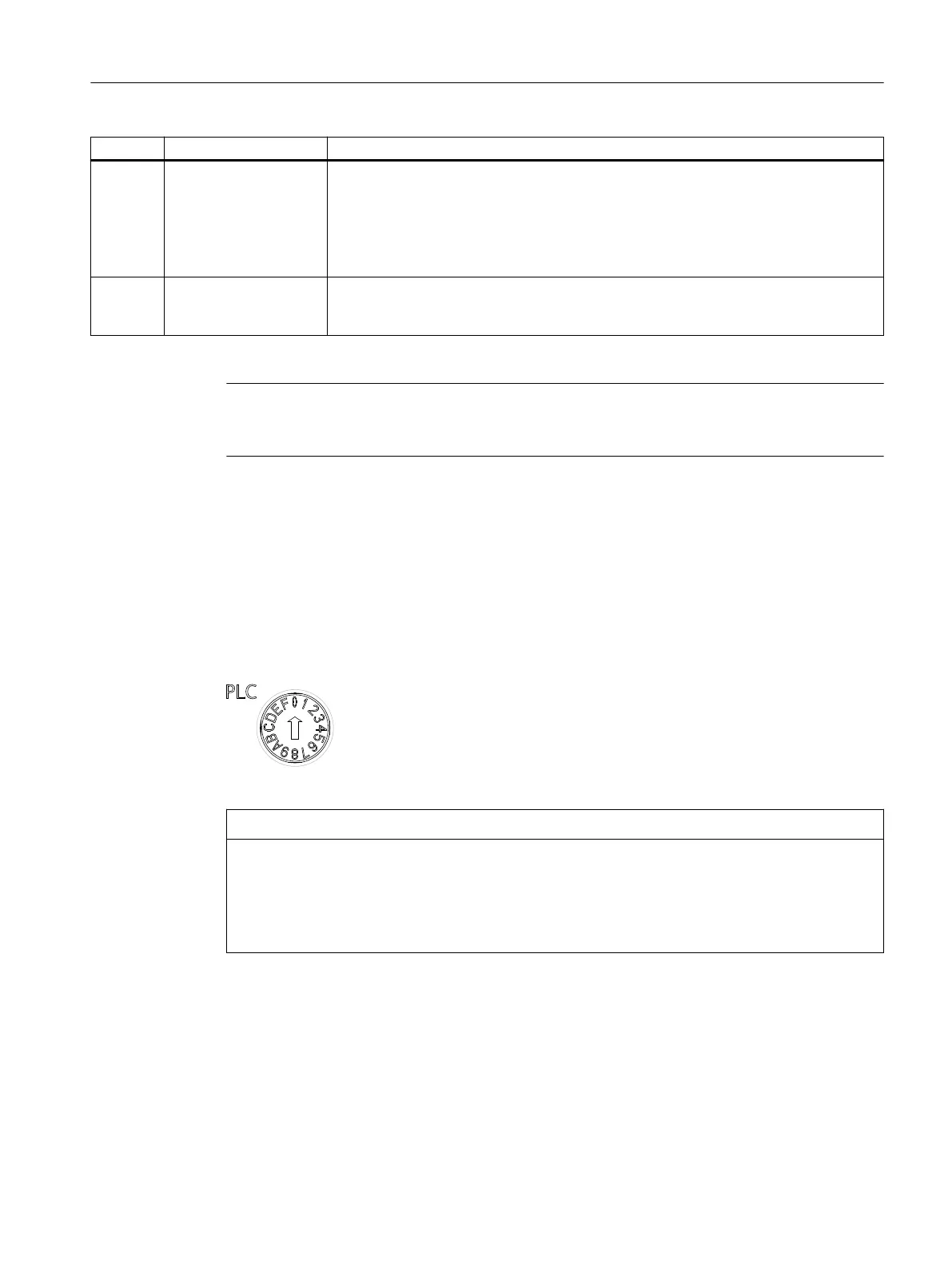

Figure 3-3 Mode switch, switch position "0"
NOTICE
Damage from electrostatic discharge
The rotary switch can be destroyed by static electricity.
Operate the rotary switch only with an insulated screwdriver.
Comply with the ESD rules.
Operator control (hardware)
3.2 Operator controls
SIMOTION D410-2
Equipment Manual, 07/2021, A5E33446720B 41
