MAC addresses

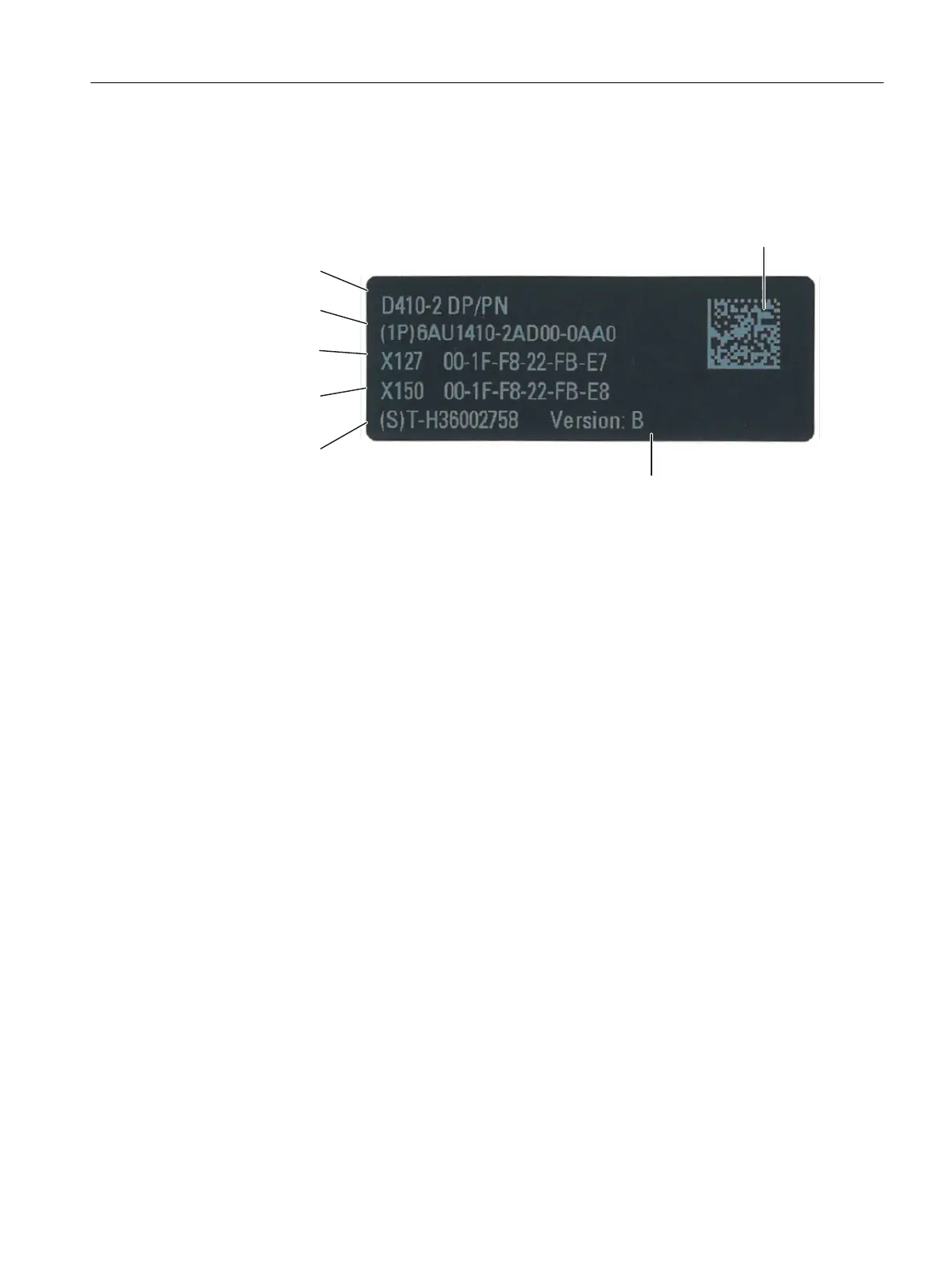

A second rating plate for the MAC address of the Ethernet interface and the PROFINET interface
(D410‑2 DP/PN only) is attached to the front of the device.
+:SURGXFWYHUVLRQ
0RGXOHGHVLJQDWLRQ
$UWLFOHQXPEHU
(WKHUQHWLQWHUIDFH
0$&DGGUHVV;
352),1(7,2LQWHUIDFH
0$&DGGUHVV;
''331RQO\
6HULDOQXPEHU
'DWDPDWUL[FRGH
Figure 2-9 SIMOTION D410‑2 DP/PN MAC addresses
Depending on the rating plate, the HW version may be designated as "Version" or "FS" (Function
State).
Industry Online Support app
With our app, you have access to more than 300,000 documents.
Scan the data matrix code and display all the technical information on this product incl. graphic
data (CAx data).
Link to the app: https://support.industry.siemens.com/sc/en/en/sc/2067
2.7 CompactFlash card
Properties
The CF card is mandatory for operation of the SIMOTION D410‑2. The CF card must be ordered
as a separate component; it is not included in the SIMOTION D410‑2 scope of delivery.
The SIMOTION Kernel (SIMOTION D410-2 rmware) and the software used to control the drives
(SINAMICS rmware) are contained on the CF card.
The CF card is used for:
• Backing up the technology packages and user data (programs, conguration data, parameter
assignments)
• Update (e.g. SIMOTION rmware update)
The licenses for the technology functions are linked to the serial number of the CF card. This
means the CF card can be inserted in dierent SIMOTION D410‑2s without having to change the
licenses.
Description
2.7 CompactFlash card
SIMOTION D410-2
Equipment Manual, 07/2021, A5E33446720B 33
