Siemens SINAMICS G120C PN User Manual

8.4.9 Adjusting characteristics for analog output
Function description

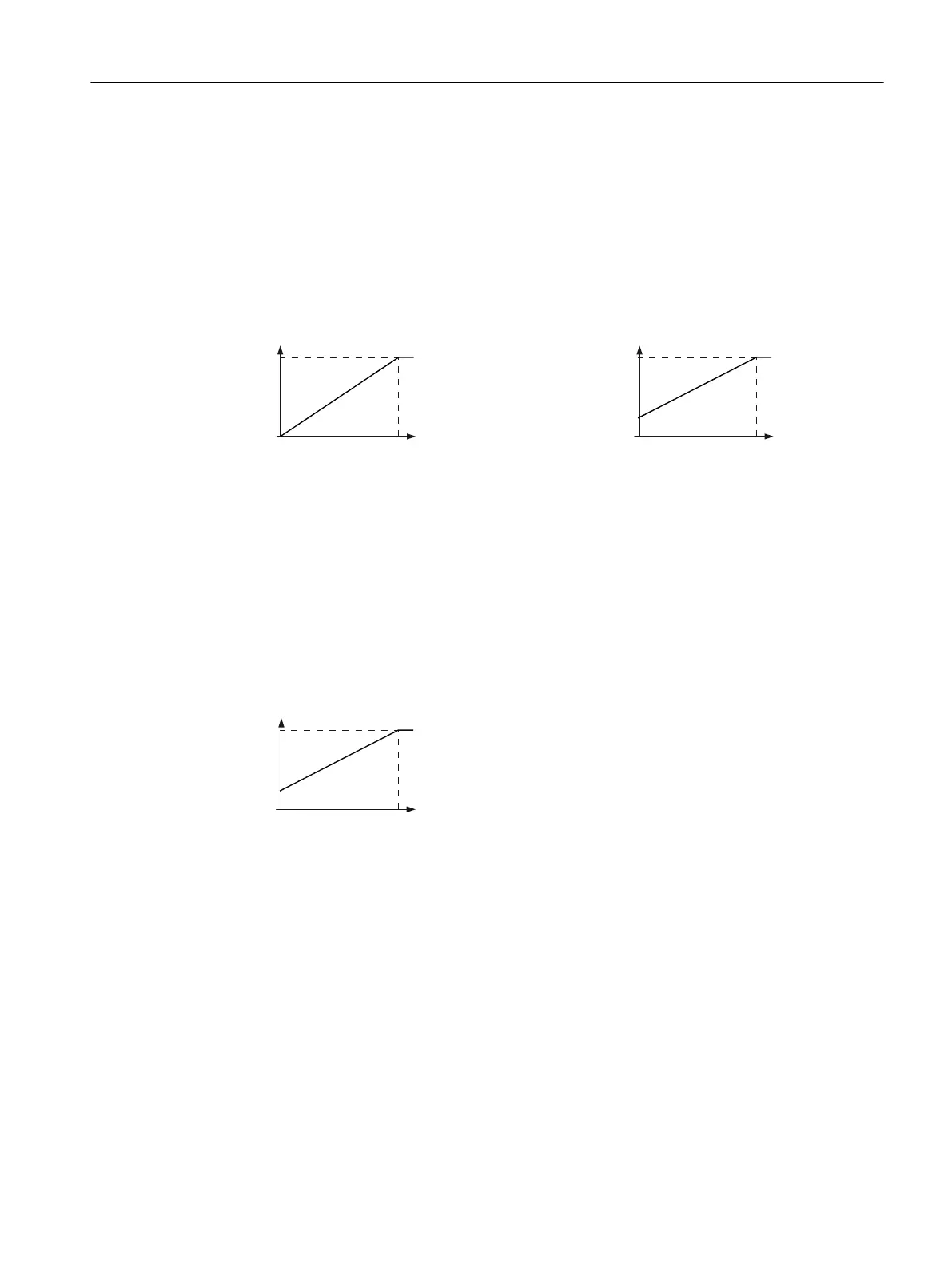

If you change the analog output type, then the converter automatically selects the appropriate
scaling of the analog output. The linear scaling characteristic is de󹪝ned using two points (p0777,
p0778) and (p0779, p0780).
&XUUHQWRXWSXWP$P$9ROWDJHRXWSXW99
S S 

P$

9
[ 
S
\ 
S
[ 
S
\ 
S
[ 
S
\ 
S
[ 
S
\ 
S
Parameters p0777…p0780 are assigned to an analog output via their index, e.g. parameters
p0777[0]…p0770[0] belong to analog output0.
You must de󹪝ne your own characteristic if none of the default types match your particular
application.
Example
Via analog output 0, the converter should convert a signal in the value range 0% … 100% into
an output signal 6mA…12mA.
&XUUHQWRXWSXWP$P$

P$
[ 
S
\ 
S
[ 
S
\ 
S
Procedure
1. Set p0776[0]=2
This de󹪝nes analog output0 as a current output.
2. Set p0777[0] = 0.0 (x1)
3. Set p0778[0] = 6.0 (y1)
4. Set p0779[0] = 100.0 (x2)
5. Set p0780[0] = 12.0 (y2)
The characteristic for the application example is set.
❒
Advanced commissioning
8.4Adapt the default setting of the terminal strip
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 199

Siemens SINAMICS G120C PN Specifications

General

Power range	0.55 kW to 132 kW
Control type	Vector control, V/f control
Protection class	IP20
Ambient temperature range	-10 °C to +50 °C
Product type designation	SINAMICS G120C
Integrated Safety	STO (Safe Torque Off)
Operating Temperature	-10 °C to +50 °C
Storage temperature range	-40 °C to +70 °C
Communication interfaces	PROFINET
Output voltage range	0 V to input voltage
Overload Capacity	150% for 60 s
Relative humidity	5% to 95%, non-condensing
Altitude	Up to 2000 m without derating
