8.17.3 Specifying the setpoint via the 󹪝eldbus

Function description

0DLQVHWSRLQW

6FDOLQJ

6XSSOHPHQWDU\VHWSRLQW

5HFHLYHZRUG3='

5HFHLYHZRUG3='

S

S

S

U

U

S

U>@



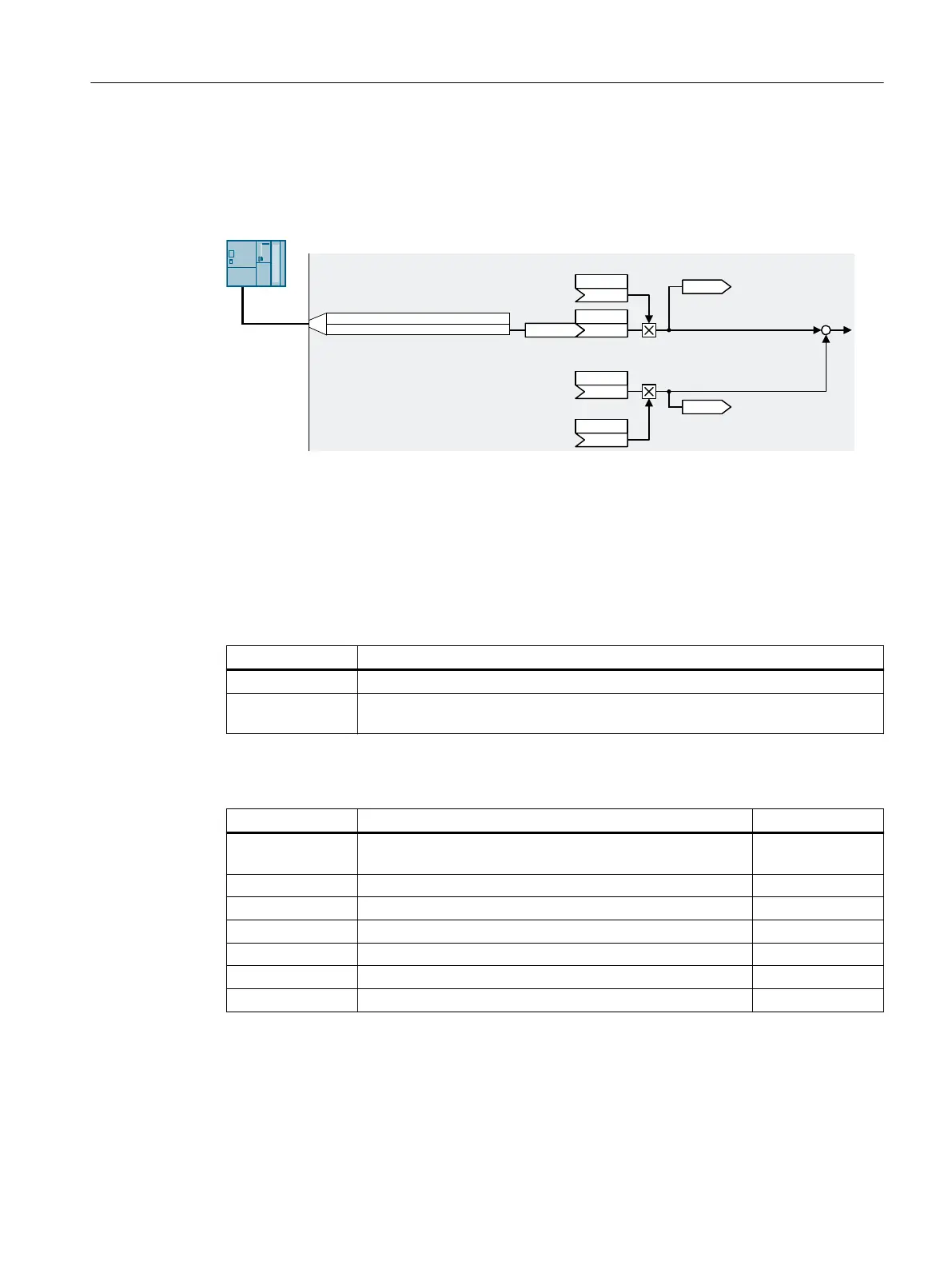

Figure8-34 Fieldbus as setpoint source

In the quick commissioning, you de󹪝ne the preassignment for the converter interfaces.

Depending on what has been preassigned, after quick commissioning, the receive word

PZD02 can be interconnected with the main setpoint.

Example

Setting with receive word PZD02 as setpoint source:

Parameter Description

p1070 = 2050[1] Interconnects the main setpoint with the receive word PZD02 from the 󹪝eldbus.

p1075 = 2050[1] Interconnects the supplementary setpoint with receive word PZD02 from the 󹪝eld‐

bus.

Parameters

Number Name Factory setting

p1070[C] CI: Main setpoint Dependent on the

converter

p1071[C] CI: Main setpoint scaling 1

r1073 CO: Main setpoint active - rpm

p1075[C] CI: Supplementary setpoint 0

p1076[C] CI: Supplementary setpoint scaling 1

r1077 CO: Supplementary setpoint e󹪜ective - rpm

r2050[0…11] CO: PROFIdrive PZD receive word -

Advanced commissioning

8.17Setpoints

SINAMICS G120C Converters

Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 273
