5.1 Custom Hand mode
Intelligent Operator Panel (IOP)
Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF
51
6.

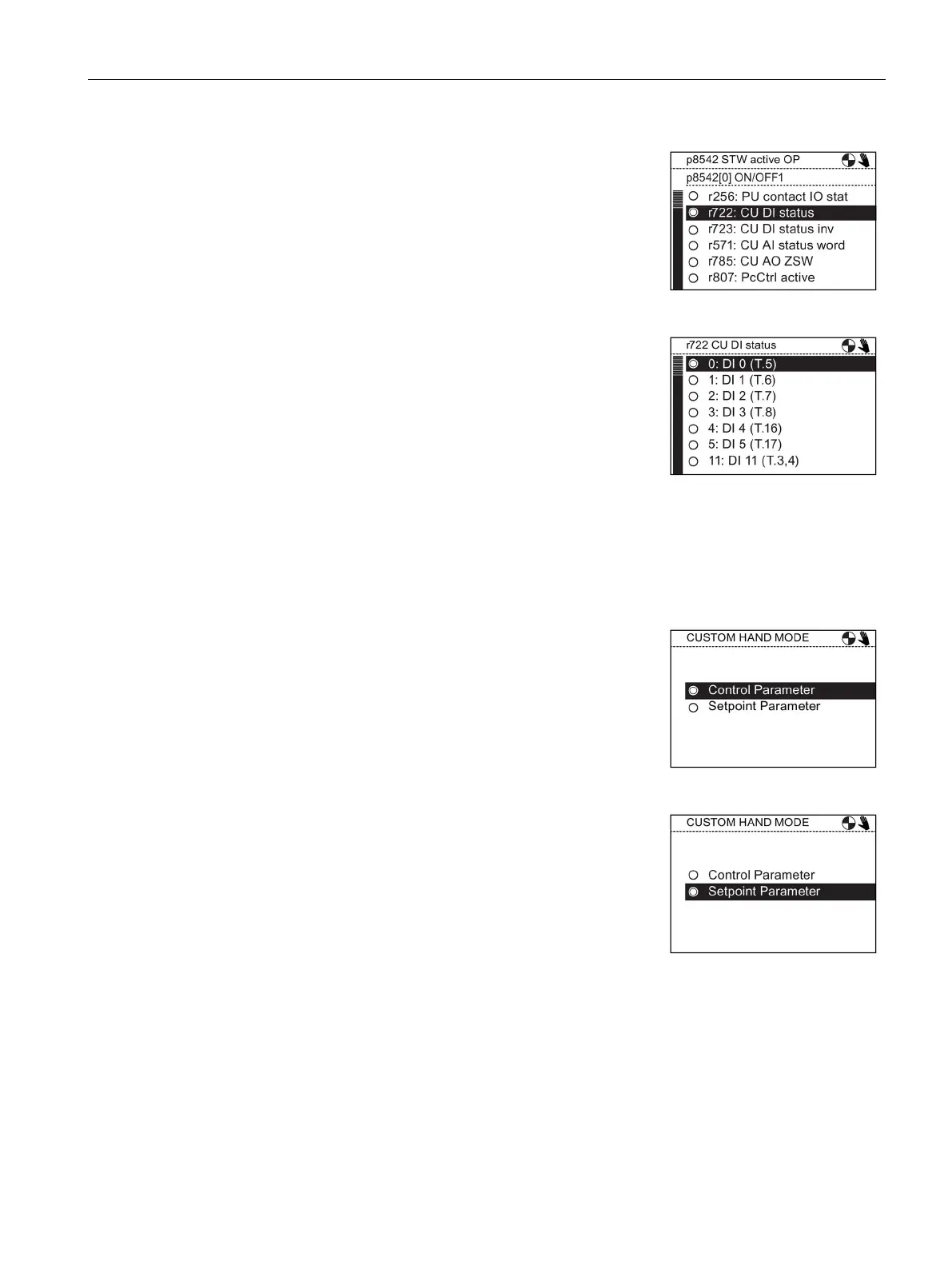

Select the source of the command signal. In this example,
a dig
ital input will be used.
7.
Select the actual digital input that will recei
ve the
co
mmand signal. In this example, it is digital input 0 (DI0).
Once the command signal input has been selected, the
IOP will return to the Status Word selection screen. This
allows the user to configure any other command signals
that may be required.
8.
Setup any additional command signal inputs, or press
ESC
twice to return to the "
Custom Hand Mode
" screen.
9.
Select "Setpoint Parameter
" to setup the setpoint signal
and value.
