6.6 Extras
Intelligent Operator Panel (IOP)
Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF
75
7.

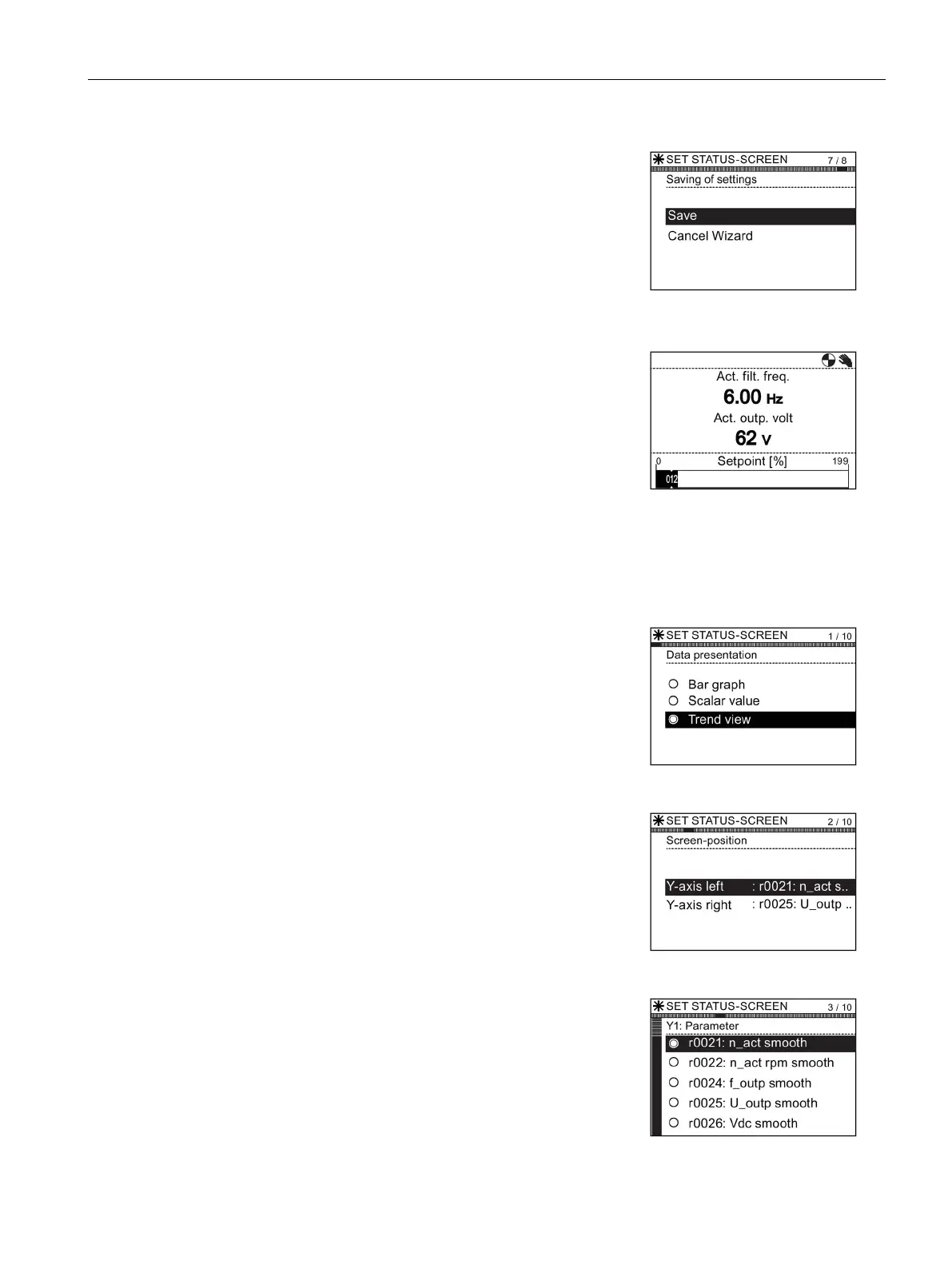

The option to save the settings is displayed.
Select "Save" to save the settings, or select "Cancel
Wizard" to exit the Wizard.
If "Cancel Wizard" is selected, no changes will be
saved and the Status Screen will remain unchanged
from any previously set configuration.
If "Save" has been selected, all changes will be
saved.
8.
When the save has completed successfully, the
screen will automatically ret
urn to the status screen
and display the new status screen as configured in
the wizard.
Trend view
The Trend view allows the user to configure real-time monitoring of the Inverter and display
the desired values in the form of a graph. To setup the Trend view, the following steps
should be performed.
1.
From the Set Status
-Screen menu select "Trend
View".
2.
Slect the screen position of the displayed values.
3.
Select the para
meter values that should be displayed
on the status screen.
